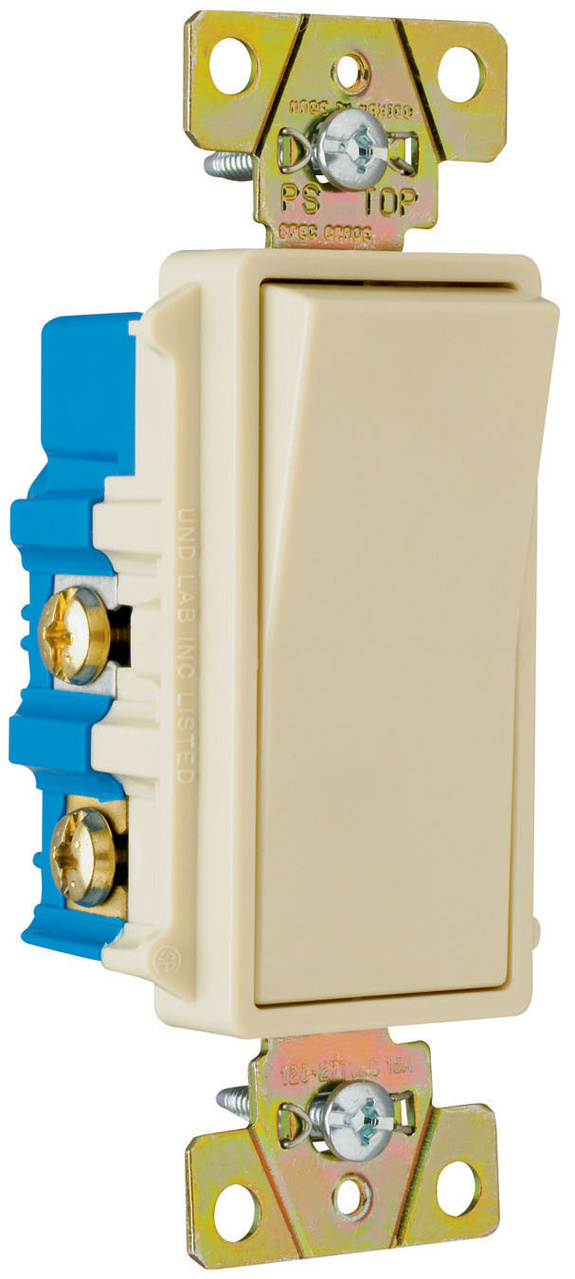

15A 120V/277V Specification Grade Decorator Switch, Ivory

4-way, Back and Side-Wire, Decorator Switch, 15A, 120/277V

Color Ivory

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Impact-resistant polycarb back body and frame.
Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
Terminals made of high conductivity brass and serrated for maximum wire gripping.
Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
Integral auto-ground clip for positive ground to metal boxes.
Tri-drive ground, terminal, and mounting screws.
All terminal screws backed out, ready-to-install.
For covering patents, see

General Info

Dimensions

Listing Agencies / 3rd Party Agencies

Technical Information

Amperage	15 A
Connection Location	Back and Side
Requires Neutral Wire	No
Wire Connection Type	Screw Terminals
Indoor/Outdoor	Indoor
Load Rating	15 A @ 120/277 VAC
Load Type	CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
Mounting Type	Wall Box
Number of Gangs	1
Number of Poles	4-Way
Operating Temperature	-20°-60°C, -4°-140°F
Operating Temperature Max	140 °F
Operating Temperature Min	-4 °F
Horsepower Rating	1/2 HP @ 120 VAC, 2 HP @ 240 VAC
Terminal Accommodation	#14 AWG - #10 AWG
Voltage	120 VAC, 277 VAC
