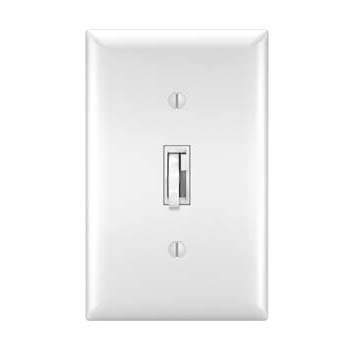

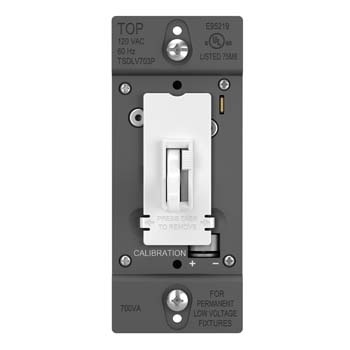

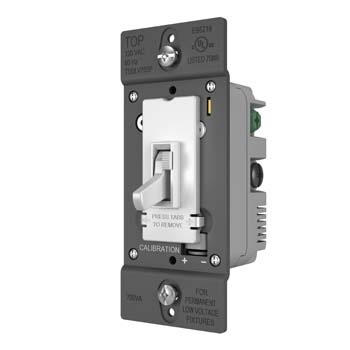

Discontinued - Toggle Slide Dimmer Low Voltage Single Pole/3-Way, 700VA, TRI

TSDLV703PTC Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 29ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Replaced by  TSDLV703PW, TSD703PTUW

700 VA, Preset, Single Pole/3-Way Toggle Slide Dimmer
Color Tri Color (White, Ivory, Light Almond)
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Matches appearance of standard Pass & Seymour toggle switch
  • All models are Single Pole/3-Way capable

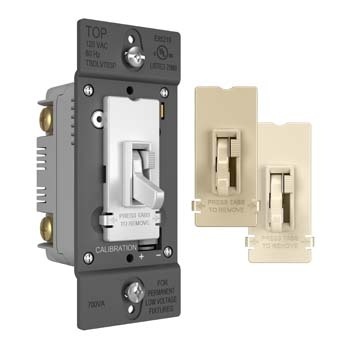

  • Interchangeable face covers are available in seven different colors
  • Highest wattage rating
  • Lifetime warranty
Specifications

Specifications

General Info
Color Ivory, Light Almond, White
Product Series Trademaster
Material Steel, Thermoplastic
Finish Gloss
Application Sector Residential
Product Line Pass & Seymour
Country Of Origin China
Replaced by Part Number  TSDLV703PW, TSD703PTUW
Features Color Change Kit, Low-End Trim (Dim Range)
Number of Switches 1
Switch Type Slider, Toggle
Warranty Type Limited Lifetime Warranty
UPC Number 785007216165
Dimensions
Product Depth US 1.4 in
Product Height US 4.19 in
Product Width US 2.5 in
Technical Information
Requires Neutral Wire No

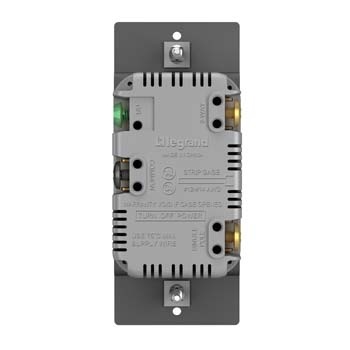

Wire Connection Type Screw Terminals
Dimming Compatibility Forward Phase
Frequency Rating 60 Hz
Indoor/Outdoor Indoor
Load Rating 120V 700VA (MLV - Halogen), 120V 700VA (MLV - Incandescent)
Load Type Halogen, Incandescent
Mounting Type Wall Box
Number of Poles Single Pole 3-Way
Preset Yes
Voltage 120 VAC
Wire Size #14 - #10 AWG
