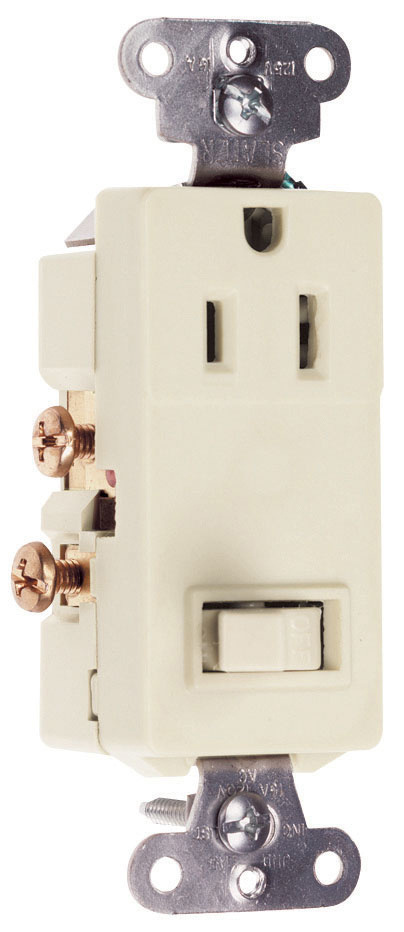

Discontinued - 15A, 120/125V Decorator Combination Single-Pole Switch and Single Receptacle, Light Almond | Sub 691TRLA

Replaced by 691TRLA

Our standard Pass & Seymour combination switches allow you to add lights to any room in your home without having to add or replace wall boxes.

Color Light Almond

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Easily accessible break-off separate or common feed.
Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
Side wire #12 and #14 AWG.
Two devices fit into the space of one.
Grounding combination devices meet NEC Requirements.
Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.

Specifications

General Info

Type	Combination
Application Sector	Commercial, Residential
Product Line	Pass & Seymour
Country Of Origin	Mexico
Replaced by Part Number	691TRLA
Standard	UL20, UL498
UPC Number	785007191158

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	140597
cULus Listed	Yes

Technical Information

Amperage	15 A
Actuator	Toggle
Connection	Side Wire
Contact Configuration	N-O
Contact Rating	120/125 VAC, 15 Amp
Environmental Conditions	Flammability: UL94 V2
Number of Poles	Single Pole
Operating Cycles	30000

Resources

The bracket for this has holes for the plate but the holes are not threaded and are therefore too small to receive a standard 6-32 screw. How can you attach the plate? Never seen a bracket that you couldn't screw the plate into.

Asked by: Starfleet

The strap should have threaded screw holes for attaching the wallplate. If it does not, I would return it to place of purchase for a new one or contact Pas & Seymour for a replacement. Pass & Seymour products 1.800.223-4185 opt 1 Mon - Fri: 8am - 8pm EST (excluding holidays) Email Us - tech.support@legrand.us

Answered by: Legrand Technical Support

Date published: 2019-02-19
