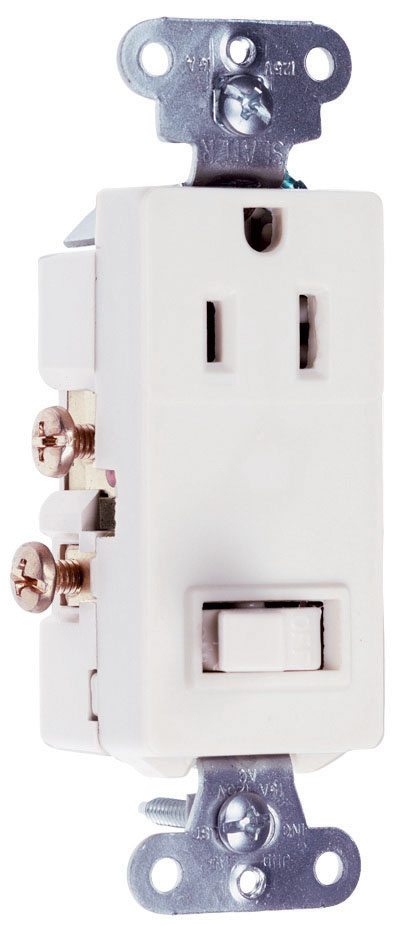

15A, 120/125V Decorator Combination Single-Pole Switch & Single Receptacle, White

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 27ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Our standard Pass & Seymour combination switches allow you to add lights to any room in your home without having to add or replace wall boxes.
Color White

In Stock

Features

  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.

Specifications

General Info
Color White
UPC Number 785007006872
Country Of Origin Mexico
Product Line Pass & Seymour
Application Sector Residential/Commercial
Type Combination
Standard UL20, UL498
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
cULus ListingNumber  140597
Technical Information
Number of Poles Single Pole
Voltage 120 V
Actuator Toggle
Contact Configuration N-O
Connection Side wire
Contact Rating 15 Amp, 120/125 VAC
Action SP & Recptacle
Environmental Conditions Flammability: UL94 V2
Operating Cycles 30000

Resources

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 8ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The bracket for this has holes for the plate but the holes are not threaded and are therefore too small to receive a standard 6-32 screw. How can you attach the plate? Never seen a bracket that you couldn't screw the plate into.

Asked by: Starfleet
The strap should have threaded screw holes for attaching the wallplate. If it does not, I would return it to place of purchase for a new one or contact Pas & Seymour for a replacement. Pass & Seymour products 1.800.223-4185 opt 1 Mon - Fri: 8am - 8pm EST (excluding holidays) Email Us - tech.support@legrand.us
Answered by: Legrand Technical Support
Date published: 2019-02-19
