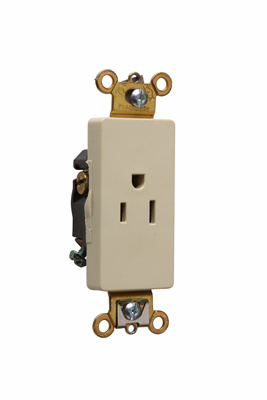

Heavy-Duty Decorator Spec Grade Single Receptacles, Back & Side Wire, 15A, 125V, Ivory

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 396ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Heavy-Duty Decorator Spec Grade Single Receptacle Back & Side Wire 15amp 125volt Ivory
Color Ivory
WHERE TO BUY

Features

  • Corrosion-resistant, plated wraparound steel strap locked into assembly to prohibit strap from bending away from body.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Side and internal screw-pressure-plateback wire accepts #14 : #10 AWG solid or stranded wire.
  • All devices fit standard #26 opening wall plate.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info
Color Ivory
UPC Number 785007784671
Country Of Origin Mexico
Product Line Pass & Seymour
Application Sector Commercial
Standard UL498, cUL CSA
Listing Agencies / 3rd Party Agencies
cUL Listed  Yes
cUL ListingNumber  140596
Technical Information
Number of Poles Double Pole
Voltage 125 V
Connection Back and side wire
Dielectric Strength Withstands 2000V minimum
Temperature Rating Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Wire Size #14 - #10
Number of Wires 3
Environmental Conditions Flammability: UL94 V2
