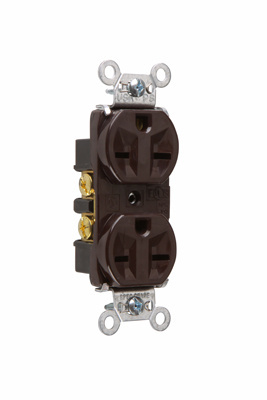

Heavy-Duty Spec Grade Receptacles, Back & Side Wire, 15A, 250V, Brown

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 38ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 15amp 250volt Ivory
Color Brown

In Stock

Features

  • Heavy-duty, brass strap for added strength and ground conductivity.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • High strength nylon face.
  • Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
  • Eight back wire holes.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info
Color Brown
UPC Number 785007566208
Country Of Origin Mexico
Product Line Pass & Seymour
Application Sector Commercial
Standard cULus UL498, CSA C22.2 No. 42
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
cULus ListingNumber  140596
Technical Information
Number of Poles Double Pole
Voltage 250 V
Connection Back and side wire
Dielectric Strength Withstands 2000V minimum
Temperature Rating Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Wire Size #14 - #10
Number of Wires 3
Environmental Conditions Flammability: UL94 V2
