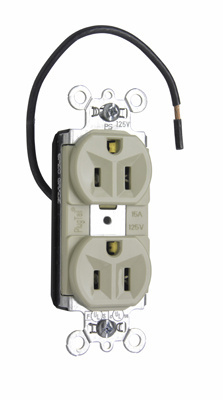

PT 15A 125V SPEC GRD SPLT CIR ** * W/6in LEAD, IVORY

PlugTail® Split Circuit Spec Grade Receptacles, 15A, 125A

Color None

Application Sector Commercial

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

.036 inch thick, brass, triple-wipe power contacts for lasting retention.
Plated steel wrap strap design for maximum durability and corrosion resistance.
No exposed terminals create a finger safe application before, during, and after installation.
Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
Crimped and welded contacts.
Large brass contacts snugly terminate on device blade terminals.
Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only

General Info

Dimensions

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes
