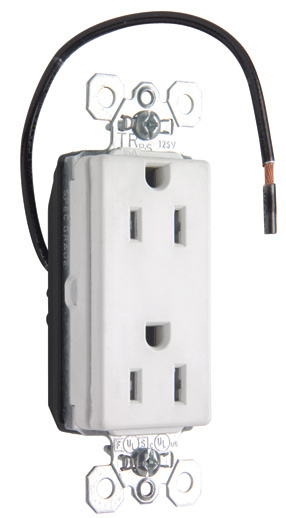

PlugTail® Split Circuit Tamper-Resistant Decorator Spec Grade Receptacle, 15A, 125V, White

PTTR26262SCW Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 104ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

PlugTail® Split Circuit Tamper-Resistant Decorator Spec Grade Receptacle, 15A, 125A
Color White
WHERE TO BUY

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info
Product Line Pass & Seymour
Color White
UPC Number 785007001785
Country Of Origin Mexico
Application Sector Residential/Commercial
Standard UL 498
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Phase 3
Wire Size Wire Size

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 41ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Questions & Answers

Is this device rated to handle different circuits on each receptacle that are of different phases? I.e. top receptacle is cir 1, phase A and bottom receptacle is cir 3, phase B. Utilization voltage is only 120 but the potential on the yolk is 208 or 240.

Asked by: Doug
This device is only rated for 15 amps 125 volts one phase. You can utilized the pre-stripped lead for split circuit applications but only for what the device is rated for.
Answered by: Legrand Techincal Support
Date published: 2018-09-04
