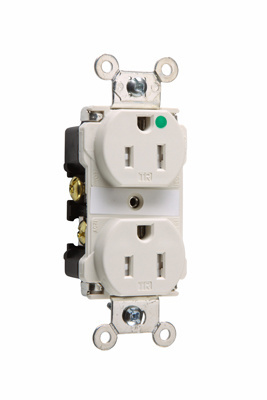

Tamper-Resistant Hospital Grade Receptacles, Smooth Face, Back & Side Wire, 15A, 125V, Light Almond

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 30ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Tamper-Resistant Hospital Grade Duplex Receptacle, Smooth Face, Back & Side Wire, 15 amp 125 volt, BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Color Light Almond

Features

  • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
  • Smooth face.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • Extra heavy-duty brass, one-piece mounting strap with integral ground.
  • One-piece, nickel-plated brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Impact-resistant nylon face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info
UPC Number 785007266993
Countries Of Origin Mexico
Product Line Pass & Seymour
Application Sector Commercial
Standard UL 498
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Number of Poles Double Pole
Voltage 125 V
Phase 3
Wire Size 10-14Awg
Number of Wires 3
