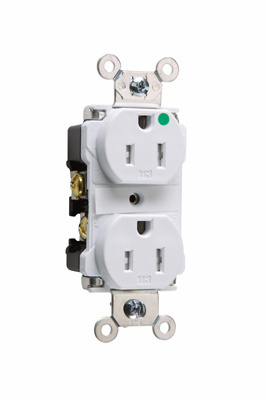

Tamper-Resistant Hospital Grade Receptacles, Smooth Face, Back and Side Wire, 15A, 125V, White

TR62HW Pass and Seymour

Tamper-Resistant Hospital Grade Receptacles, Smooth Face, Back and Side-Wire, 15A, 125A

Color White

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
Smooth face.
Exclusive patented feature, circuit label on face allows permanent circuit identification.
Extra heavy-duty brass, one-piece mounting strap with integral ground.
One-piece, nickel-plated brass, triple-wipe power contacts for lasting retention.
Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
Impact-resistant nylon face and back body.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Two drive screws anchor strap to back body and face.
Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact

Specifications

General Info

Color	White
Application Sector	Commercial, Healthcare
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Brass Mounting Strap
Wall Plate Included	No
Number of Receptacles	2
Outlet Type	Hospital Grade, Tamper-Resistant
Warranty Type	1-Year Limited Warranty
Standard	UL498, CSA C22.2 No. 42, FEDSPEC
UPC Number	785007145137

Dimensions

Product Depth US	0.9 in
Product Height US	2.75 in
Product Width US	1.625 in

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	140596
cULus Listed	Yes

Technical Information

Amperage	15 A
Connection Location	Back and Side
Dielectric Strength	Withstands 2000V minimum
Environmental Conditions	Flammability: UL94 V2
Indoor/Outdoor	Indoor
Is Tamper-Resistant	Yes
NEMA Configuration Code	5-15R
Number of Poles	Double Pole
Number of Wires	3
Operating Temperature	-40°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-40 °C
Voltage	125.0 V
Wire Size	14 - 10 AWG
