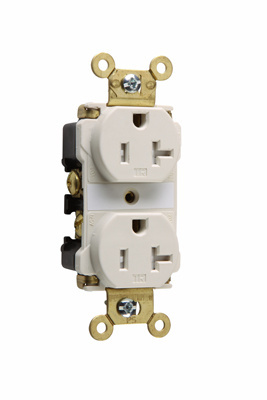

20A 125V Spec-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Light Almond

Tamper-Resistant Spec Grade Receptacles, Back and Side Wire, 20A, 125V

Color Light Almond

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
Auto-ground clip assures positive ground.
Extra heavy-duty brass, one-piece mounting strap with integral ground.
One-piece, brass, triple-wipe power contacts for lasting retention.
Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
Impact-resistant nylon face and back body.
Two drive screws anchor strap to back body and face.
Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact

General Info

Dimensions

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Technical Information

Resources

Features
