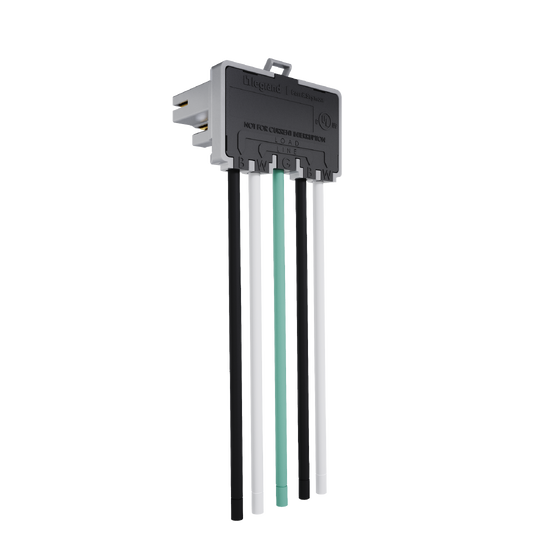

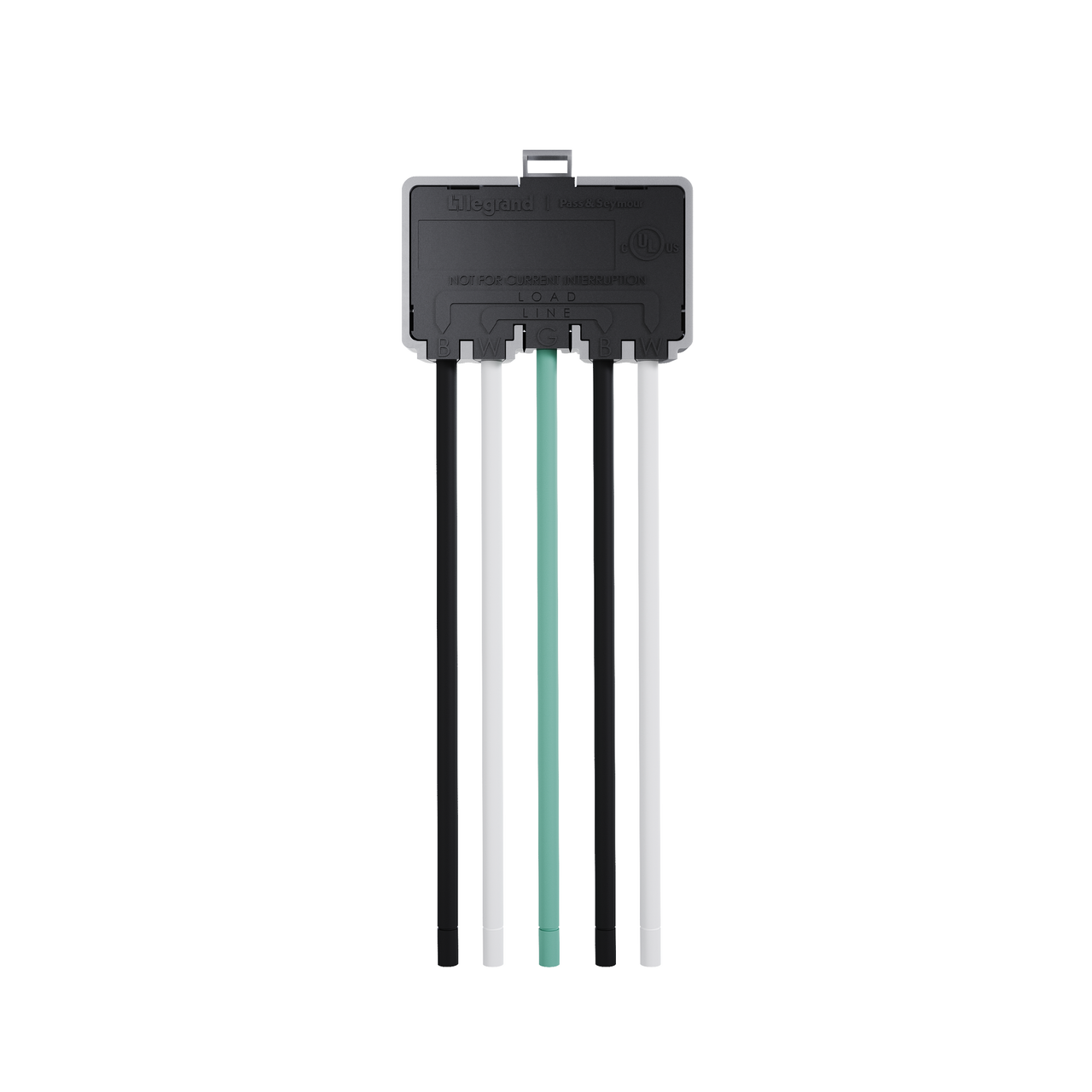

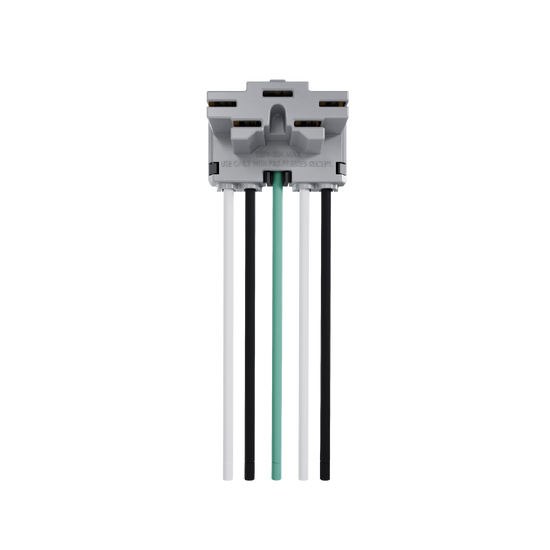

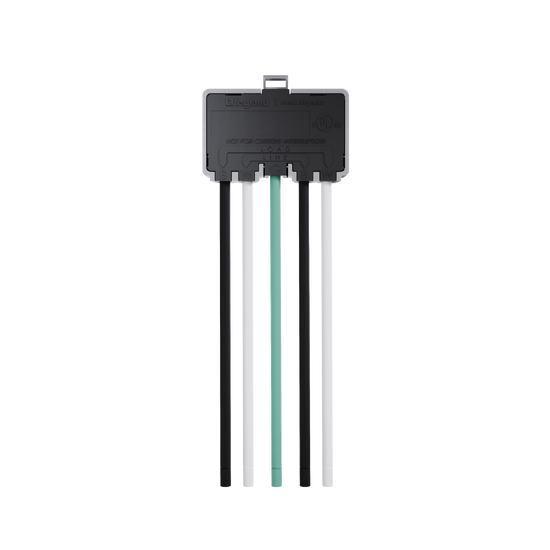

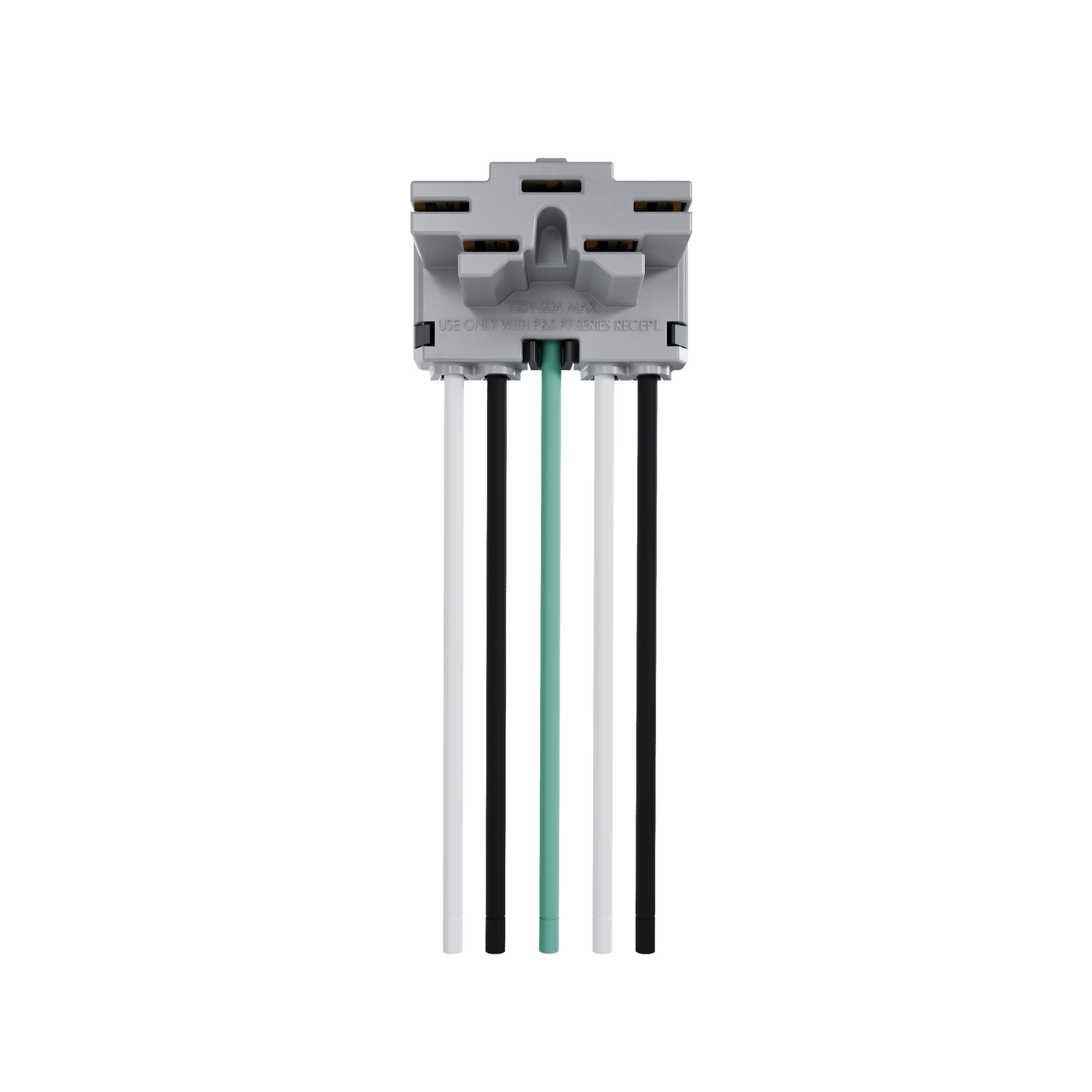

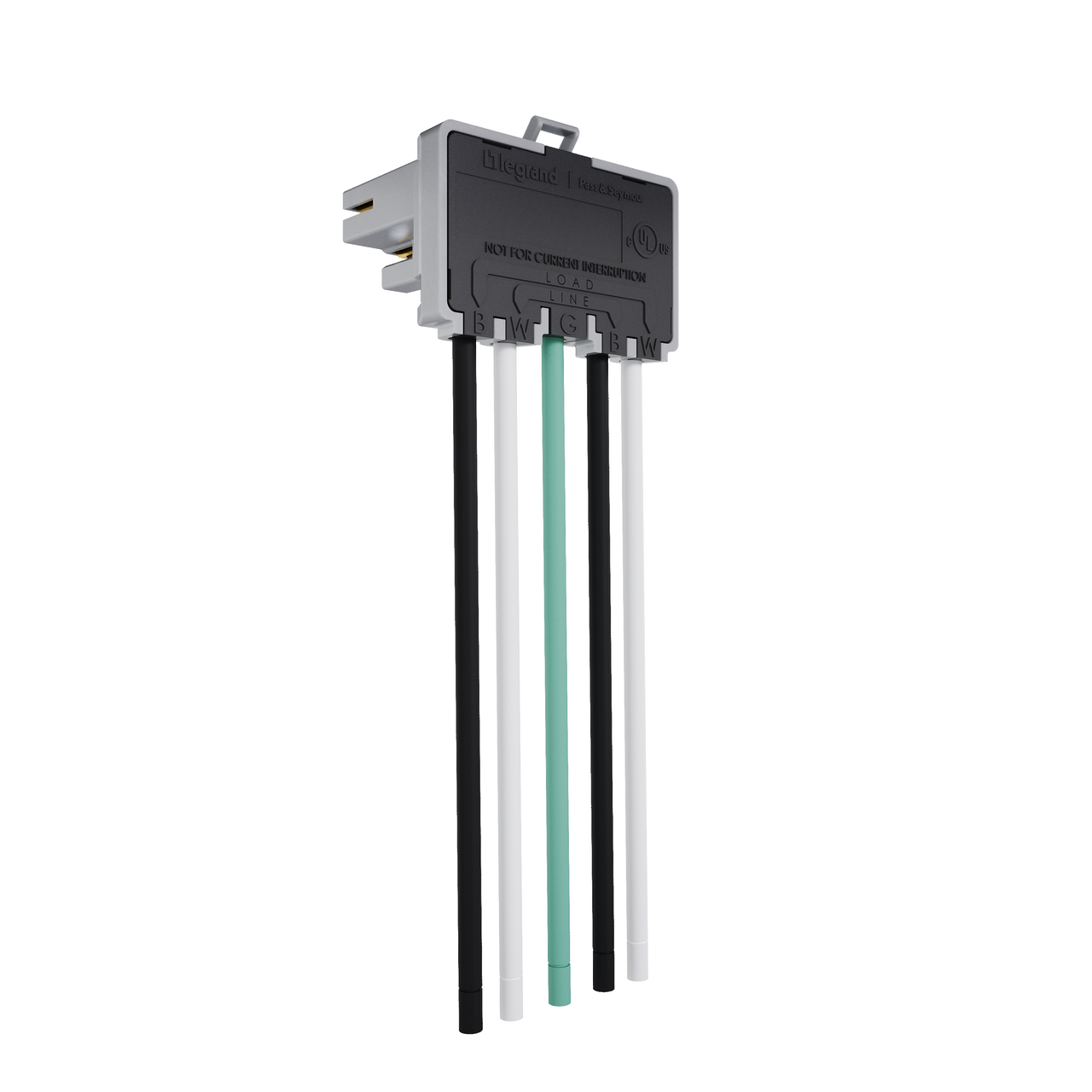

PlugTail® Connectors, Right Angle, Five wire, Solid, 6-in

PTRA6SOL5W Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 14ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

PlugTail® 5‑Wire Connector, Right angle, #12 AWG, THHN, 6" pre stripped copper conductors, solid. Built for feed‑through wiring applications, the UL‑listed connector ensures correct orientation and consistent terminations with PlugTail® receptacles, while the finger‑safe, right‑angle housing enhances safety and installation speed.
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Ultrasonically welded polycarbonate housing provides a secure, finger‑safe enclosure for all terminations
  • #12 AWG, 6" THHN solid copper leads engineered exclusively for PlugTail® receptacles.
  • Pre‑stripped leads and PlugTail® interface simplify installation, delivering more consistent, reliable connections than standard pigtails
Specifications

Specifications

General Info
Color White
Application Sector Commercial
Product Line Pass & Seymour
Country Of Origin China
Features Feed Through
Wall Plate Included Yes
Warranty Type 1-Year Limited Warranty
UPC Number 785007502770
Dimensions
Product Depth US 1.04 in
Product Height US 6.0 in
Product Length US 6.0 in
Product Width US 1.47 in
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Additional Information
Energy Savings No
Technical Information
Connection Location Back Only
Wire Connection Type PlugTail
Indoor/Outdoor Indoor
Number of Wires 5
Voltage 125.0 V
