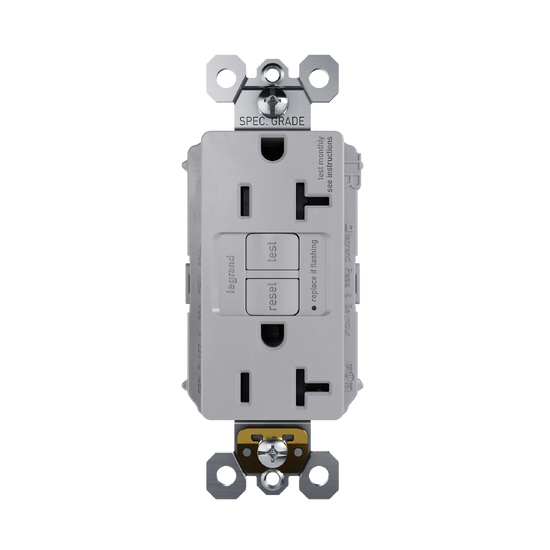

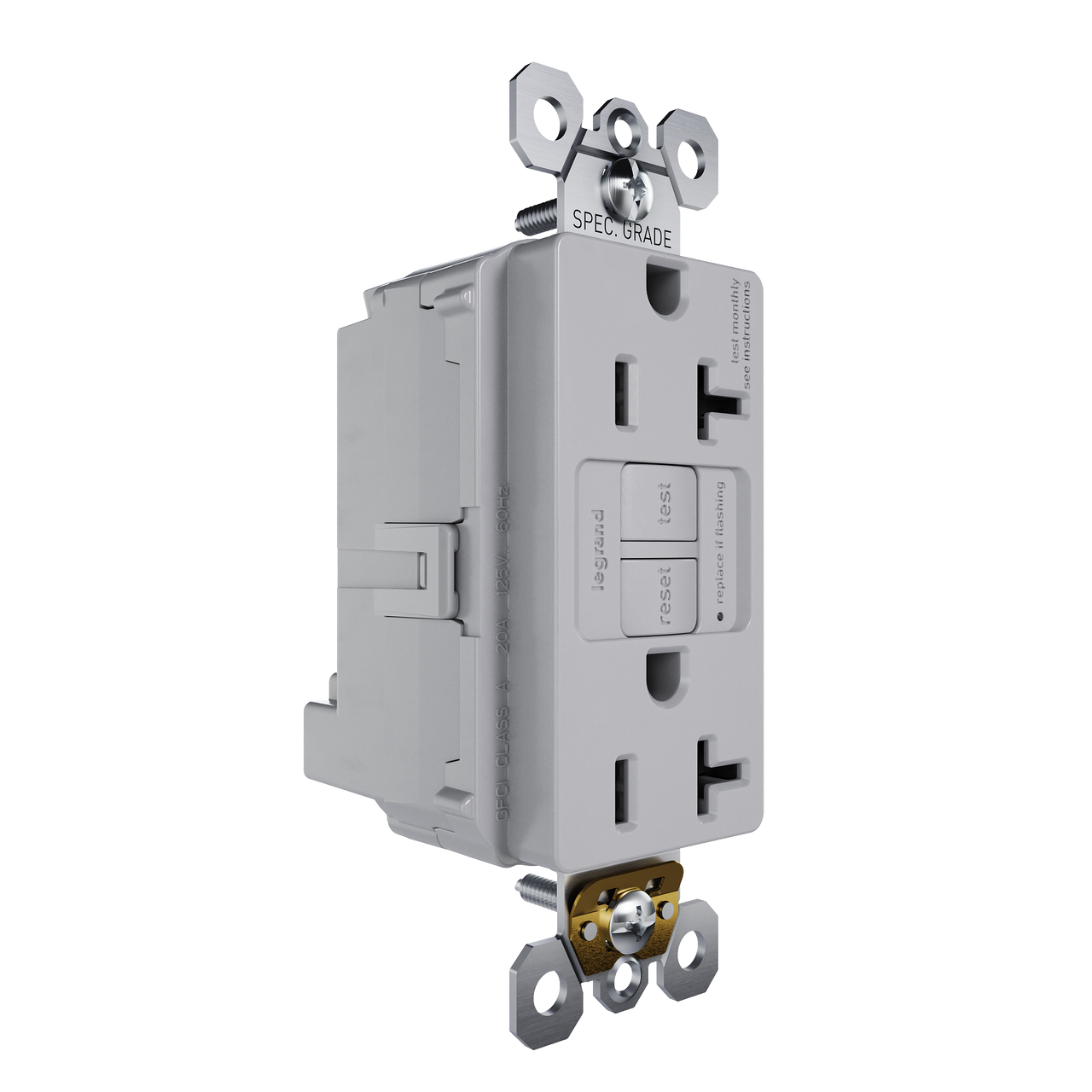

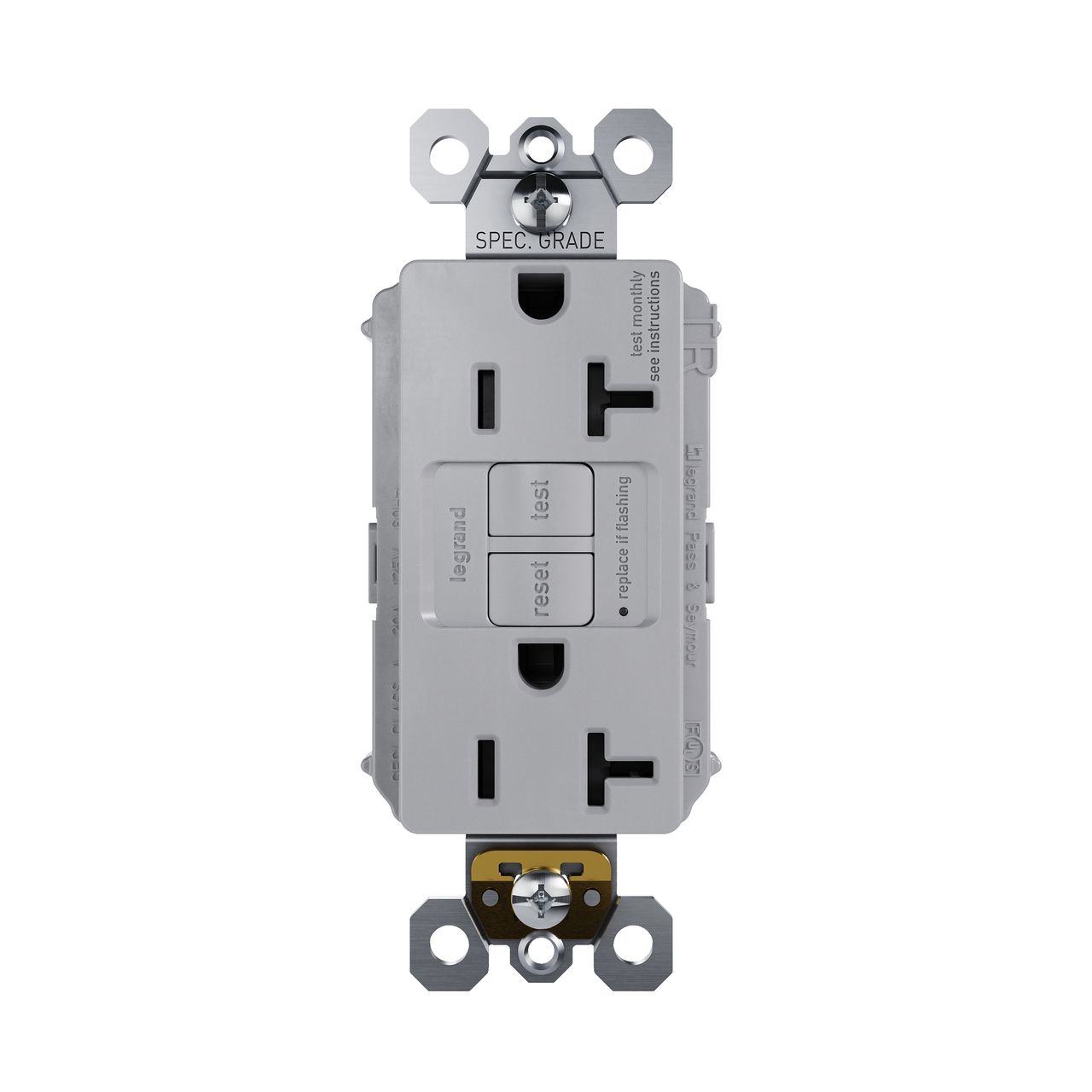

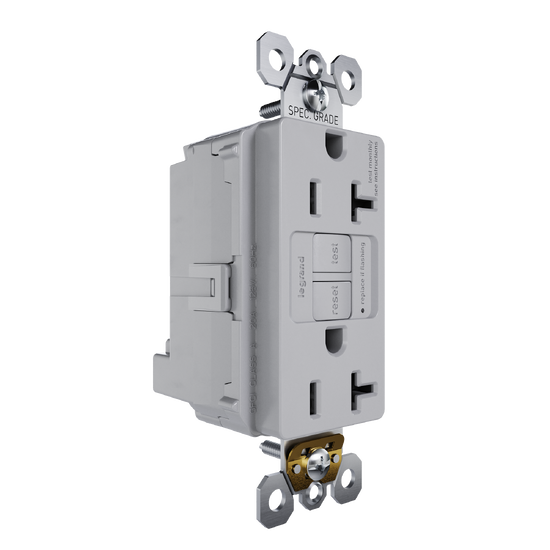

PlugTail® Specification Grade Tamper-Resistant 20A Duplex Self- Test Feed-Through GFCI Receptacles with SafeLock® Protection, Gray

PT2097TRFTGRY Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 20ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

20A PlugTail® GFCI with feed through is designed for fast, safe, and consistent installation across any job site. It works with both 3‑wire PlugTail® connectors and 5‑wire connectors, supporting non‑feed‑through and feed‑through wiring to protect downstream receptacles. A finger‑safe design eliminates exposed terminals, enhancing safety before, during, and after installation. UL‑listed connectors ensure proper orientation, while the PlugTail® modular system delivers predictable, time‑saving installation regardless of installer skill level. This GFCI extends the proven PlugTail® platform by adding feed‑through capability, enabling broader application coverage with the same installation efficiency.
Color Gray
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Conducts an automatic self‑test every three seconds to ensure continuous protection. If the device fails the test, the indicator light alerts that the GFCI should be replaced
  • SafeLock® Protection disconnects power to the receptacle if critical components are damaged and protection is lost
  • Enables faster, more reliable installation using the PlugTail® modular wiring system, delivering consistent results across all skill levels.
  • No exposed terminals create a fully finger‑safe application before, during, and after installation
  • Built‑in connector interface features large brass terminal blades for consistent, dependable electrical connection to PlugTail® connectors
  • Designed to work with both 3‑wire tails and 5‑wire tails, enabling non‑feed‑through and feed‑through wiring for downstream GFCI protection in a modular format
  • Supports streamlined prefabrication and jobsite productivity by maintaining the familiar PlugTail® workflow while expanding application capability
  • Durable zinc‑plated steel mounting strap provides strength and long‑term reliability in demanding commercial environments
Specifications

Specifications

General Info
Color Gray
Application Sector Commercial
Product Line Pass & Seymour
Country Of Origin China
Features Feed Through, Self-Test
Wall Plate Included Yes
Number of Receptacles 2
Outlet Type GFCI, Tamper-Resistant
Warranty Type 1-Year Limited Warranty
UPC Number 785007502596
Dimensions
Product Depth US 1.65 in
Product Height US 4.2 in
Product Length US 4.2 in
Product Width US 1.74 in
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Additional Information
Energy Savings No
Technical Information
Amperage 20 A
Connection Location Back Only
Wire Connection Type PlugTail
Indoor/Outdoor Indoor
Number of Poles 2 Pole
Number of Wires 3
Voltage 125.0 V
