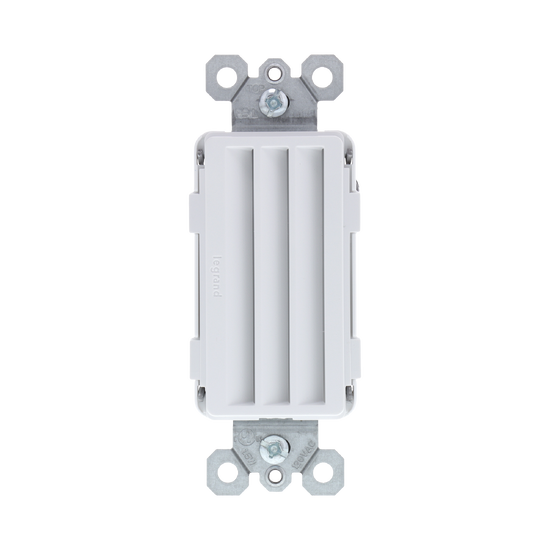

radiant® Horizontal Step Light
NTLHORZWCC6
radiant Collection
radiant® Horizontal Step Light, Tri-Color is rated
out of
5 by
2.
Bazaarvoice SAP Hybris Integration Version 2.8.1
$27.98 USD
Louvered lights offer safer stair climbing and decent when ambient light is low
Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Quantity
In Stock
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Specifications
General Info
| Color | White | ||
| Application Sector | Hospitality, Residential | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | China | ||
| Features | Nightlight | ||
| Wall Plate Included | No | ||
| Warranty Type | 1-Year Limited Warranty | ||
| UPC Number | 785007071665 |
Dimensions
| Product Depth US | 1.3 in | ||
| Product Height US | 4.2 in | ||
| Product Width US | 1.29 in |
Technical Information
| Amperage | 15 A | ||
| Connection Location | Side Only | ||
| Wire Connection Type | Internal Pressure Plates, Screw Terminals | ||
| Indoor/Outdoor | Indoor | ||
| NEMA Configuration Code | 5-15R | ||
| Number of Gangs | 1 | ||
| Number of Poles | Double Pole | ||
| Number of Wires | 3 | ||
| Voltage | 120/125 V |
Resources
Cutsheet
Installation Instructions
Supporting Document
Guide Form Specifications
Premium Content
Related Products
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
NTLFULLWCC6 | radiant Collection
Sleek, built-in night light featuring five adjustable light levels.
$21.99
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
NTL873WCC6 | radiant Collection
Add a little light where you need it, with this combination switch and night light.
$25.99
Reviews
Rated 5 out of
5
by
OrionNinja from
looks great
I ordered one and liked it so much I got a second one. Note that when the "optional" included louver is used they will not turn off, at least with the two that I have. At first I was disappointed the photocell didn't work with the louvers on, but like them so much I decided to keep them. Adjustable light levels allow you to control the amount of light they give off. I used the Legrand radiant Screwless Wall Plates and it looks like a professional installation. It was an easy install. Tip: The light will blink if the wall plates press too hard on the fixture, so you may need to finesse the wall plate installation so it does not interfere with the light's operation. It needs a small amount of travel to depress it for the different settings. Very pleased and am considering a third one!
Date published: 2023-07-05
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
My hallway is dim during the daytime and my Legrand radiant night light stays on all the time. It is not clear how to set the threshold to turn the light off during dim conditions?
Thank you for your inquiry. To provide further assistance with your request, we require additional information. Please get in touch with Legrand Pass & Seymour Technical Support at (800) 223-4185 between 8:00 a.m. and 6:00 p.m. EST, or via email at Tech.Support@legrand.us.
Date published: 2024-09-11
Installed three Legrand radiant NTLHORZWCC6 Horizontal night lights. However, they only work as a night light when programed without the louvers. I tried reprogramming them with the louvers on, but only function as a light and never turn off.
The NTLHORZWCC6 can be programmed for use with either the clear lens or the louver.
AMBIENT LIGHT THRESHOLD SETTING: To adjust light sensitivity of the
nightlight, press and hold nightlight face for 5 seconds. To indicate louver mode,
LED will blink three times. To indicate clear lens mode, LED will blink twice.
If you'd like additional assistance, please contact our Technical Support Team.
Phone: 800-223-4185
Mon – Fri: 8:00am – 6:00pm EST (excluding holidays)
Email Us: tech.support@legrand.us
Date published: 2024-08-26
What color temperature are these night lights?
Thank you for your inquiry. The temperature is 6000 Kelvin.
Date published: 2024-08-12
I ordered the horizontal night light (NTLHORZWCC6) and it came with the louver, but not the trim kit. Is there a way to order the trim kit separately? I purchased it on December 22, 2022 from Amazon. Thanks!
No, the trim kits are not sold separately.
Date published: 2024-03-28
I installed these step lights in a series. when i turn them on at night, they just blink. How do I get them to stay on?
Hi, it sounds like this could be related to wiring or application. I'd advise you call in to technical support so we can try to provide advisement.
Date published: 2023-02-17
Is there a way to keep the light on all of the time ? (as opposed to having it just come on when the area is dark?)
You can put duct seal over the sensor. Then use switch. Not designed for dimmers, but I've used lutron RA2 RRDPRO dimmer and has worked ok for 2 months now.
Date published: 2022-06-27
Is the NTLHORZ louver nightlight dimmable?
The horizontal nightlight has adjustable light levels(ultra low, low, med, and high). It is not designed to be controlled by a dimmer or switch seeing the built-in light sensor will turn it on automatically but sensing the light level in the room.
Date published: 2024-10-21
How many lumens are these step lights
Lumens with louver:
Extra Low - .6
Low - 2.3
Med - 4.9
High - 9.0
Without louver:
Extra Low - 1.7
Low - 6.8
Med - 16.1
High - 30.4
Date published: 2024-07-15
