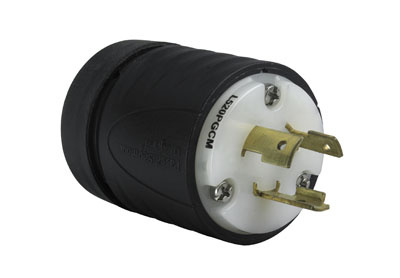

Heavy-Duty Ground Continuity Monitoring (GCM) Plug, Black & White

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 34ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

TURNLOK PLUG 3W 20A 125V
Color Black

In Stock

WHERE TO BUY

Features

  • Integral indication of ground continuity and power status. Continuous monitoring enhances personnel safety and adds convenience.
  • Dual, bright LED indicators with 360: visibility. Green LEDs indicate proper ground continuity and power status. Red LEDs indicate ground continuity loss or reversed polarity. No LED indicates open hot, open neutral, or hot to ground cross. For 250V configurations: Hot to ground cross will be indicated by a green and red LED.
  • NEMA configurations always visible for fast identification without disconnecting.
  • Exclusive neoprene dust shield on devices seals cable entry. Optional weatherproof boots (sold separately).
  • Chemical- and impact-resistant nylon housing features horizontal, easy grip ribs on back body.
  • Exclusive, rugged two-piece cord grip (15 Amp only) accepts a wide range of cord widths. Provides uniform pressure for superior retention of conductors.
  • Recessed cord-grip screw reduces screwdriver slippage, improves safety. Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire.
  • Color-coded terminal screws are backed-out for fast installation.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.

Specifications

General Info
Color Black
UPC Number 785007265491
Country Of Origin Mexico
Product Line Pass & Seymour
Application Sector Industrial
Type Plug Tail
Standard UL Listed
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
cULus ListingNumber  146159
Technical Information
Number of Poles Double Pole
Voltage 125 V
Phase 3
Number of Wires 3
