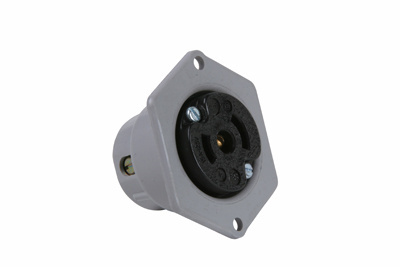

Discontinued - Midget Flanged Outlet - Black Face, Gray Flange

ML214 Pass and Seymour

Midget Lock Flanged Outlet 2-Pole 3-Wire 15A 125A

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Quality Materials, durability, and time-tested design
Wire Size: 18/3 thru 14/3 AWG Round cord (.23" - .52" Dia.)

Specifications

General Info

Color	Gray
Application Sector	Commercial, Industrial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Standard	UL Listed
UPC Number	785007124507

Dimensions

Product Depth US	1.26 in
Product Width US	2.06 in

Listing Agencies / 3rd Party Agencies

CSA Listed	Yes
CSA File Number	140596

Technical Information

Amperage	15 A
Environmental Conditions	UL94 V2, Maximum Continuous +75°C, minimum -40°C without impact
Number of Poles	Double Pole
Number of Wires	3
Operating Temperature	-40°-75°C
Operating Temperature Max	75 °C
Operating Temperature Min	-40 °C
Phase	Single
Wire Size	18 - 14 AWG
