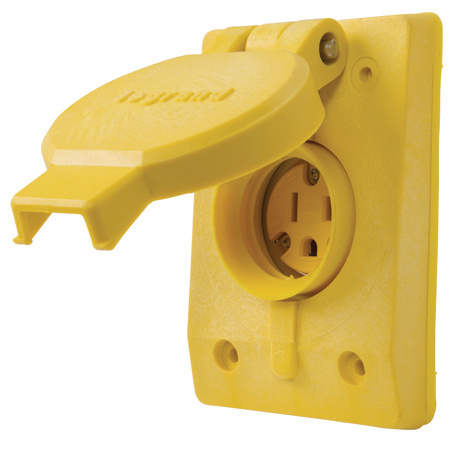

15A/10A, 125/250V Watertight Straight Blade, Single Receptacle, Yellow

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 1501ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Execution timed out, exceeded 1,500ms;

P&S Watertight Receptacles and Back Boxesmining, mills and many other locations.
Color Yellow

In Stock

Features

  • Impact-resistant Valox lid, cover plate and receptacle body withstand impacts, chemical & corrosion.
  • Spring-loaded flip cover provides protection when device is not in use.
  • Stainless-steel hinge spring and pin ensure corrosion resistance.
  • For Covering Patents, see www.legrand.us/patents.

Specifications

General Info
Color Yellow
UPC Number 785007032987
Countries Of Origin United States
Product Line Pass & Seymour
Application Sector Commercial
Standard CSA Listed, FSUL, UL Listed
Technical Information
Number of Poles 3-Way
Voltage 125 V
Connection Cable
Phase Single
Wire Size 18AWG - 12AWG
Number of Wires 3
Environmental Conditions Moisture Resistance NEMA 3R (Flip Lid Assemblies/Back Boxes) Flammability UL94V0 (boxes & wiring device interiors) UL94V2 (cover plates) UL94HB (wiring device housings, flip lid seals) Operating Temperature -40°C (without impact) to +60°C continuous UV Resistance All exposed materials are UV stabilized
