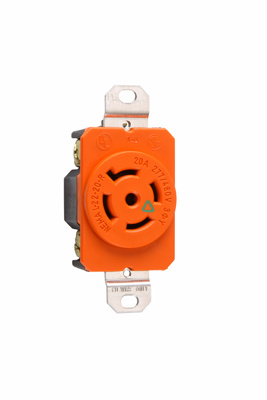

20A NEMA L2220 Single Receptacle, Orange, Isolated Ground

Turnlok® Single 4-Wire 20A 3-Phase 277/480V Isolated Ground

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
140 joules of energy absorption in each of the three modes.
9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
1 filtering capacitor for 7 to 1 average noise reduction.
Nominal let-through (suppressed) voltage inall 3 modes, 500V.
LED indicator light.
Response time less than 1 nanosecond for unmounted MOV.
Overcurrent protection in all 3 modes.
Electronic components potted for electrical, mechanical and thermal stability.
Thermal protection in all 3 modes.
Leakage current: 0.5 mA at 25: C/120VAC. 3 18mm super MOVs to suppress transients in all modes : equally.
Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
Varistor voltage: 150V RMS.
Back and side wire capability including ground terminal.
Operating temperature: -40: C to 85: C(-40: F to 185: F)
Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.

General Info

Color	Orange
Application Sector	Industrial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Brass Mounting Strap, Impact Resistant
Wall Plate Included	No
Number of Receptacles	1
Outlet Type	Isolated Ground, Locking
Warranty Type	1-Year Limited Warranty
Standard	UL Listed
UPC Number	785007222098

Dimensions

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	140596
cULus Listed	Yes
