Discontinued - Midget Plug, Black
ML3113
Pass and Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1

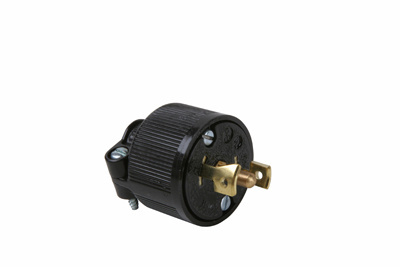

Midget Lock Plug 3-Pole 3-Wire 15A 125/250V
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Specifications
General Info
| Color | Black | ||
| Application Sector | Commercial, Industrial | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | Mexico | ||
| Standard | UL Listed | ||
| UPC Number | 785007124521 |
Dimensions
| Product Length US | 1.18 in | ||
| Product Width US | 1.23 in |
Technical Information
| Amperage | 15 A | ||
| Environmental Conditions | UL94 V2, Maximum Continuous +75°C, minimum -40°C without impact | ||
| Number of Poles | Double Pole | ||
| Number of Wires | 3 | ||
| Operating Temperature | -40°-75°C | ||
| Operating Temperature Max | 75 °C | ||
| Operating Temperature Min | -40 °C | ||
| Phase | Single | ||
| Wire Size | 18 - 14 AWG |
Resources
Instruction Sheet
Brochure
Specifications
Cutsheet
