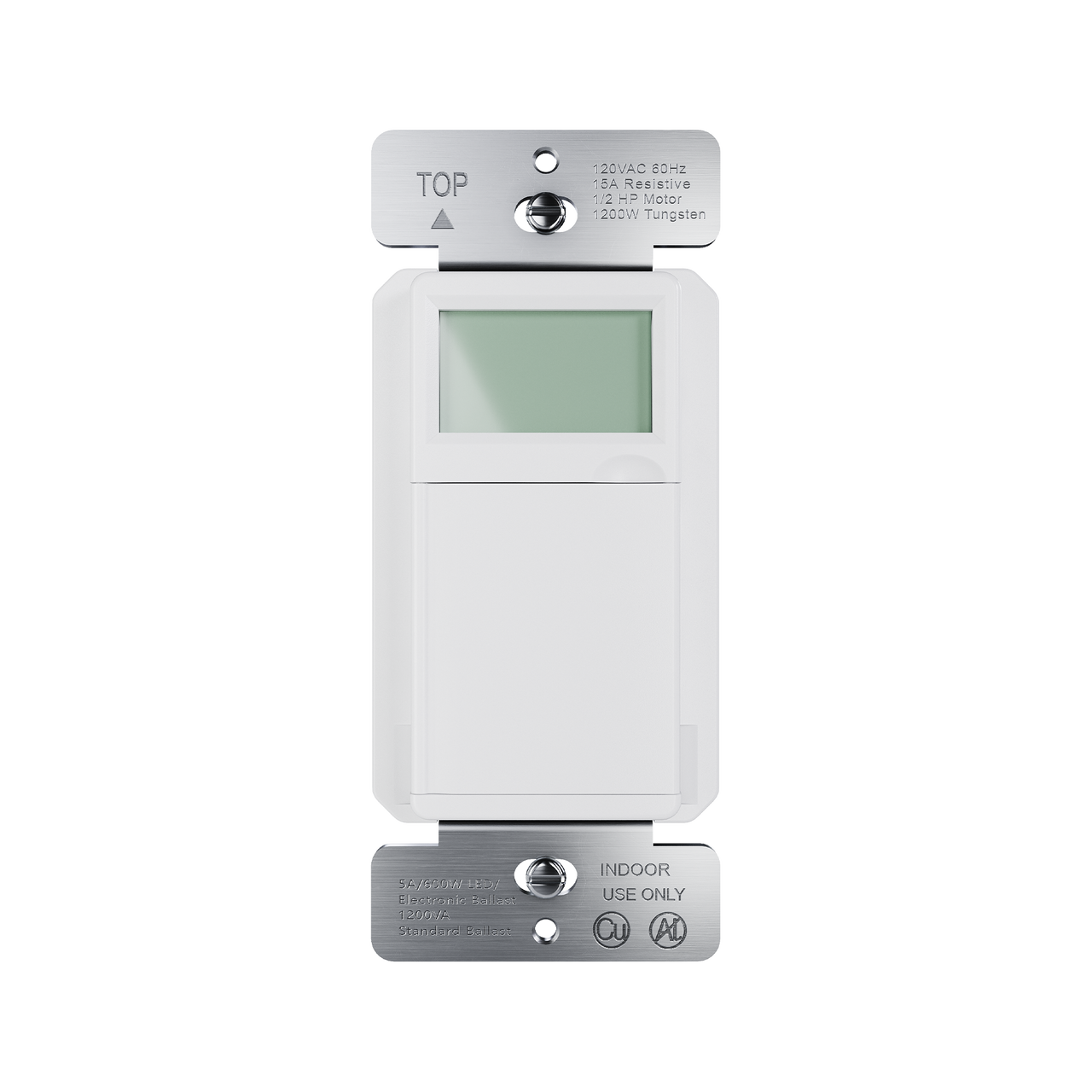

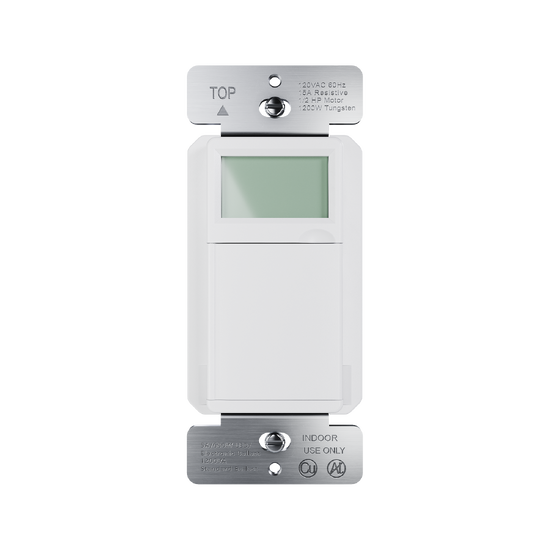

Programmable 24-hour Astronomic Timer, White
Bazaarvoice SAP Hybris Integration Version 2.8.1
The Programmable 24-hour Astronomic Timer automatically turns lighting and small motor loads on and off based on user programming. It replaces single-pole and 3-way switches for energy savings, convenience and security. This timer is an ideal solution for meeting Title 24 and IECC residential energy code requirements for exterior lighting control. Accounting for daylight savings time and seasonal shifts, the programmable timer switch automatically adjusts sunrise/sunset times and has a rechargeable battery backup in the event of power loss.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Total of 7 ON and 7 OFF programmable settings for 24 hour scheduling every day of the week
- Astronomic feature automatically adjusts dusk to dawn times based on location
- Automatically adjusts for daylight savings time
- Built in rechargeable battery backup lasts up to 14 days to store programs in the event of a power loss
- Manual ON override returns to programmed settings within 6 hours
- Meets California Title 24 (2019/2022 Part 6: Outdoor Control Device) and 2021 IECC requirements
- 4 Operating Modes Included: Manual, Automatic, Random, Countdown
- Replaces standard wall switch, 1P/3W installations
- Back-lit LCD Screen
- Works with LED, CFL and Incandescent Lighting
Specifications
| Color | White | ||
| Type | Timer | ||
| Finish | Gloss | ||
| Application Sector | Light Commercial, Hospitality, Residential | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | China | ||
| Features | Timer | ||
| Wall Plate Included | No | ||
| Installation Location | Wall Box | ||
| Standard | cULus, RoHS, UL | ||
| UPC Number | 785007454611 |
| Product Depth US | 1.42 in | ||
| Product Height US | 4.11 in | ||
| Product Length US | 1.71 in | ||
| Product Width US | 1.73 in | ||
| Product Weight US | 0.29 lb |
| cULus Listed | Yes |
| Product Has Potential to Contribute to LEED | Yes | This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information. | |
| Energy Savings | Yes | ||
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
| On Function | Programmable On/Off with Manual Override | ||
| Requires Neutral Wire | Yes | ||
| Wire Connection Type | Screw Terminals | ||
| Bulb Compatibility | CFL, Incandescent, LED | ||
| Frequency Rating | 60 Hz | ||
| Load Type | CFL, Incandescent, LED | ||
| Number of Poles | Single Pole 3-Way | ||
| Timer Type | Astronomical, Countdown, Digital, Programmable | ||
| Timer Duration | 24 Hours, 7 Days | ||
| Horsepower Rating | 1/2 HP @ 120 VAC | ||
| Voltage | 120 VAC |
