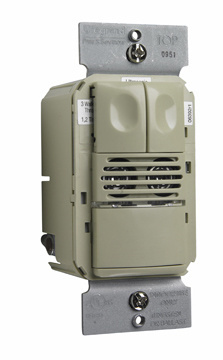

Discontinued - Bi-Level Dual Technology Sensor Wall Switch, Ivory
WDT200I
Pass and Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1
Replaced by DSW-302-I
Bi-Level Dual Technology Wall Switch Sensor, 1050 sq.ft. coverage, 120/230/277 VAC� 50/60 Hz, Ivory
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- High sensitivity and dense coverage for exceptional performance.
- Sensitivity adjustment
- Self-adaptive technology for automatic, intuitive energy savings.
- Color-matched lenses and low profile for appealing design.
- Fast,easy installation/switch-out.
- Zero-crossing for long relay life.
- Choice of auto-ON or manual-ON operation The WDT200 also
- Gives you bi-level control of two loads independently from the same box.
- Built-in sensor holds secondary lights off until daylight levels drop
- Each relay can be set for automatic or manual ON.
- Dual ON/OFF buttons can control each of the loads manually as well.
Specifications
General Info
| Color | Ivory | ||
| Application Sector | Commercial | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | China | ||
| Replaced by Part Number | DSW-302-I | ||
| Standard | RoHS, CSA Listed, cULus, UL Listed | ||
| UPC Number | 785007004779 |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
Technical Information
| Environmental Conditions | Indoor Use Only | ||
| Sensitivity | 50/60 Hz | ||
| Sensor Type | Occupancy | ||
| Target Size | 180 deg |
Resources
Installation Instructions
Specifications
Supporting Document
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
How do I adjust the coverage area. I want it to come on as soon as I enter the garage that it is installed. It is installed next to a door but he have to completely enter the room before the light comes on. The switch is the WDT-200
You can try adjusting the PIR and Ultrasonic detections. For PIR make sure dip switch is on HIGH and you turn the Ultrasonic Sensitivity Adjustment Trimpot wheel towards the + sign to increase sensitivity.
Date published: 2021-06-28
