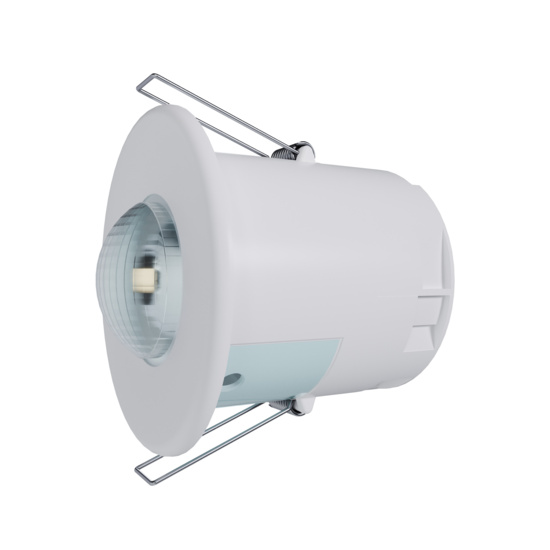

Wattstopper PLUS DALI 2 Presence Detector, 15m²
DP-EBDMR-DALI2
Wattstopper
Bazaarvoice SAP Hybris Integration Version 2.8.1
The DP-EBDMR-DALI2 is a mid-range, flush mounted, ceiling sensor. This sensor is fully DALI 2 certified and utilizes a high performance faceted lens for use in open spaces or where a larger detection range is required. This sensor can be used as both a presence detector as well as a light level sensor.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
The DP-EBDMR-DALI2 is a mid-range, flush mounted, ceiling sensor. This sensor is fully DALI 2 certified and utilizes a high performance faceted lens for use in open spaces or where a larger detection range is required. This sensor can be used as both a presence detector as well as a light level sensor.
- Fully compliant to IEC 62386-303 (Occupancy detector) and IEC62386-304 (Light Level detection)
- Wide detection using a high performance rounded faceted lens. Ideal for larger detection areas.
- DALI-2 certified
Specifications
General Info
| Color | White | ||
| Product Type | Sensor | ||
| Material | Plastic | ||
| Finish | Plastic | ||
| Application Sector | Commercial | ||
| Product Family / Series / Group | Wattstopper PLUS | ||
| Product Line | Wattstopper | ||
| Country Of Origin | Hungary | ||
| Features | Light Level Sensor | ||
| Installation Location | Ceiling | ||
| Warranty Type | 5-Year |
Dimensions
| Product Height US | 77.0 mm | ||
| Product Length US | 76.0 mm | ||
| Product Width US | 76.0 mm | ||
| Product Weight US | 150.0 g |
Listing Agencies / 3rd Party Agencies
| CE Certified | Yes |
Additional Information
| Energy Savings | Yes |
Technical Information
| Current Draw | 8 mA | ||
| On Function | Selectable Auto/Manual | ||
| Topology | Daisy Chain | ||
| Wire Connection Type | Plug-In | ||
| Compatibility | DALI, Wattstopper PLUS Wired | ||
| Has Battery | No | ||
| Indoor/Outdoor | Indoor | ||
| Input Voltage | 9.5 to 22.5 VDC | ||
| Mounting Type | Spring Clip | ||
| Operating Temperature | -10°-35°C | ||
| Operating Temperature Max | 35 °C | ||
| Operating Temperature Min | -10 °C | ||
| Operating Humidity | 5-95% RH (Non-Condensing) | ||
| Sensing Range | 15 m | ||
| Sensor Type | Daylight, Occupancy | ||
| Sensor Technology | Passive Infrared (PIR), Photosensor | ||
| Sensor Mounting Height | 2.8 m |
