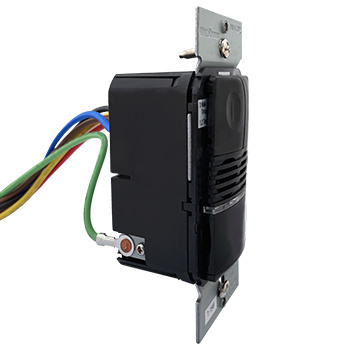

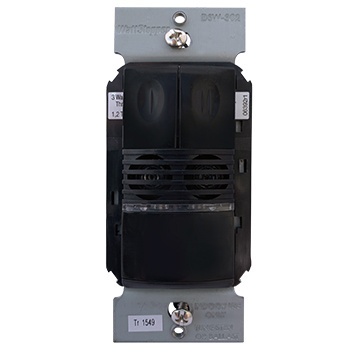

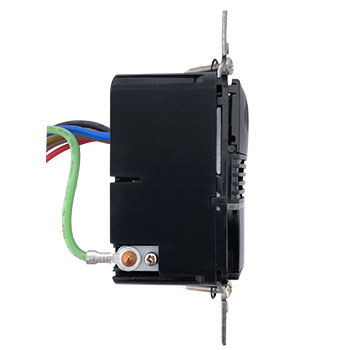

Dual Tech Wall Switch Occupancy Sensor, 120/277V, Black

DSW-302-B Wattstopper
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 34ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

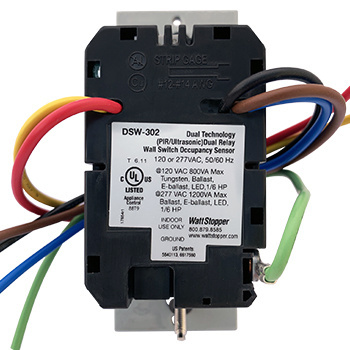

The DSW-302 dual technology wall switch sensor turns lights ON and OFF based on occupancy and contains two relays for controlling two independent lighting loads or circuits. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies for high sensitivity to small and large movements. The DSW-302 replaces existing wall switches and fits a standard decorator wall plate.
Color Black
Voltage 120/277 VAC
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • High sensitivity and dense coverage for exceptional performance
  • Two relays for control of two separate lighting loads or circuits
  • Color-matched lens and low profile for appealing design
  • 120/240/277 VAC and 347 VAC models
  • Defaults to Manual-ON operation for maximum energy savings
  • Retrieving data. Wait a few seconds and try to cut or copy again.

Specifications

General Info
Product Line Wattstopper
Color Black
UPC Number 754182935451
Country Of Origin China
Features IR (Infrared), Motion Sensor
Switch Type Motion Sensor
Application Sector Commercial
Dimensions
Product Width US 2.0 in
Product Weight US 0.47 lb
Product Volume US 35.02 cu in
Product Depth US 2.99 in
Product Height US 4.8 in
Additional Information
RoHS Conformant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Security   Yes This product is ioXt certified
Technical Information
Response Frequency 50/60 Hz
Sensor Type Occupancy
Number of Buttons 2
Amperage 8.3 A
Wattage 1200 W
Mounting Type Box
Sensing Range 180 degrees, 1050 sq ft
Voltage 120/277 V
Connection Type Wired
Load 800W

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Questions & Answers

Can the DSW-302 be used with two circuits or two different voltages. Example; lighting 277V and exhaust Fan 120V.

Asked by: Chris SESCO
Yes, the DSW-302 be used with two circuits or two different voltages.
Answered by: Tier 1 Tech Support
Date published: 2023-09-12

Does this switch have dimming capability?

Asked by: Caleb Eggleston
The DSW-301 and DSW-302 do not have dimming capabilities. They are both Dual Tech Occupancy Sensor Switches. The DSW-301 is the single relay version with 1 button. The DSW-302 is a dual relay version capable of handling 2 separate loads, with 2 buttons.
Answered by: Tier 1 Tech Support
Date published: 2022-08-12

Can I use the DSW-302-W to control one half of a receptacle and the other switch for the light in order to comply with NEC 406.6 (E) and ASRAHE Standard 90.1: Section 8.4.2 THANK YOU

Asked by: Anonymous
Placing a plug-load or controlled receptacle is not recommended for this device. It is only rated for lighting loads and small motor loads.
Answered by: Tier 1 Tech Support
Date published: 2021-08-10
