Hardware and 1st Year Remote Support Warranty For Wattstopper PLUS and Retrofit

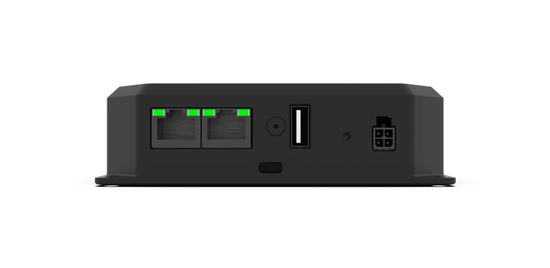

RACCESS-R
Wattstopper
Bazaarvoice SAP Hybris Integration Version 2.8.1

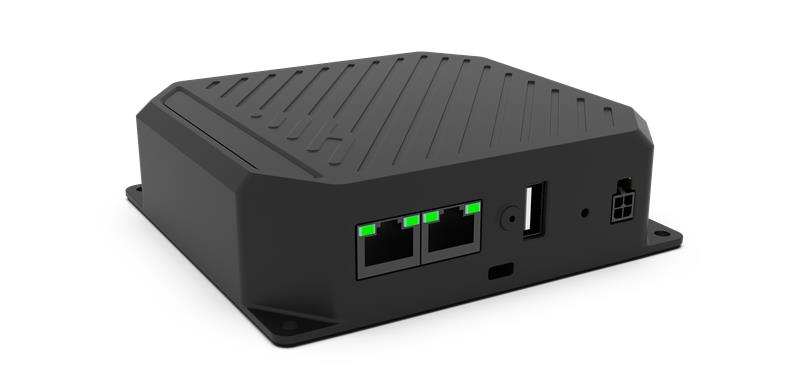

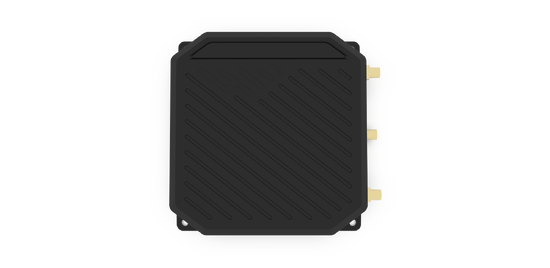

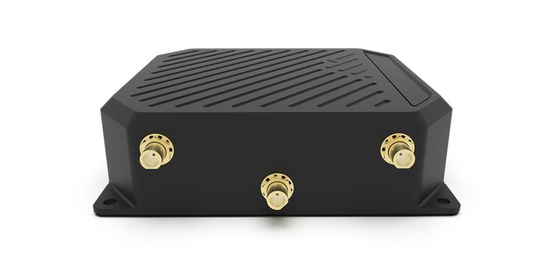

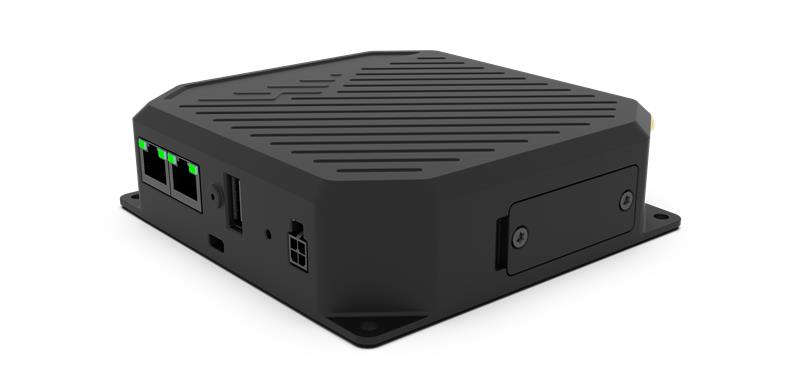

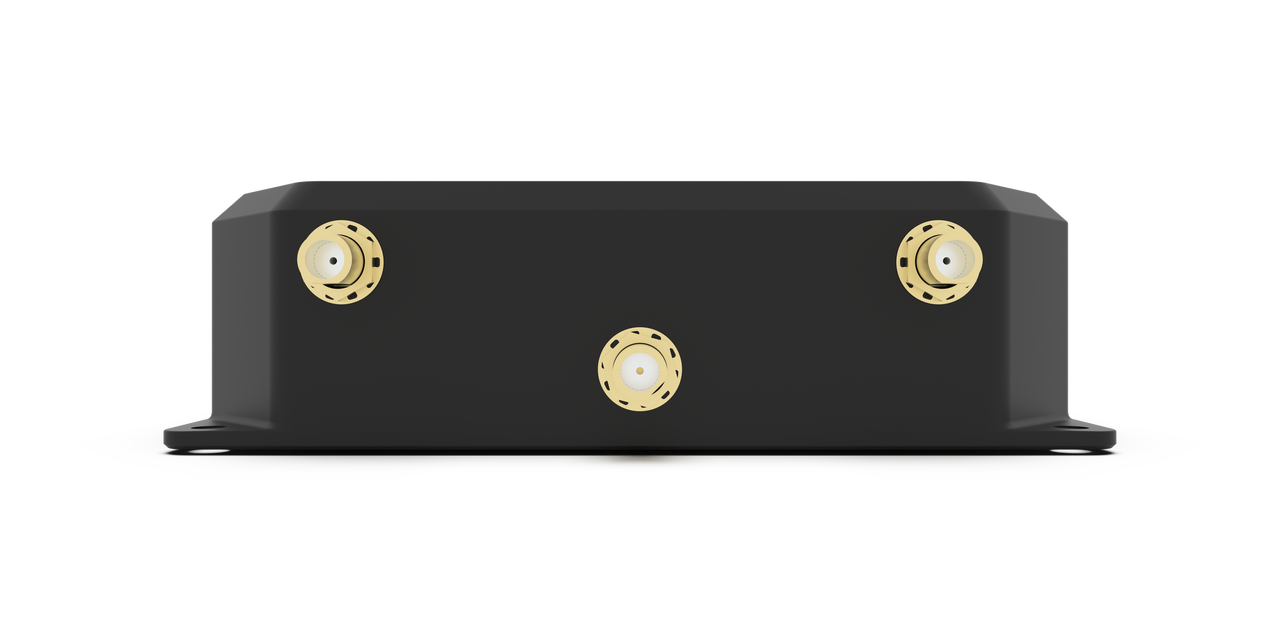

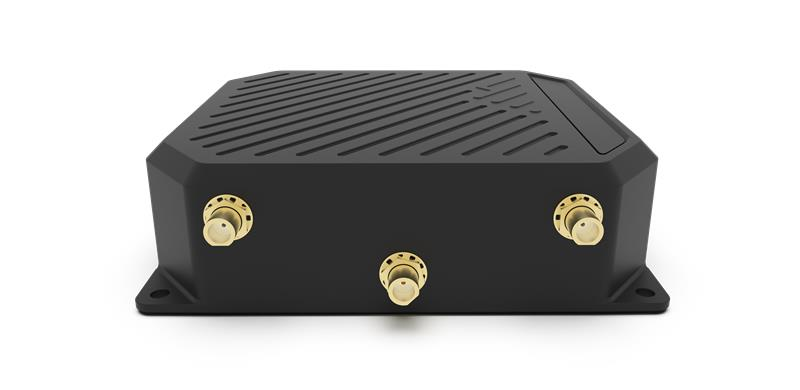

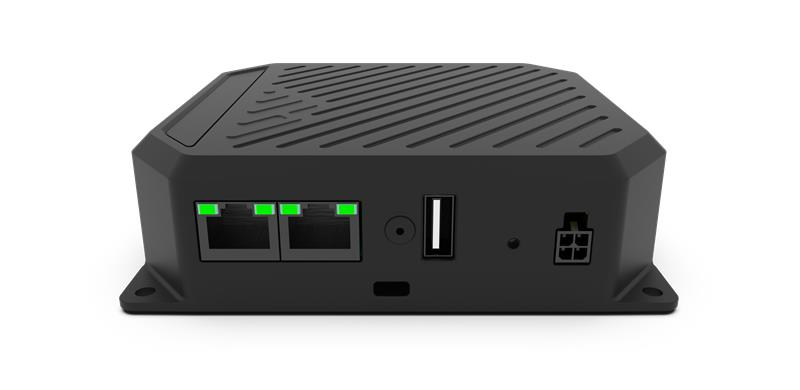

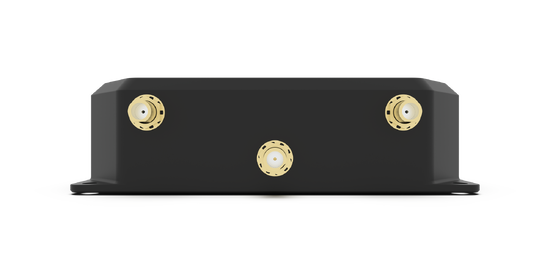

Remote Access (RACCESS) is a connected services offering that enables secure access for remote diagnostics and real-time technical support from the Legrand Remote Operations Center (ROC). RACCESS includes both hardware to enable a secure remote connection and a first-year enhanced warranty.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Remote diagnostic support for start-up and troubleshooting
- Factory-provided programming and configuration
- Real-time system overview and training for facility managers/personnel
- Dedicated cellular modem for a secure connection
- Relocatable cellular antenna
- Dedicated priority access to Legrand Level 2 support experts
- Customer-initiated remote diagnostic testing with notification of device problems
Specifications
General Info
| Color | Black | ||
| Product Series | RACCESS | ||
| Type | Modem, Support Service | ||
| Finish | Matte | ||
| Application Sector | Commercial | ||
| Product Line | Wattstopper | ||
| Country Of Origin | United States | ||
| Installation Location | Enclosure, Network Rack | ||
| Warranty Type | 1-Year | ||
| Standard | UL, cUL, RoHS, DLC | ||
| UPC Number | 754182941803 |
Dimensions
| Product Depth US | 1.3 in | ||
| Product Length US | 4.8 in | ||
| Product Width US | 4.6 in | ||
| Product Weight US | 18.2 oz |
Listing Agencies / 3rd Party Agencies
| cUL Listed | Yes |
Additional Information
| DesignLights Consortium Qualified System | Yes | ||
| Product Has Potential to Contribute to LEED | Yes | This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information. | |
| Energy Savings | No | ||
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Technical Information
| Antenna Type | 2x2 MIMO | ||
| Antenna Pattern | Omni-directional | ||
| Number of Connections | 2 | ||
| Connector Type | RJ-45 | ||
| Compatibility | LMBC, LMBR, LMJA-9XXX, NB, SSU, Wattstopper PLUS Wired, Wattstopper PLUS Wireless | ||
| Indicator | Device Status LED | ||
| Indoor/Outdoor | Indoor | ||
| Input Voltage | 9 to 33 VDC | ||
| Mounting Type | Adhesive, Magnetic, Wall | ||
| Operating Temperature | -4°-140°F | ||
| Operating Temperature Max | 140 °F | ||
| Operating Temperature Min | -4 °F | ||
| Operating Humidity | 10-90% RH (Non-Condensing) | ||
| Storage Temperature | -40° - 185° F |
Resources
Installation Instructions
