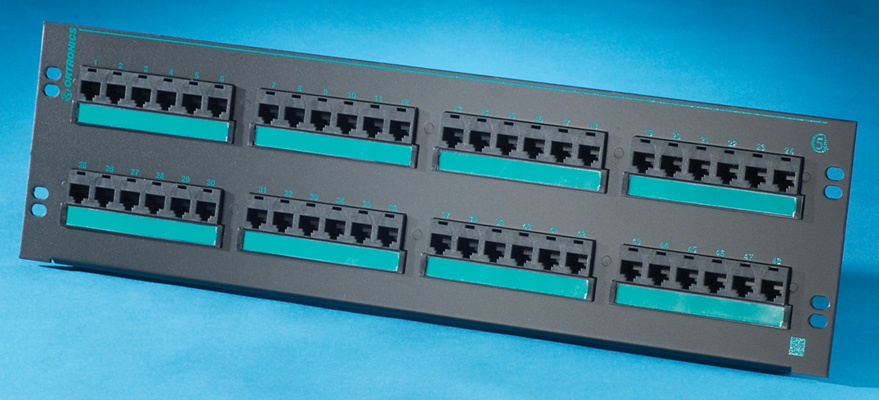

CLARITY 5E PANEL, CAT5E, SIX-PORT MODULES

PSD5E6U48 Ortronics
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 462ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Clarity 5E Patch Panel is component compliant to EIA/TIA Category 5e performance requirements. Standard density design provides additional space for cabling. Jacks are grouped in six-port modules. Part of the Clarity 5E link and channel solution that provides significant installed performance headroom.
Color Black
WHERE TO BUY
Features

Features

  • ETL verified to TIA Category 5e component spec: Elevated component performance.
  • Center tuned to Clarity 5E patch cords: More transparent mated union.
  • Universal wiring: Supports T568A and T568B installs.
  • High density design: Maximizes rack utilization.
  • RoHS compliant: Lead free.
Specifications

Specifications

General Info
Color Black
UPC Number 662875447900
Country Of Origin Mexico
Product Line Legrand
Application Sector Commercial/Industrial
Type Panel
Additional Information
RoHS Conformant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Resources

Resources

Cutsheet
PSD5E6U48 Cutsheet
pdf
Instruction Sheet
Clarity 5E 48-port panel, Cat5e, six-port modules, 19" x 3.5", OR-PHD5E6U48
pdf
CAD Drawings
Clarity 5E 48-port panel, Cat5e, six-port modules, 19" x 5.25", OR-PSD5E6U48
dwg
Specifications
Clarity 5E 48-port panel, Cat5e, six-port modules, 19" x 5.25", OR-PSD5E6U48
pdf
Unknown
Clarity 5E hinged 24-port panel with lower cable management panel, Cat5e, six-port modules, 19" x 3.5", OR-PHD5E6U24HM
xls
BIM Models
Patch Panel Flat Clarity
zip
User Guides
Legrand Patch Panel Comparison Guide
pdf
