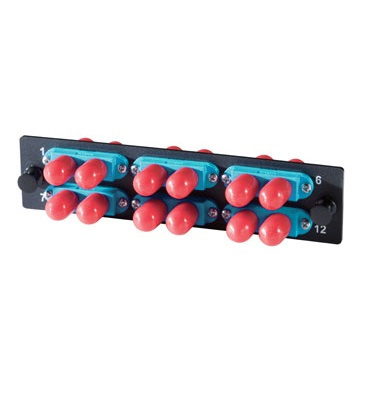

Q Series OFP Adapter Panel 6 ST-Duplex (12 fibers) multimode aqua
OFP-STD12LC
Ortronics
Bazaarvoice SAP Hybris Integration Version 2.8.1
The Ortronics OptiMo®- -OFP series adapter panels are used with our popular FC Series modular fiber cabinets, offering great flexibility in structured cabling design. - Front-removable adapter panels are available with LC, SC, ST, and MT-RJ adapters and feature options ideal for both single mode and multimode applications.
Fiber Type
Multi-Mode OM4
- Multi-Mode OM4
- Single-Mode
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Specifications
General Info
| Color | Aqua | ||
| Type | Adapter Panel | ||
| Application Sector | Commercial, Data Center | ||
| Product Line | Ortronics | ||
| Country Of Origin | Mexico | ||
| Features | Toolless Installation | ||
| Included | Cover | ||
| Warranty Type | 5-Year | ||
| Standard | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements. | ||
| UPC Number | 662875629191 |
Dimensions
| Product Depth US | 1.1 in | ||
| Product Height US | 1.19 in | ||
| Product Width US | 5.12 in |
Technical Information
| Alignment Sleeve Material | Zirconia | ||
| Compatibility | OFP | ||
| Connectivity Footprint | Q-Series Standard Density | ||
| Connector 1 | LC Female | ||
| Connector 2 | LC Female | ||
| Durability | 500 matings | ||
| Fiber Optic Cable Type | OM3 | ||
| Number of Fibers | 12 | ||
| Number of Ports | 12 | ||
| Operating Temperature | -10°-60°C | ||
| Operating Temperature Max | 60 °C | ||
| Operating Temperature Min | -10 °C | ||
| Operating Humidity | 0-80% RH (Non-Condensing) | ||
| Return Loss | 55 dB | ||
| Shuttered Adapters | No | ||
| Simplex/Duplex | Duplex | ||
| Single/Multimode | Multimode | ||
| Storage Temperature | -40° - 75° C |
