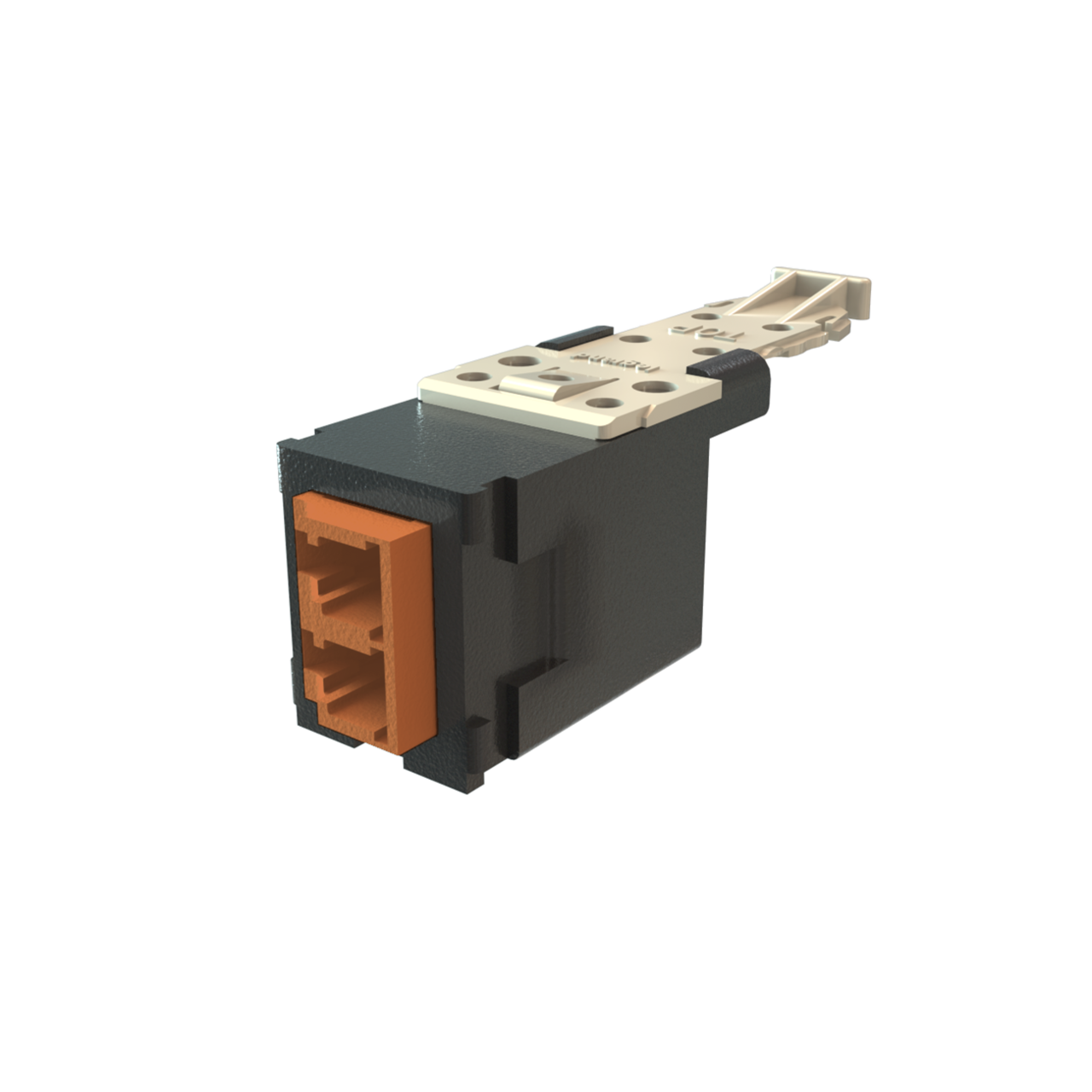

Infinium HD Fiber Module, Keyed Front Keyed Rear LC Duplex (2 Fibers), HDJ Insert, Brown Adapter Black for Panel

Legrand keyed LC fiber solutions provide a simple and convenient way to physically prevent the user from making an unauthorized connection by blocking access to specific optical ports, whether they are at a workstation outlet or in a telecommunications room or data center. This is particularly important for government, finance, military and other facilities where multiple networks having different security level access requirements may be co-located.

Color Brown

Application Sector Panel

Panel

Connector Type Keyed Front/Keyed Rear

Keyed Front
Keyed Front/Keyed Rear

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Unique Key and Color Options: Up to thirteen unique keying options/colors for a wide range of network security systems, easy identification and network management
Keyed front or Rear: Keyed LC adapters have the option to be keyed in the front only (user’s side) or on both sides (user’s and technician’s) depending on the security requirement
Compatibility: All Legrand keyed LC fiber products are engineered to be compatible with other Legrand products to provide an end to end, data center to desktop solution.
Various Footprint Options: Keyed workstation adapter modules are available for TracJack® and High Density Jack (HDJ) style Face plates and surface mount boxes for complete system design flexibility.
Keyed workstation adapter modules are available for TracJack® and High Density Jack (HDJ) style Face plates and surface mount boxes for complete system design flexibility.
Keyed LC adapters have the option to be keyed in the front only (user’s side) or on both sides (user’s and technician’s) depending on the security requirements.

Specifications

General Info

Color	Black
Type	Adapter
Application Sector	Commercial, Data Center
Product Line	Ortronics
Country Of Origin	Mexico
Features	Rear Loading, Slide Lock, Toolless Installation
Connector Color	Brown
UPC Number	662875029304
Housing Color	Black

Dimensions

Product Depth US	1.61 in
Product Height US	0.77 in
Product Width US	0.62 in

Technical Information

Alignment Sleeve Material	Zirconia
Compatibility	HDFM, HDJ
Connector 1	LC Female
Connector 2	LC Female
Ferrule	Zirconia Ceramic
Number of Fibers	2
Ferrule Diameter	1.25 mm
Number of Ports	2
Shuttered Adapters	Yes
