TracJack Module, 1-ST Multimode, 180 degree exit
63700011
Ortronics
Bazaarvoice SAP Hybris Integration Version 2.8.1

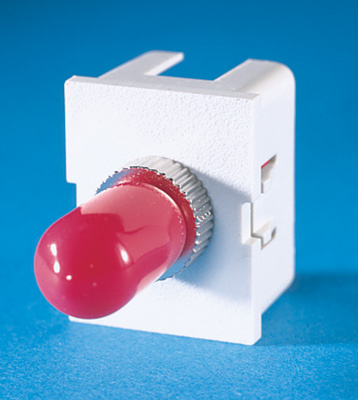

The TracJack, Multimode, ST Simplex Adapters (1-Fiber), White Adapter Plate, has one simplex adapter, with ceramic alignment sleeves, mounted at a 180 Degree exit angle. This adapter panel is 1 unit high. TracJack modules offer flexabilty with structured cabling at the workstation or in furniture with a modular design and a wide variety of connectivity options. Inteligent engineering simplifies and speeds up moves, adds, and changes with a front removeable design. Compatible With: All TracJack faceplates
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
The TracJack, Multimode, ST Simplex Adapters (1-Fiber), White Adapter Plate, has one simplex adapter, with ceramic alignment sleeves, mounted at a 180 Degree exit angle. This adapter panel is 1 unit high. TracJack modules offer flexabilty with structured cabling at the workstation or in furniture with a modular design and a wide variety of connectivity options. Inteligent engineering simplifies and speeds up moves, adds, and changes with a front removeable design. Compatible With: All TracJack faceplates
- Modular design: Flexibility in structured cabling system design.
- Front removable: Facilitates quick moves, adds, and changes.
- Fully compatible with all TracJack faceplates: Provides wide range of design possibilities.
Specifications
General Info
| Color | White | ||
| Product Type | Jack | ||
| Application Sector | Commercial, Industrial | ||
| Product Line | Ortronics | ||
| Country Of Origin | Mexico | ||
| Features | Toolless Installation | ||
| Connector Color | Metal | ||
| Standard | UL Standard | ||
| UPC Number | 662875287469 | ||
| Housing Color | White |
Dimensions
| Product Depth US | 1.09 in | ||
| Product Height US | 0.92 in | ||
| Product Width US | 0.73 in |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Technical Information
| Alignment Sleeve Material | Zirconia | ||
| Compatibility | TracJack | ||
| Connector 1 | ST Female | ||
| Connector 2 | ST Female | ||
| Ferrule | Zirconia Ceramic | ||
| Number of Fibers | 1 | ||
| Ferrule Diameter | 2.5 mm | ||
| Number of Ports | 1 | ||
| Shuttered Adapters | No |
Resources (8)
CAD Drawings
Brochure
Supporting Document
Catalog
Customer CAD PDF
Cutsheet
