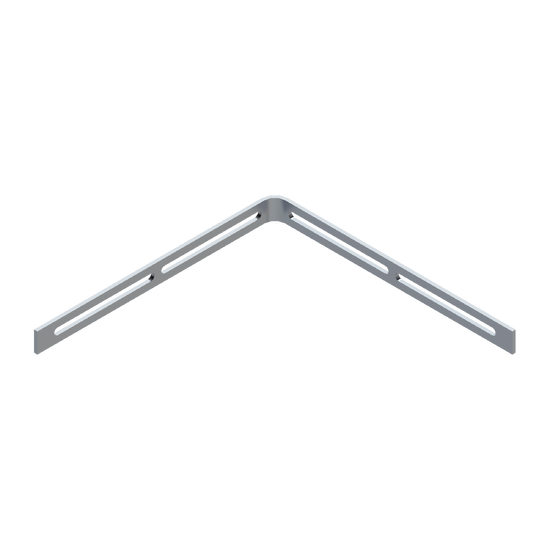

Wire Mesh 90˚ and Tee Bend Kit
This tee bend kit creates smooth direction changes in cable tray runs, supporting cables through tees or 90° bends for reliable, continuous routing. A complete range of bend solutions, including radius tees and elevation changes, enables smooth directional transitions while maintaining cable support and installation efficiency.
Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.
Wire Mesh Cable Tray delivers reliable, high-performance cable management with an open design that enhances airflow, reduces heat buildup, and maximizes cable capacity. Its modular system enables fast installation, easy routing, and seamless future upgrades. The cable tray system offers a fast, flexible, and adaptable solution for cable management with easy installation and maintenance.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- One Kit, Multiple Configurations: Includes the hardware required to create one tee fitting or two 90-degree bends, reducing the number of components needed onsite.
- Universal Slotted Design: Fits any wire mesh cable tray size and eliminates the need for precise tray alignment during installation.
- Secure UL-Classified Splice: Creates a strong, code-compliant connection between field-fabricated tray sections.

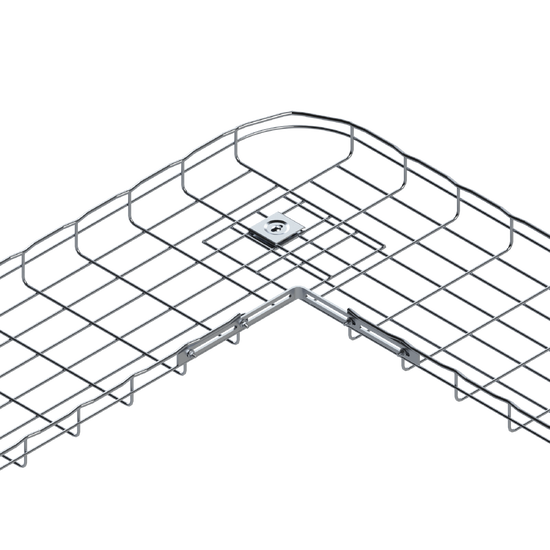

- Optimized Bend Placement: Installs between the tray’s top two wires to support properly formed 90-degree bends and tee intersections.
- Multiple Finish Options: Available in electrozinc, painted, high-resistance, black painted and stainless steel finishes for indoor, outdoor and demanding installation environments.
Specifications
General Info
| Type | Bends | ||
| Application Sector | Data Center | ||
| Product Line | Cablofil |
Additional Information
| Product Environmental Profile | Yes |
Additional Information
Cablofil Product Code
Our part numbers make it easy to identify part type, size and finish. Please use this chart to identify your part numbers when ordering or specifying any Cablofil product.
