Your go-to floor box just got better. Resource RFB Series Floor Boxes are designed for maximum efficiency throughout an entire building, bringing versatile recessed activations for power and data services to open space areas or directly to workstations. No matter what size you choose, components and accessories work across the entire line interchangeably. Simply mix-and-match as needed for your project. Improved wire and cable routing makes wire pulling much easier in adjacent compartments and around corners. Available in 2-, 4-, 6- and 10-gang models with a variety of covers, colors and profiles.* Installs in tile, stone, carpet, terrazzo, wood and polished concrete. Perfect for many applications, including schools, financial institutions, commercial office buildings, hospitality and residential.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.

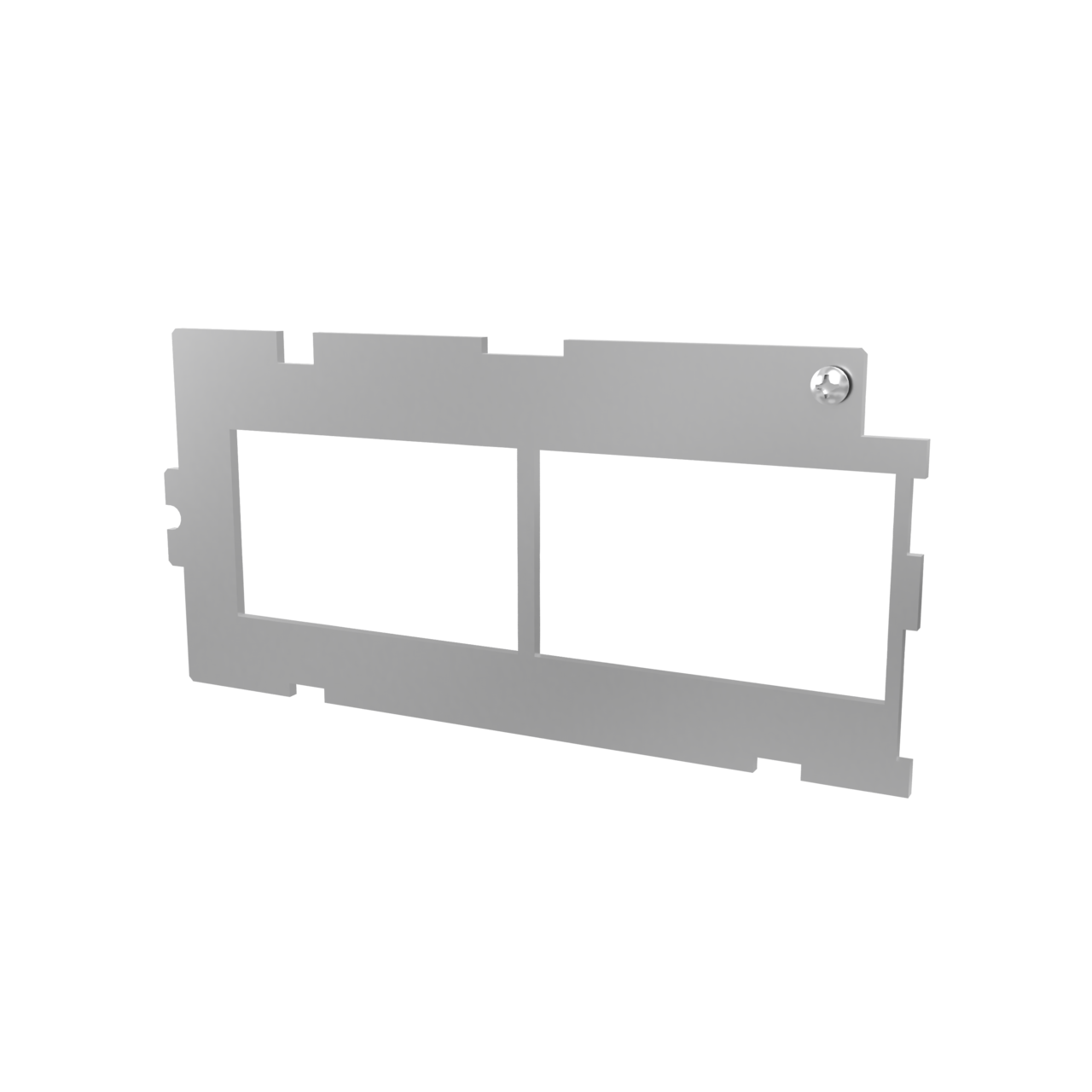

Specifications
General Info
| Color | Gray | ||
| Product Type | Device Plate | ||
| Material | Steel | ||
| Finish | Pre-Galvanized | ||
| Application Sector | Commercial | ||
| Product Family / Series / Group | RFBA Series | ||
| Product Line | Wiremold | ||
| Country Of Origin | United States | ||
| Warranty Type | 1-Year from Installation or 2-Years from Day of Sale | ||
| Standard | UL514 | ||
| UPC Number | 786564105626 |
Dimensions
| Product Weight US | 0.21 lb |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | E2961 | ||
| cULus Listed | Yes |
Trade Programs
| USMCA | Yes |
Additional Information
| Product Has Potential to Contribute to LEED | Yes | This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information. | |
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Resources
Cutsheet
Installation Instructions
CAD Drawings
RFBA2R25, RFBA2R25OG CAD Drawing - 3149
dxf
RFBA2R30, RFBA2R30OG CAD Drawing
dxf
RFBA4R25, RFBA2R25OG CAD Drawing - 3151
dxf
RFBA4R30, RFBA2R30OG CAD Drawing
dxf
RFBA6A CAD Drawing
dxf
RFBAAAP CAD Drawing
dxf
RFBAB CAD Drawing
dxf
RFBADEC CAD Drawing
dxf
RFBADP CAD Drawing
dxf
RFBAMAAP CAD Drawing
dxf
RFBAS1 CAD Drawing
dxf
RFBAS2 CAD Drawing
dxf
Show More
BIM Models
Catalog
Sell Sheet
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Can I fit (1) XLR and (2) Shielded CAT6 Jacks in this plate and what manufacturers products are compatible with this product?
Hi,
See the below link for information on that item. If the adapters do not seem like that would work with you, feel free to contact technical support for further assistance at 1-844-957-3783, option 2 for Wiremold, followed by option 2 again for tech support.
https://legrand.my.site.com/knowledgebase/s/article/Floor-Boxes-How-
to-install-low-voltage-jacks-in-the-RFBA6A
Date published: 2026-05-07
How many RFBA6A comm pates do we need to accommodate 4 TracJack jacks in each RFBA4R30 floor box?
Hi,
One RFBA6A would be able to accommodate four jacks.
Thanks,
Date published: 2025-12-15
We are attempting to install Panduit Mini-com jacks in a floor box with a bag of parts labeled "RFBA6A". what Panduit mini-com parts are compatible with this system? Thanks.
Hello. The RFBA6A plate includes two AC-2AB bezels, which will accept Panduit's CHI2M module for their Mini-Com jacks. Thanks!
Date published: 2025-03-20
I'm working with Wiremold Floor Boxes and need to provide a plate and bezel. The part # on the bag that it calls for is a RFBA6A. I need to be able to put 2 Hubbell Keystone jacks into this floor box. Can you please tell me the part # of the bezel need
Hello. The RFBA6A Communications Plate includes a variety of bezels and adapters, including the CM2 series modules that accommodate standard keystone jacks. Thanks!
Date published: 2024-09-04
Reference RFBA6A, does it allow the use of three CM2-U2AMP modules?
Hi Sergio,
That plate will come with 2 bezels that would each accept 1 CM2-U2AMP module. You could only fit a total of 2 CM2-U2AMP modules in that plate.
Thanks,
Date published: 2023-07-05
