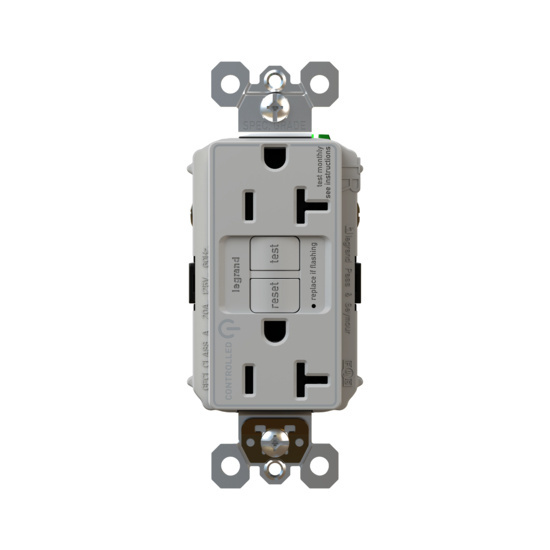

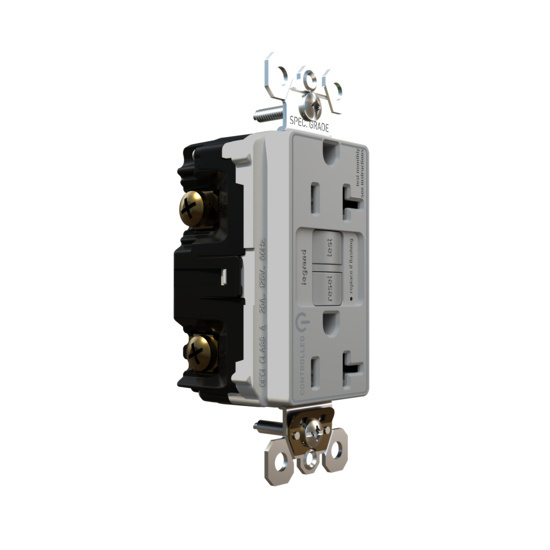

Dual Controlled Specification Grade Self-Test GFCI, 125V, Gray

2097TRCDGRY Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 32ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The Pass & Seymour® Dual Controlled Specification Grade Self-Test GFCI receptacle with SafeLock® Protection conducts an automatic test every three seconds, ensuring it’s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.

Features

  • Code compliant controlled receptacle marking with abrasion resistant ink is NEMA-approved and compliant with 2023 NEC, CA Title 24, Part 6: Building Energy Efficiency Standards, ASHRAE 90.1 Energy Efficiency Standard 90.1, and the 2021 International Energy Conservation Code (IECC)
  • Patented SafeLock® Protection: if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected
  • Tamper-resistant automatic shutter system prevents young children from inserting common household objects
  • The indicator light flashes if the device fails the self-test, signaling that the GFCI should be replaced
  • Side or internal screw-pressureplate back wire termination with #14 – #10 AWG stranded or solid, copper or copper-clad conductors
  • Captive screws make for easier installation
  • Ground terminal clamp allows for fast installation
  • Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space
  • Prevents line-load reversal miswire: No power to the face or downstream receptacles if wired incorrectly
  • High-impact-resistant, thermoplastic construction for superior strength and durability
  • Thinner profile speeds installation by leaving more room for wires in the box
  • Auto-ground clip assures a positive ground to metal box
  • The most durable GFCI available. Exceeds UL943 voltage surge requirements

Specifications

General Info
Product Line Pass & Seymour
Color Gray
Finish Matte
UPC Number 785007432824
Country Of Origin China
Application Sector Commercial
Standard RoHS, CSA, cULus, UL
Type GFCI, Outlet, Tamper-Resistant
Additional Information
RoHS Conformant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Listing Agencies / 3rd Party Agencies
CSA Listed Yes
cULus ListingNumber  E140596
cULus Listed  Yes
CSA File Number  CSA C22.2 No. 223, CSA C22.2 No. 42
Technical Information
Indoor/Outdoor Indoor
Environmental Conditions 85% (relative humidity, non-condensing)
