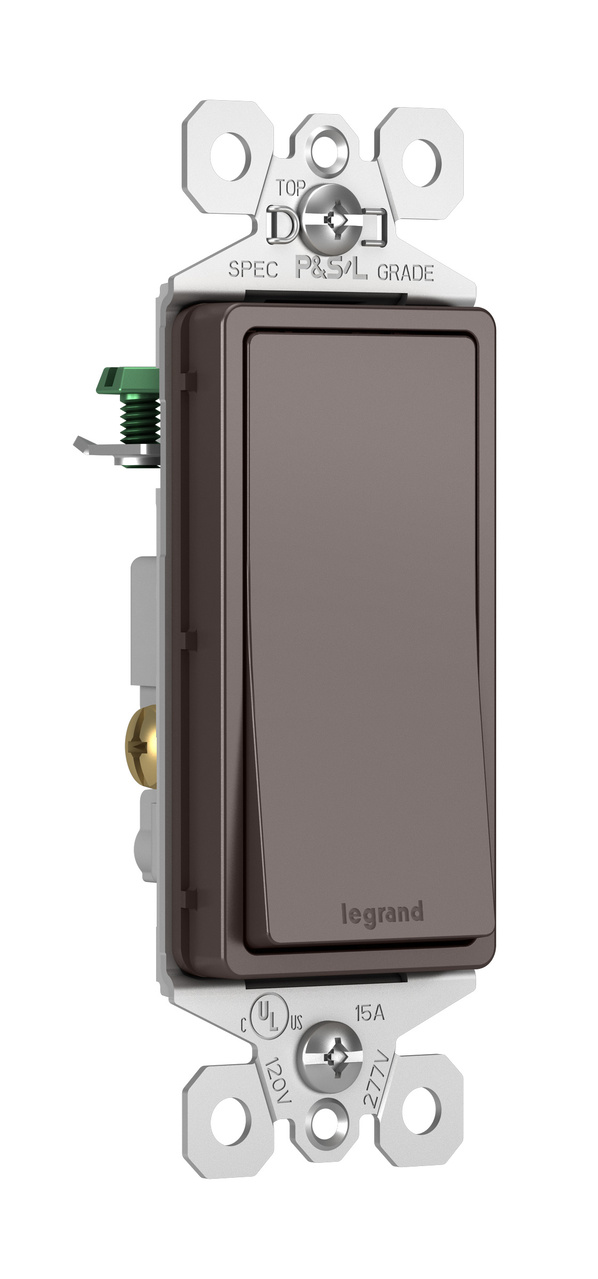

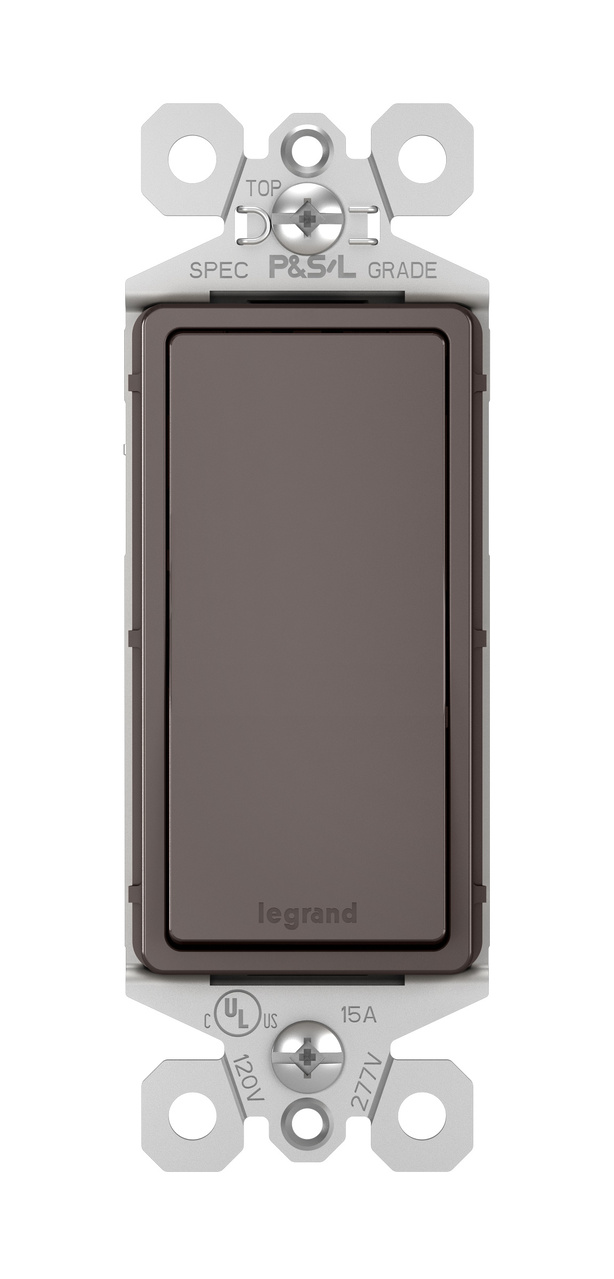

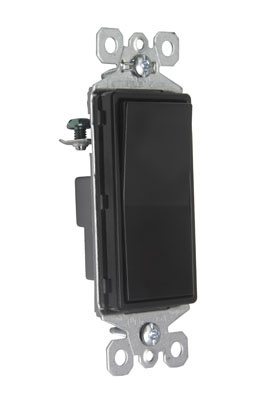

radiant® 15A Self-Grounding Single-Pole Switch

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 1500ms
  • bvseo-msg: Execution timed out, exceeded 1,500ms;

Providing on/off control of a light or fixture from a single location, this switch is also designed to automatically ground to the electrical box when installed. Ideal for homes in highly-populated cities or regions where structures may not already be grounded for electrical safety. Part of the radiant® Collection, it also features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Not sure if your home's electrical wiring is grounded? Your outlets might be a clue. If your home has outlets with only two slots for plug prongs, it is unlikely grounded. Tester devices are also available to confirm proper grounding, or you can always call your local electrician for an inspection.
Color Brown


  • Part of the all-new radiant: collection.
  • Smooth paddle action.
  • High-impact resistant thermoplastic construction.
  • External screw-pressure-plate back and side wired. Accepts #12 and #14 AWG.
  • Push wire #14 AWG.
  • Narrow back body leaves more room for wires in the box.
  • Extra-long, through-body strap eliminates floating installations and imperfect applications.
  • Easy-access green hex head ground screw.
  • Tri-drive ground, terminal and mounting screws.
  • Automatic ground clip.
  • For covering patents, see www.legrand.us/patents.


General Info
Color Brown
UPC Number 785007256246
Country Of Origin Mexico
Product Line Pass & Seymour
Number of Switches 1
Warranty Type 1-Year Limited Warranty
Product Width US 1.43 in
Product Height US 4.19 in
Product Depth US 1.27 in
Additional Information
Product Environmental Profile Yes
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Number of Poles Single Pole
Number of Gangs 1
Voltage 120 V, 277 V
Mounting Type Box
