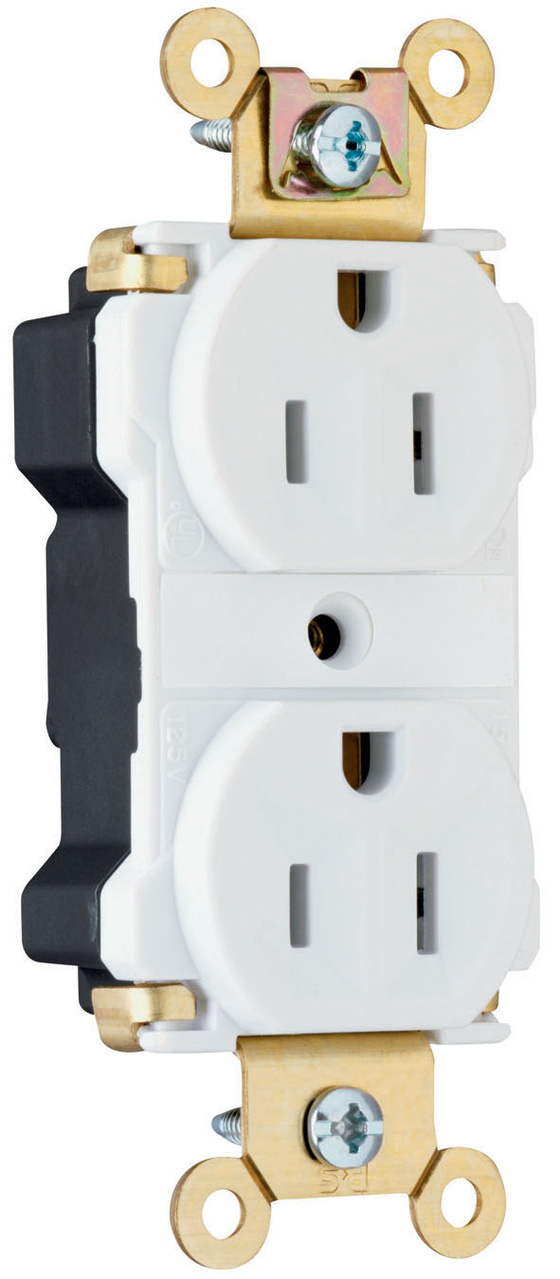

PlugTail® Industrial Extra Heavy Duty Spec Grade Receptacles, 15A, 125V, White

PlugTail® Industrial Extra Heavy-Duty Spec Grade Receptacles, 15A, 125A

Color White

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

.036 inch thick, brass, triple-wipe power contacts for lasting retention.
No exposed terminals create a finger safe application before, during, and after installation.
Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
Crimped and welded contacts.
Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
Large brass contacts snugly terminate on device blade terminals.
Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only

General Info

Color	White
Application Sector	Commercial, Industrial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Single Piece Plated Steel Mounting Strap
Wall Plate Included	No
Number of Receptacles	2
Outlet Type	Straight Blade
Warranty Type	1-Year Limited Warranty
Standard	UL 498, FEDSPEC
UPC Number	785007860283

Dimensions

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes
