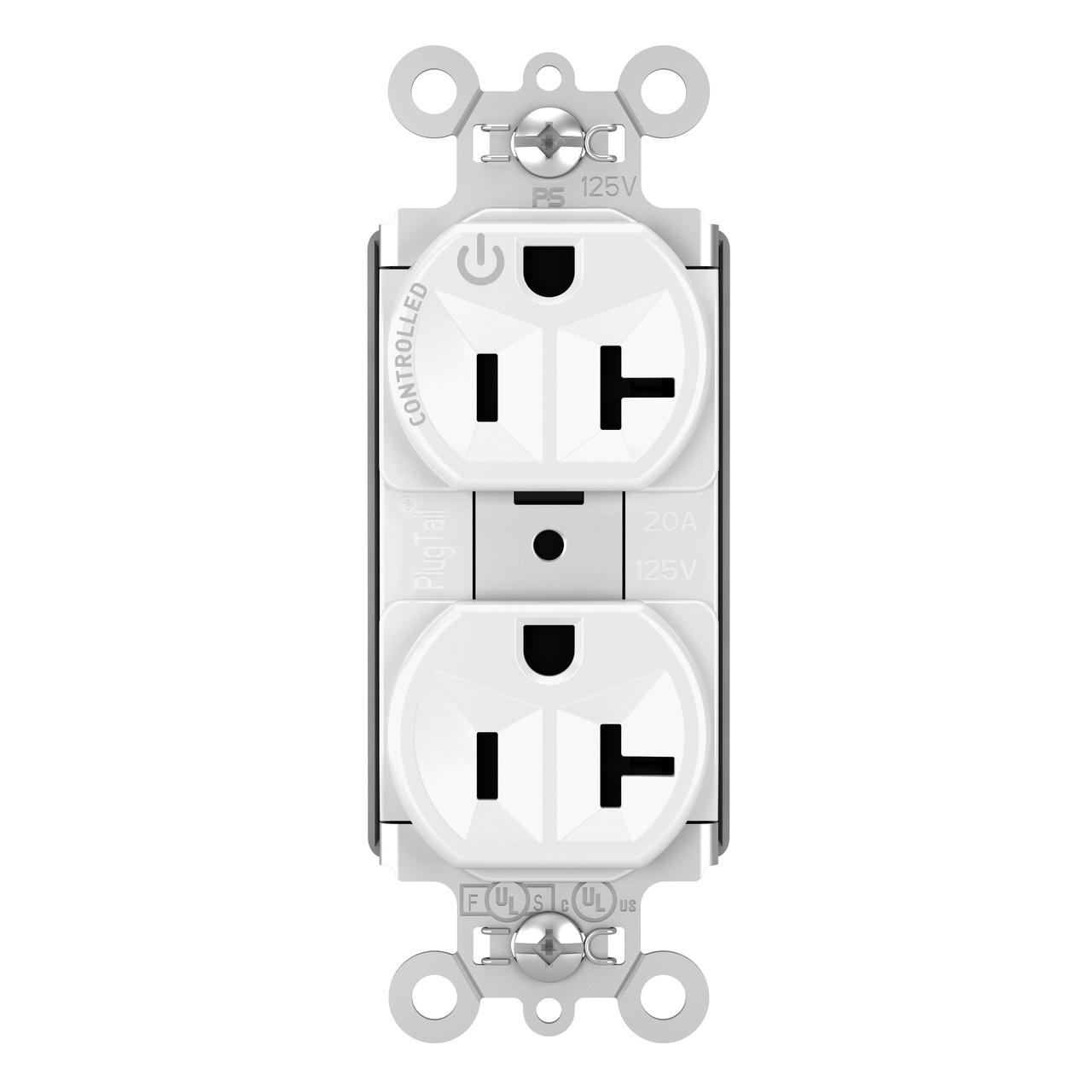

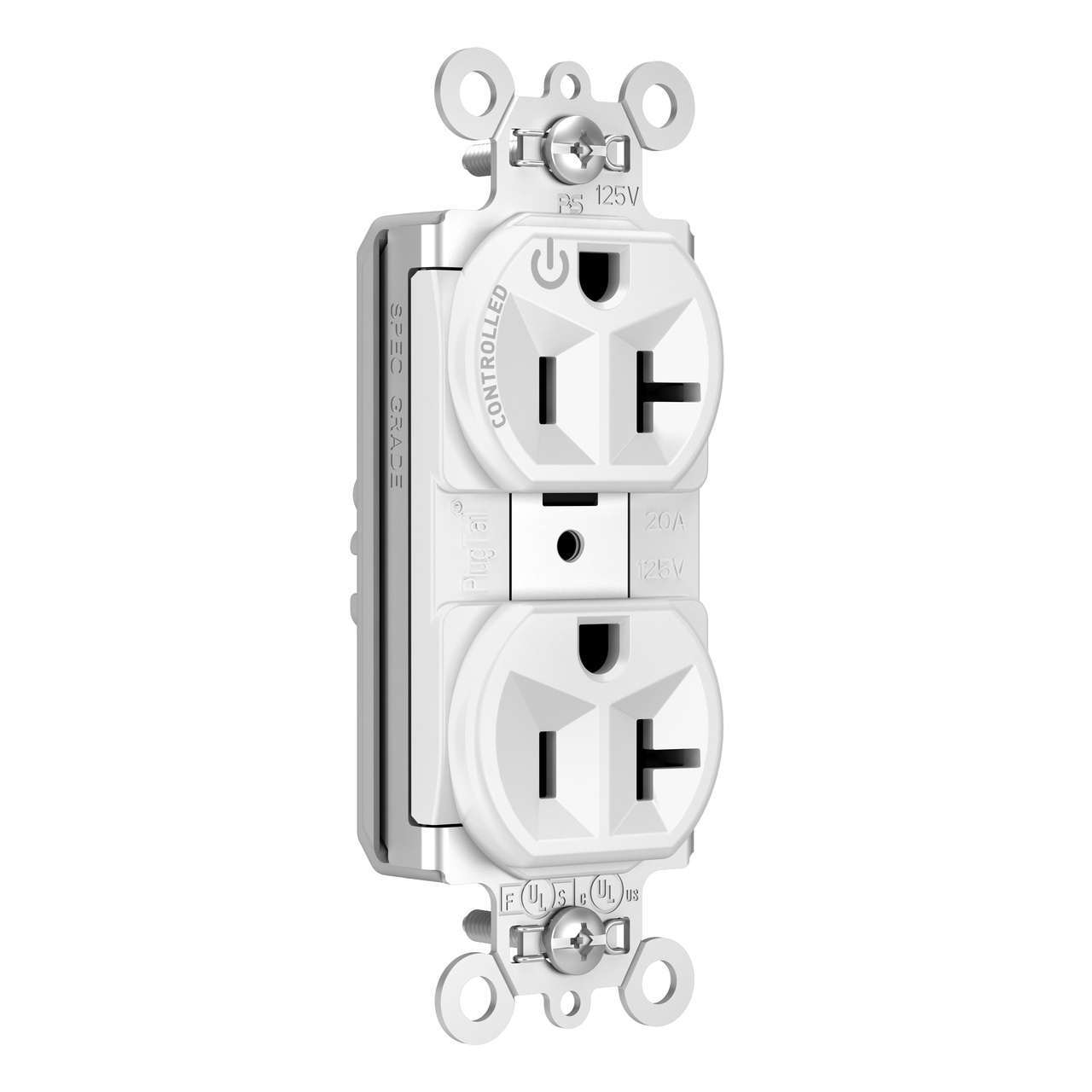

PlugTail® Tamper-Resistant Heavy Duty Spec Grade Plug Load Controllable Receptacle, 20A, 125V, White

These durable, dependable receptacles feature a permanently marked, differentiated solution that meets all necessary code requirements. For detailed PlugTail® information, visit our PlugTail® Headquarters. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Color White

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

.032 inch thick, brass, triple-wipe power contacts for lasting retention.
Plated steel wrap strap design for maximum durability and corrosion resistance.
No exposed terminals create a finger safe application before, during, and after installation.
Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
Dual mechanical shutter system to help prevent insertion of foreign objects (TR models).
Permanent controlled markings on face of receptacle compliant with ASHRAE 90.1, CA Title 24, and NEC.
Auto-ground clip assures positive ground.
Half-controlled versions include welded, pre-wired lead that control top half of receptacle for split circuit applications.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Wire Size: #12 AWG THHN

Specifications

General Info

Color	White
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Plugload
Wall Plate Included	No
Number of Receptacles	2
Outlet Type	Straight Blade, Tamper-Resistant
Warranty Type	1-Year Limited Warranty
Standard	UL Listed, CSA Listed, FSUL, FEDSPEC
UPC Number	785007051810

Dimensions

Product Depth US	0.78 in
Product Height US	2.635 in
Product Width US	1.322 in

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Technical Information

Amperage	20 A
Connection Location	Back Only
Wire Connection Type	PlugTail
Dielectric Strength	Withstands 2000V minimum
Environmental Conditions	UL94 V2
Indoor/Outdoor	Indoor
Is Tamper-Resistant	Yes
NEMA Configuration Code	5-20R
Number of Poles	Double Pole
Number of Wires	4
Operating Temperature	-40°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-40 °C
Phase	Single
Voltage	125.0 V
Wire Size	12 AWG
