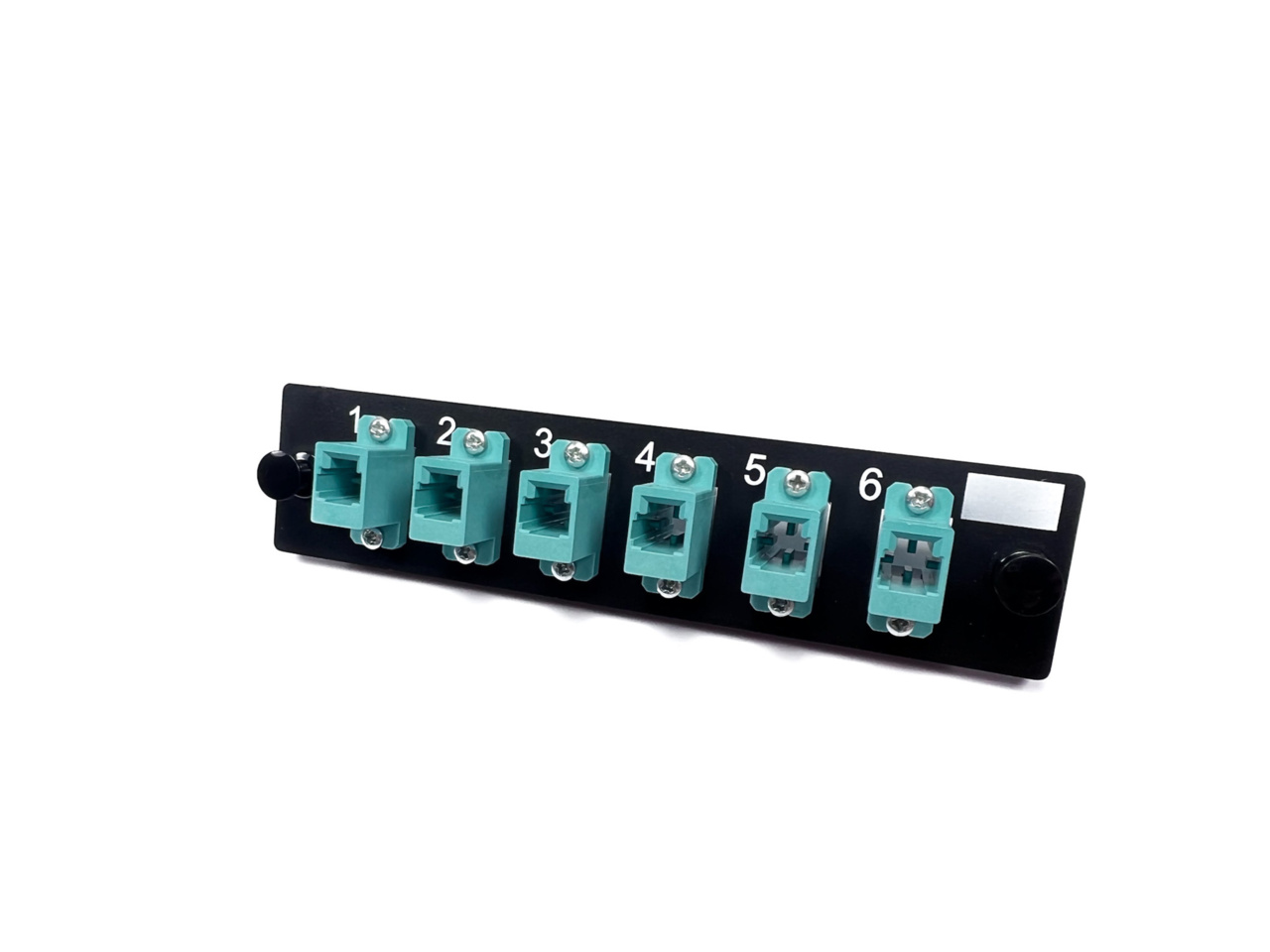

Full size image of black Q-Series OFP Standard Density Adapter Panels with six aqua cable ports followed by a white background
Full size image of black Q-Series OFP Standard Density Adapter Panels with six aqua cable ports followed by a white background
Full size image of black Q-Series OFP Standard Density Adapter Panels with six aqua cable ports followed by a white background

Q-Series OFP Adapter Panel, 6, MTRJ, OM3

OFP-MTD12LA Ortronics
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 18ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Q-Series OFP Standard Density Adapter Panels offer pass-through connections and front-loading access for Q-Series Enclosures. Compatible with Q-Series Rack Mount or Wall Mount Fiber Enclosures.

Color None
Application Sector Commercial
  • Commercial
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Fiber port labeling: Provides fiber port identification for easier administration
  • Easy install and removable: Uses plunger/grommet fastener
Specifications

Specifications

General Info
Color Aqua
Type Adapter Panel
Material Thermoplastic
Application Sector Commercial, Data Center
Product Line Ortronics
Country Of Origin Mexico
Features Toolless Installation
Included Cover
Warranty Type 5-Year
Standard RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements.
UPC Number 662875631293
Dimensions
Product Depth US 1.16 in
Product Height US 1.19 in
Product Width US 5.12 in
Technical Information
Alignment Sleeve Material Zirconia
Compatibility OFP
Connectivity Footprint Q-Series Standard Density
Connector 1 MTRJ Female
Connector 2 MTRJ Female
Durability 500 matings
Fiber Optic Cable Type OM3
Number of Fibers 12
Polarity Type Universal
Number of Ports 12
Operating Temperature -10°-60°C
Operating Temperature Max 60 °C
Operating Temperature Min -10 °C
Operating Humidity 0-80% RH (Non-Condensing)
Simplex/Duplex Duplex
Single/Multimode Multimode
Storage Temperature -40° - 75° C
