TracJack Module, 2-SC Simplex (2 Fibers) Multimode, Aqua adapters, 180 degree exit
63700081
Ortronics
Bazaarvoice SAP Hybris Integration Version 2.8.1

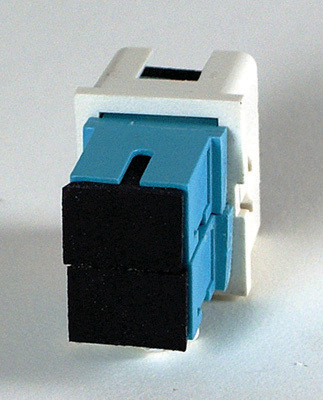

The TracJack, Dual, Multimode, SC Simplex Adapters (2-Fiber), White Adapter Plate, has two aqua SC simplex adapters, with ceramic alignment sleeves, mounted at a 180 Degree exit angle. This adapter panel is 1 unit high. TracJack modules offer flexabilty with structured cabling at the workstation or in furniture with a modular design and a wide variety of connectivity options. Inteligent engineering simplifies and speeds up moves, adds, and changes with a front removeable design. Compatible With: All TracJack faceplates
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
The TracJack, Dual, Multimode, SC Simplex Adapters (2-Fiber), White Adapter Plate, has two aqua SC simplex adapters, with ceramic alignment sleeves, mounted at a 180 Degree exit angle. This adapter panel is 1 unit high. TracJack modules offer flexabilty with structured cabling at the workstation or in furniture with a modular design and a wide variety of connectivity options. Inteligent engineering simplifies and speeds up moves, adds, and changes with a front removeable design. Compatible With: All TracJack faceplates
- High quality insert for use in multimedia wallplates
Specifications
General Info
| Color | Fog White | ||
| Product Type | Jack | ||
| Application Sector | Commercial, Industrial | ||
| Product Line | Ortronics | ||
| Country Of Origin | Mexico | ||
| Features | Front Loading, Toolless Installation | ||
| Connector Color | Aqua | ||
| Standard | UL Standard | ||
| UPC Number | 662875659631 | ||
| Housing Color | Fog White |
Dimensions
| Product Depth US | 1.21 in | ||
| Product Height US | 0.92 in | ||
| Product Width US | 0.73 in |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Technical Information
| Alignment Sleeve Material | Zirconia | ||
| Compatibility | TracJack | ||
| Connector 1 | SC Female | ||
| Connector 2 | SC Female | ||
| Ferrule | Zirconia Ceramic | ||
| Number of Fibers | 2 | ||
| Ferrule Diameter | 2.5 mm | ||
| Number of Ports | 2 | ||
| Shuttered Adapters | No |
Resources (6)
Brochure
Supporting Document
Catalog
Cutsheet
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Q & A
Dear Legrand I am wondering if there is a product with Aqua SC module in Red housing? (P/N 63700081-42) Please advise.
Hello, Yes, The part number you have is correct for an Aqua SC DX with a Red Housing. 63700081-42.
Date published: 2024-12-03
