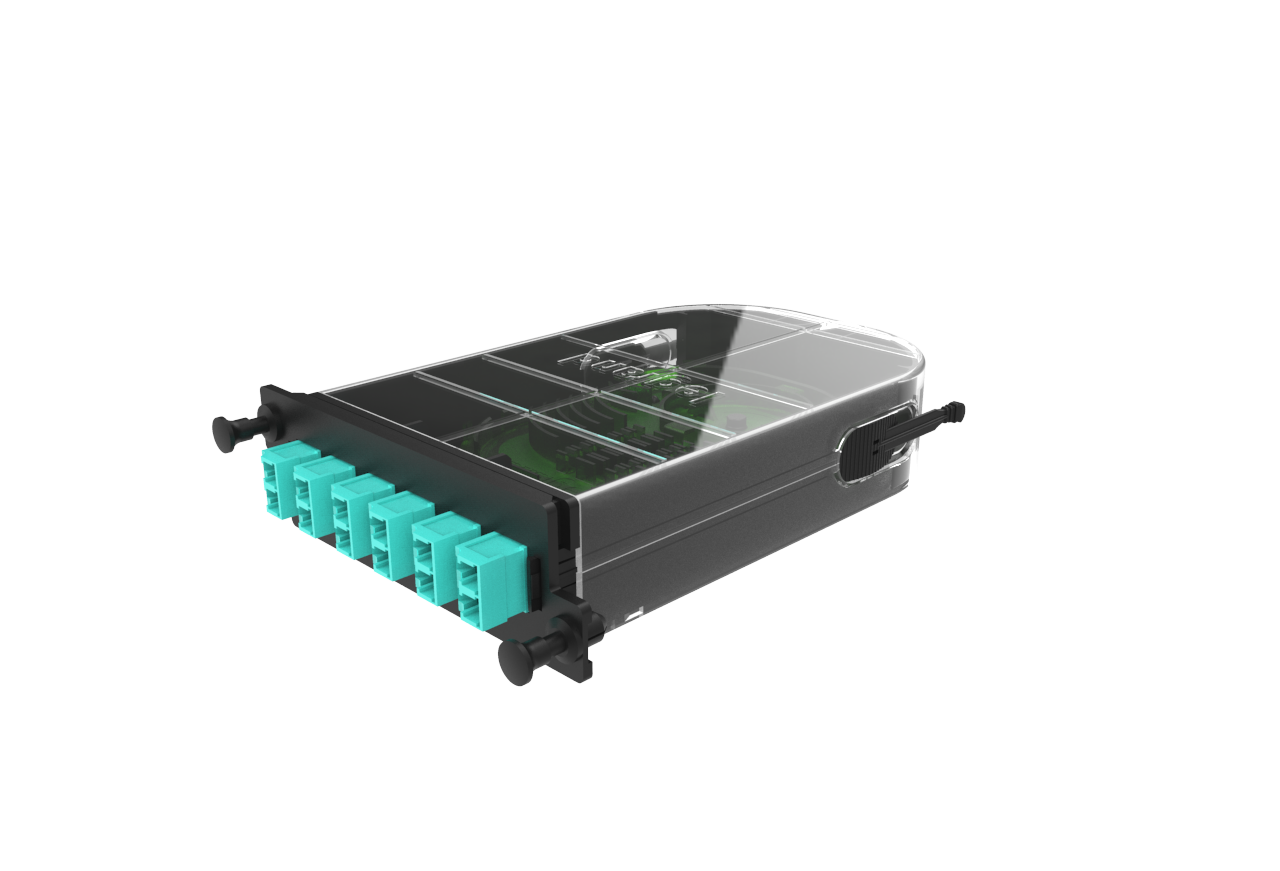

Image of teal and black cassette with transparent top and 12 ribbon fiber LC adapters

Infinium Ultra M4 Splice Cassette, 12 Ribbon Fiber, LC Duplex, OM4

Infinium M4 Splice Cassettes enable industry leading performance, fast field termination, and provide cable management within the housing. The Splice Cassettes are designed for use with Single-Mode (OS2) or Multimode (OM4/OM5) Fiber, Houses 12-24 fibers and are available in LC Duplex or LC Quad port configurations. Compatible with Infinium HD-E Rack Mount Fiber Enclosure with M4 Drawer Face.

Category Performance Rating Infinium Ultra

Fiber Type Multimode Ribbon Fiber Splice Cassette

Multi-Mode Single Fiber Splice Cassette
Multimode OM5
Multimode OM5 Single Fiber Splice Cassette
Multimode Ribbon Fiber Splice Cassette

Number of Ports 12

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Flexible Install: Mount from the front or the rear of an enclosure or panel
Installation Convenience: Do all splicing and managing work outside the enclosure
Clear Top: Enables fast and easy fault identification
Compact: These Splice cassettes provide a very compact splicing solution
Front or Rear Mounting: Simplify installation by mounting from the front or rear of the? enclosure panel
Flexible Install: Mount from the front or rear of an enclosure or panel
Patented Splice Management: Simplify Splicing and fiber management outside of the cassette with the removable fiber splice manager

Specifications

General Info

Color	Aqua
Type	Cassette
Material	Thermoplastic
Application Sector	Commercial, Data Center
Product Line	Ortronics
Country Of Origin	China
Features	Shuttered
Included	(12 or 24) Fiber Pigtails, Protective Dust Caps, Splice Management Tray, Splice Protection Sleeves
Warranty Type	5-Year
Standard	TIA-568-C.3
UPC Number	662875027058

Dimensions

Product Depth US	4.77 in
Product Height US	1.14 in
Product Width US	3.45 in

Technical Information

Alignment Sleeve Material	Zirconia
Compatibility	HDFP, LM4, M4
Connectivity Footprint	Q-Series High Density
Durability	500 matings
Fiber Optic Cable Type	OM3, OM4
Number of Fibers	12
Maximum Insertion Loss	0.15 dB
Polarity Type	Universal
Typical Insertion Loss	0.25 dB
Number of Ports	12
Operating Temperature	-10°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-10 °C
Operating Humidity	0-80% RH (Non-Condensing)
Performance Level/Tier	Ultra
Shuttered Adapters	Yes
Simplex/Duplex	Duplex
Single/Multimode	Multimode
Storage Temperature	-40° - 75° C

Resources

Is there a splice cassette for OM3 or should we use the M4LCQ24-50ES4A1?

Asked by: Anonymous
