Stainless Steel Ladder Tray Overhead Supports
Stainless-Supports-OVERHEAD
Cablofil
Series
A series reflects connected component products for individual purchase.

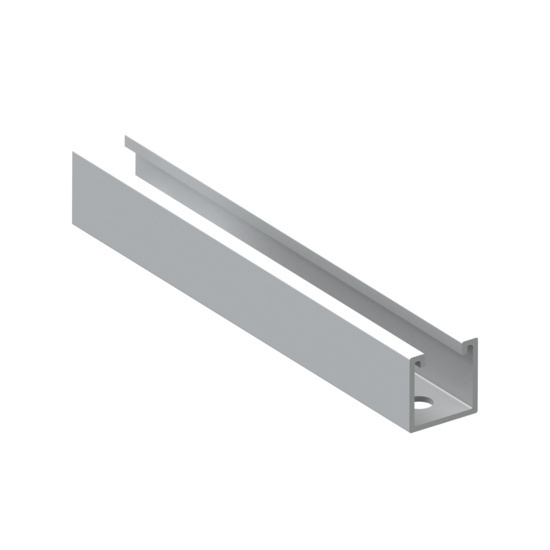

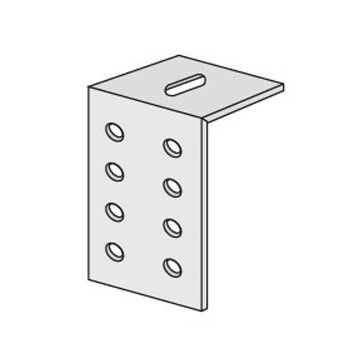

Overhead supports allow for cable tray to be hung with threaded rod. Hanger channels have 9/16'' diameter holes to accept 1/2'' threaded rods. Overhead hanger clamps are designed to trapeze hang cable tray from the side rails. Vertical hanger splices provide a means to support vertical tray with threaded rods.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
Overhead supports allow for cable tray to be hung with threaded rod. Hanger channels have 9/16'' diameter holes to accept 1/2'' threaded rods. Overhead hanger clamps are designed to trapeze hang cable tray from the side rails. Vertical hanger splices provide a means to support vertical tray with threaded rods.
- PW Stainless Steel cable tray provides the heavy duty support required for large power cables.
- Tray construction and markings are per the latest edition of NEMA Standards Publication BI 50015 (Previously VE1), CSA C22.2 No. 126
- Overhead supports allow for cable tray to be hung with threaded rod.
Specifications
General Info
| Product Type | Supports | ||
| Material | Stainless Steel 316 | ||
| Application Sector | Industrial | ||
| Product Family / Series / Group | Stainless Steel Ladder Tray | ||
| Product Line | Cablofil |
