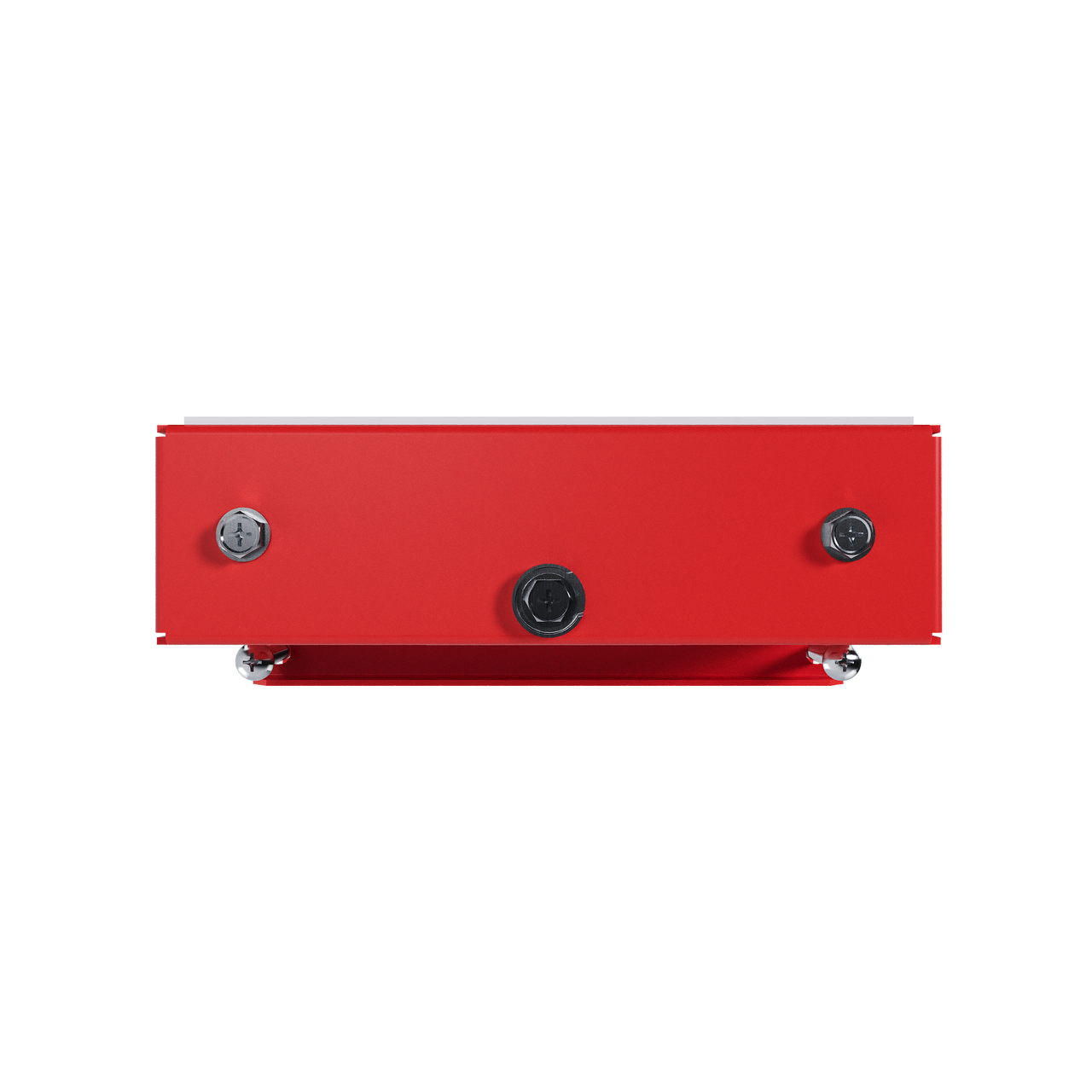

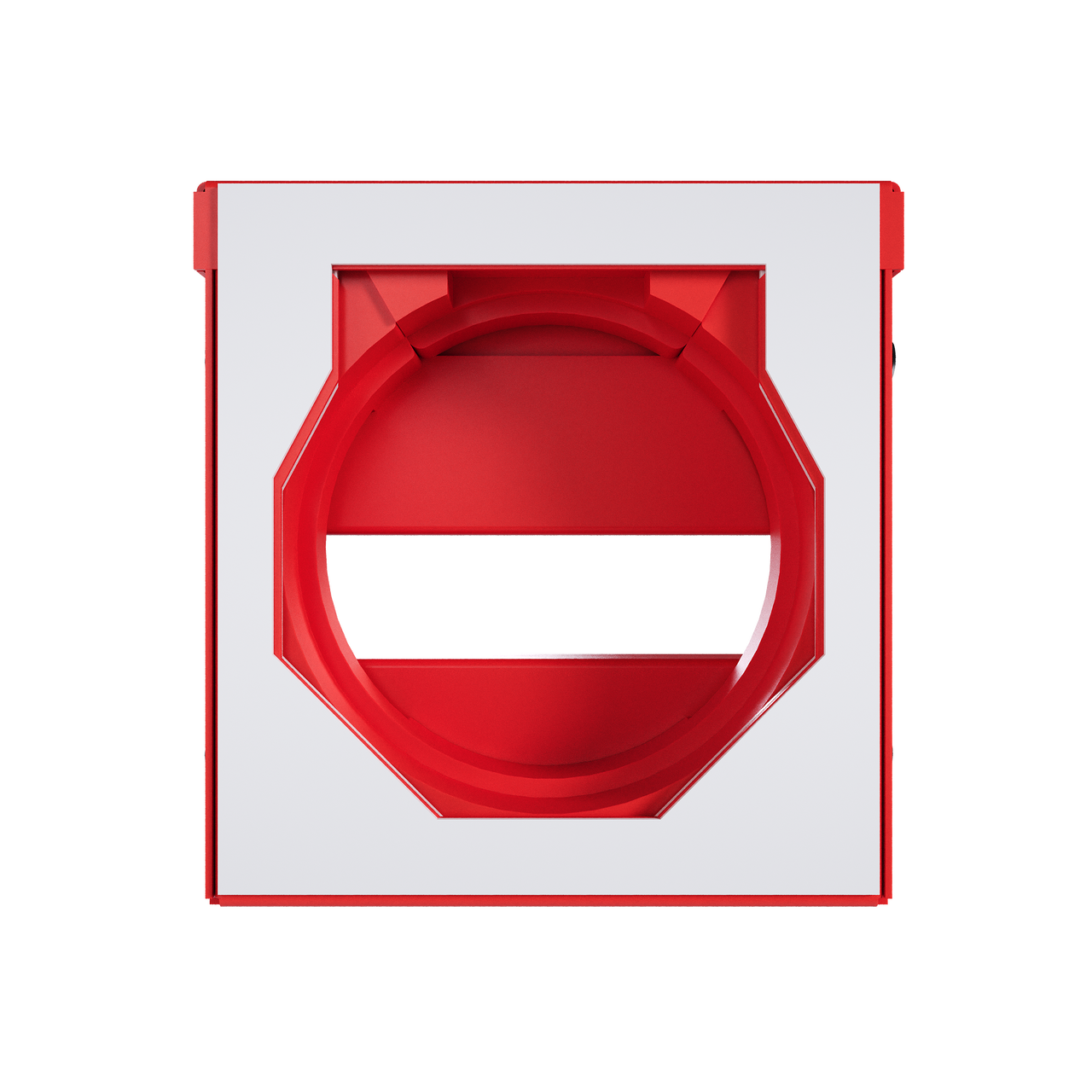

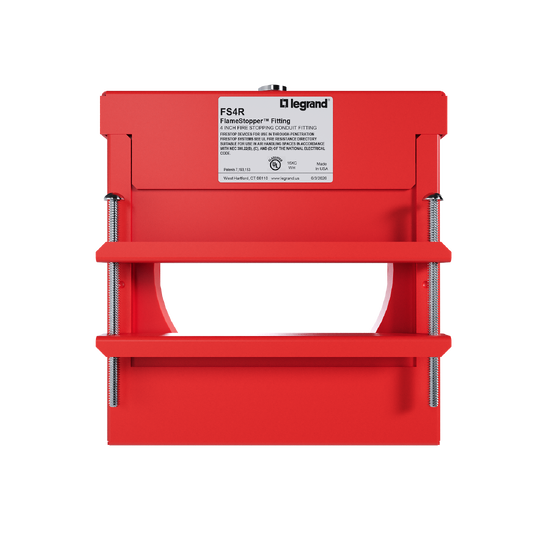

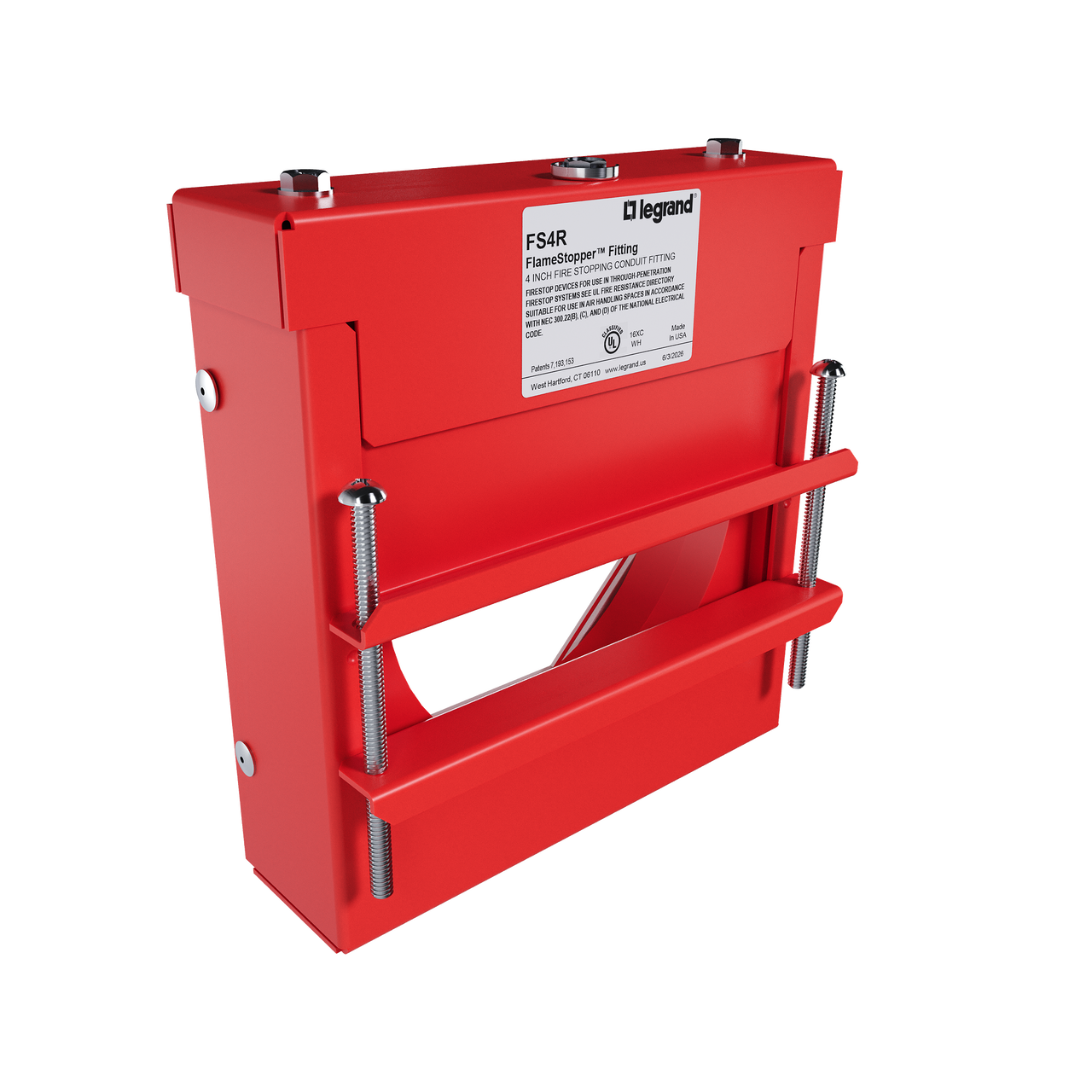

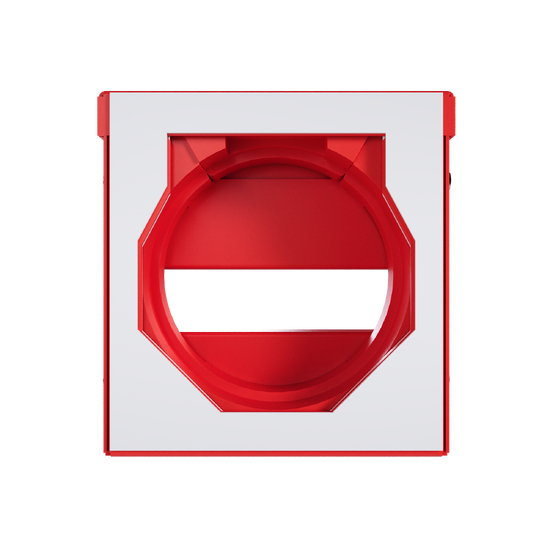

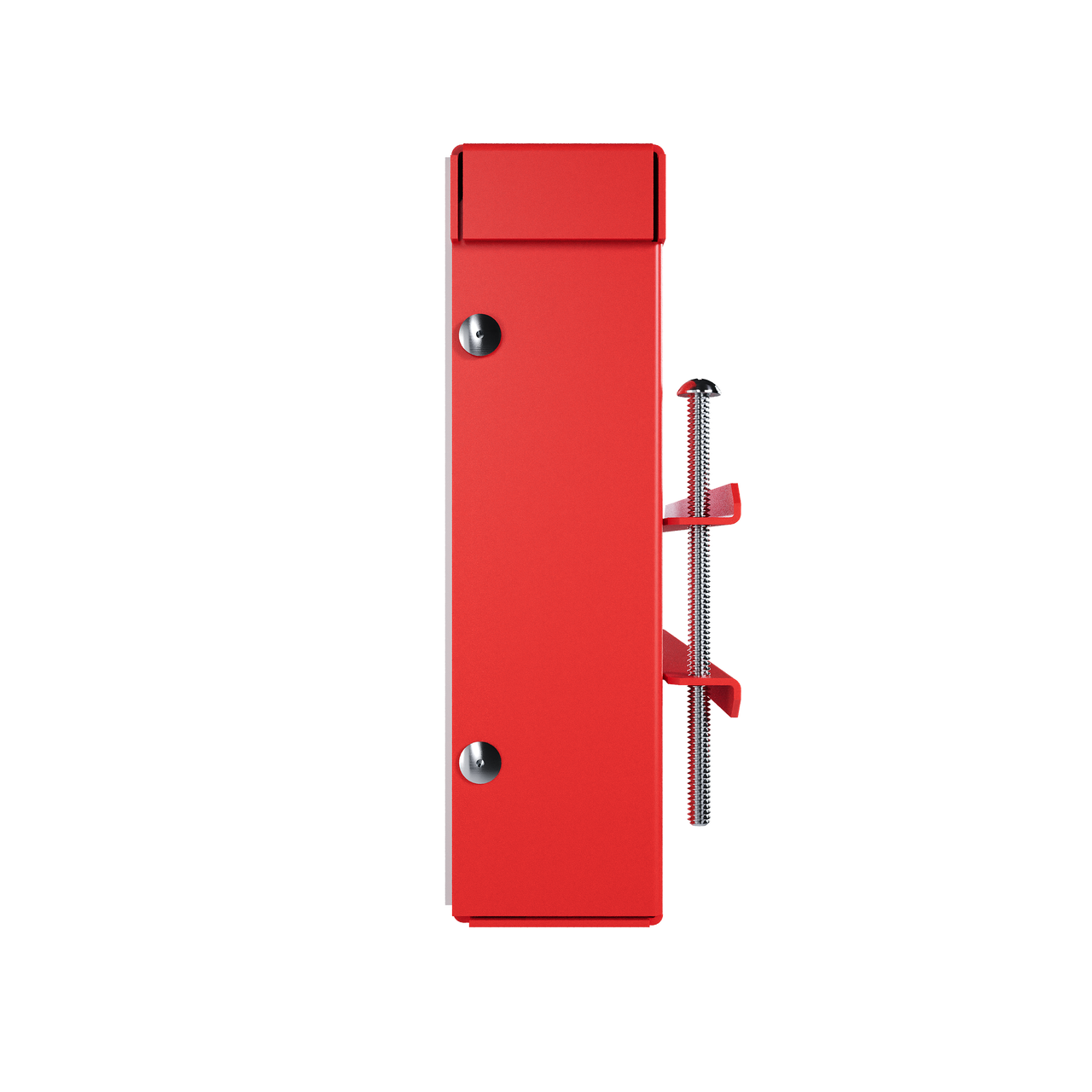

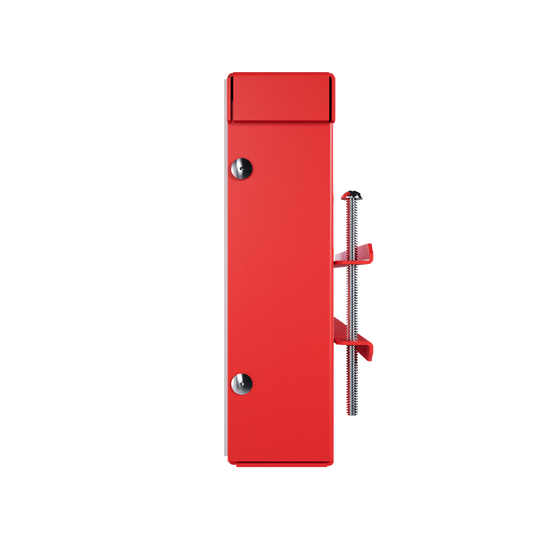

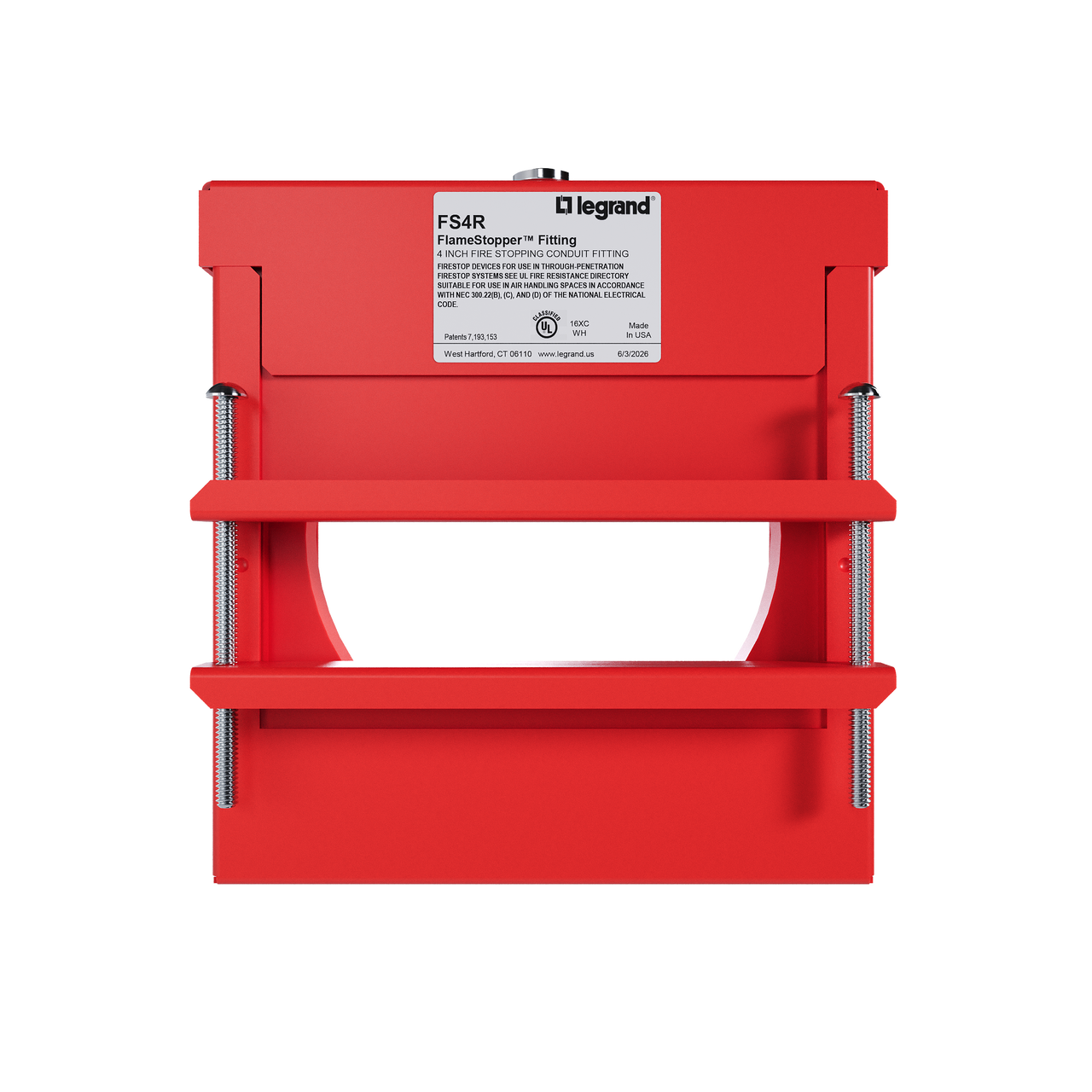

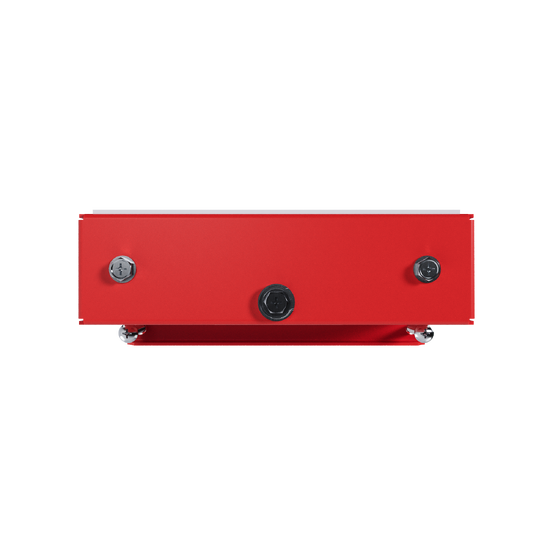

For transitioning cable through fire rated walls/floors for both new and retrofit applications. Available in red (RED), or a paintable A60 galvaneal finish (GA). UL System W-L-3264 and W-J-3137.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Up to 4-Hour Fire & Thermal Ratings: Helps maintain the integrity of fire-rated walls and floors under extreme conditions
- Supports Moves, Adds and Changes (MACs): Allows cables to be added or removed without tearing out or reworking the firestop system
- Integrated Intumescent Firestopping: Expands when exposed to heat to help seal the pathway and prevent the spread of flame and smoke
- Low Air Leakage Performance: Reduces the passage of smoke and air through penetrations for added protection
- Clean, Inspection-Friendly Design: Delivers consistent installation and improved visibility for easier inspection and compliance
- Use with concrete floor with minimum of 4 1/2" [114mm]depth.
- Total cable fill area: 14.7 sq in.
Specifications
General Info
| Color | Red | ||
| Type | Penetration Sleeve | ||
| Material | Epoxy-Painted Metal, Steel | ||
| Finish | Powder Coat | ||
| Application Sector | Commercial | ||
| Product Line | Wiremold | ||
| Country Of Origin | United States | ||
| Construction | Not Assembled | ||
| Warranty Type | 1-Year from Installation or 2-Years from Day of Sale | ||
| Standard | UL Listed Classified Fire Stop Devices: File R21765. | ||
| UPC Number | 786776086829 |
Dimensions
| Product Depth US | 2.37 in | ||
| Product Height US | 6.4 in | ||
| Product Width US | 6.07 in | ||
| Core Hole Size | 4.75 in |
Trade Programs
| USMCA | Yes |
Additional Information
| Energy Savings | No | ||
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Technical Information
| Service Capacity | Single | ||
| Fire Rating | 4 Hours | ||
| Floor Type | Concrete | ||
| Is Pre-Wired | No | ||
| Plenum | Yes |
Resources
Cutsheet
Installation Instructions
Brochure
BIM Models
Catalog
Sell Sheet
Guide Form Specifications
White Papers
Related Products
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
FSPCC4758 | Wiremold
4" pre-cut EMT conduit
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
FS4R-RED-K6 | Wiremold
Fire-rated wall kit
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Are these Buy America Act Compliant? (Not Buy American)
Hello-
The FS4R-RED has been discontinued with no direct replacement. The Country Of Origin was Mexico
and it was Buy American Act Compliance.
Date published: 2021-08-16
