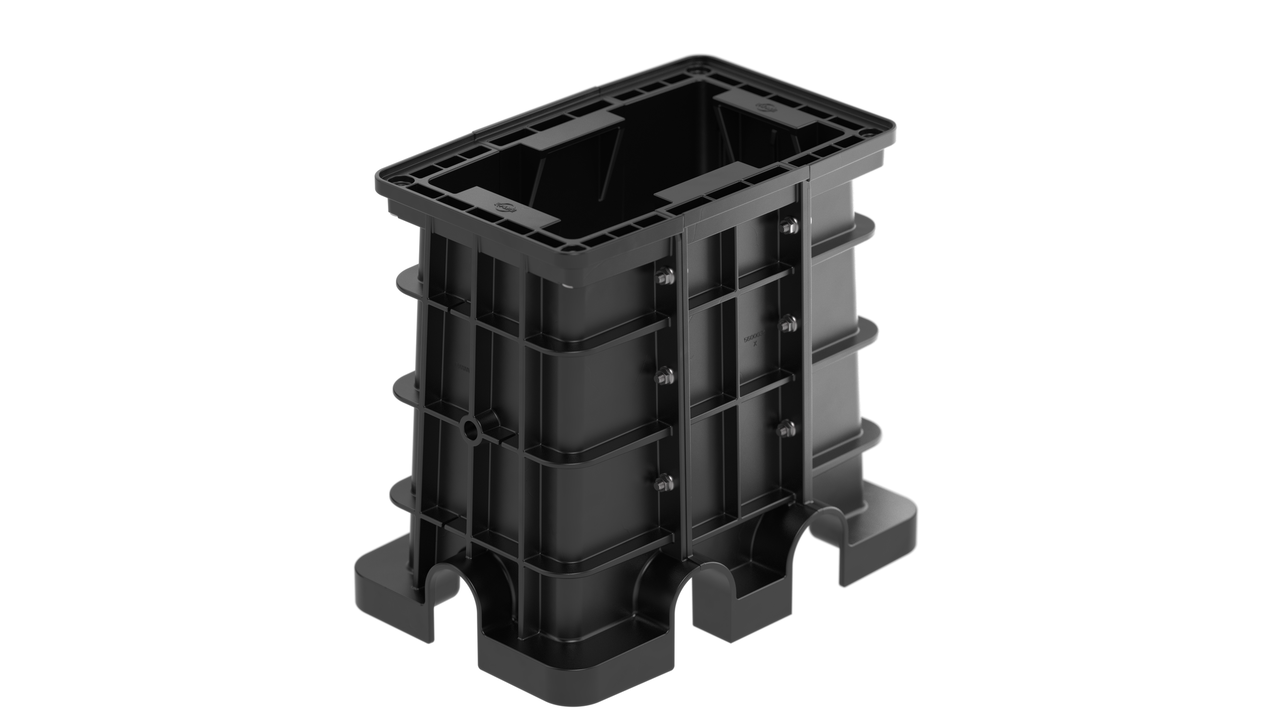

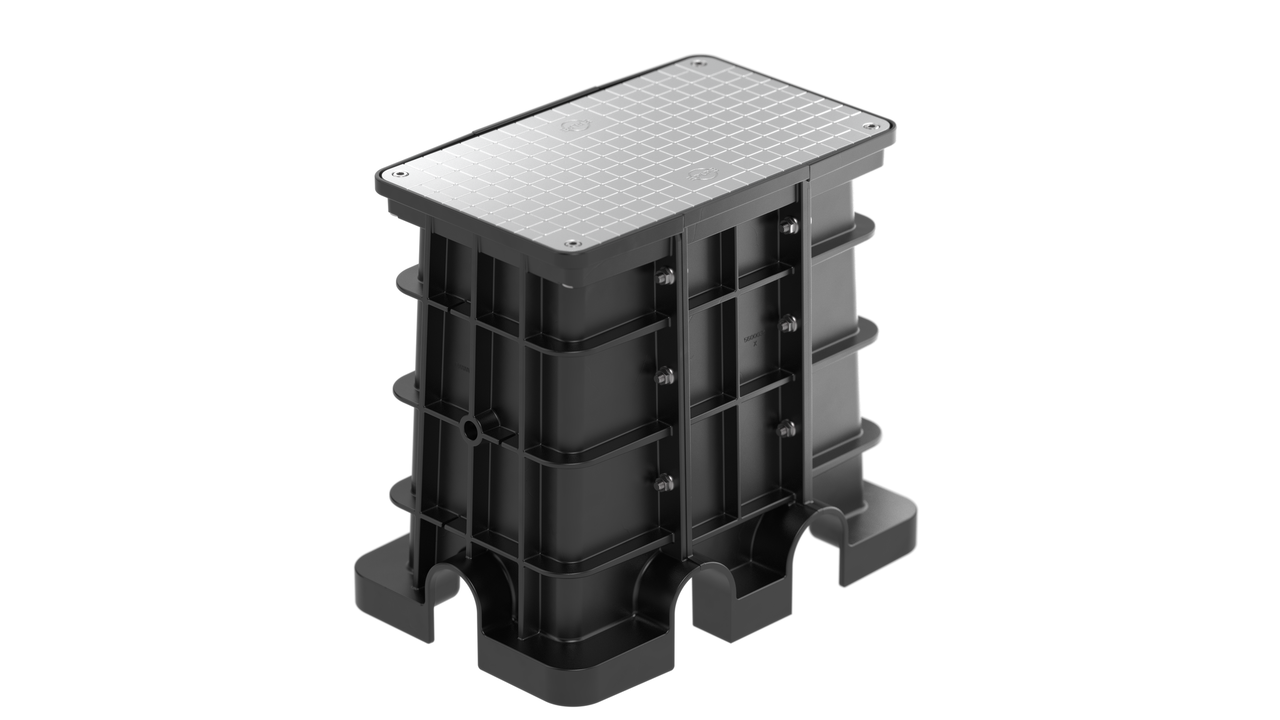

A durable, pre‑fabricated EV charging foundation box designed for quick two‑person installation, broad charger compatibility and easy access for maintenance and future upgrades.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Streamlined Installation: Clean, fast and simple install
- No Concrete Required: Reduces the reliance on poured concrete
- EV-Ready Solution: Ideal for future-proofing your site

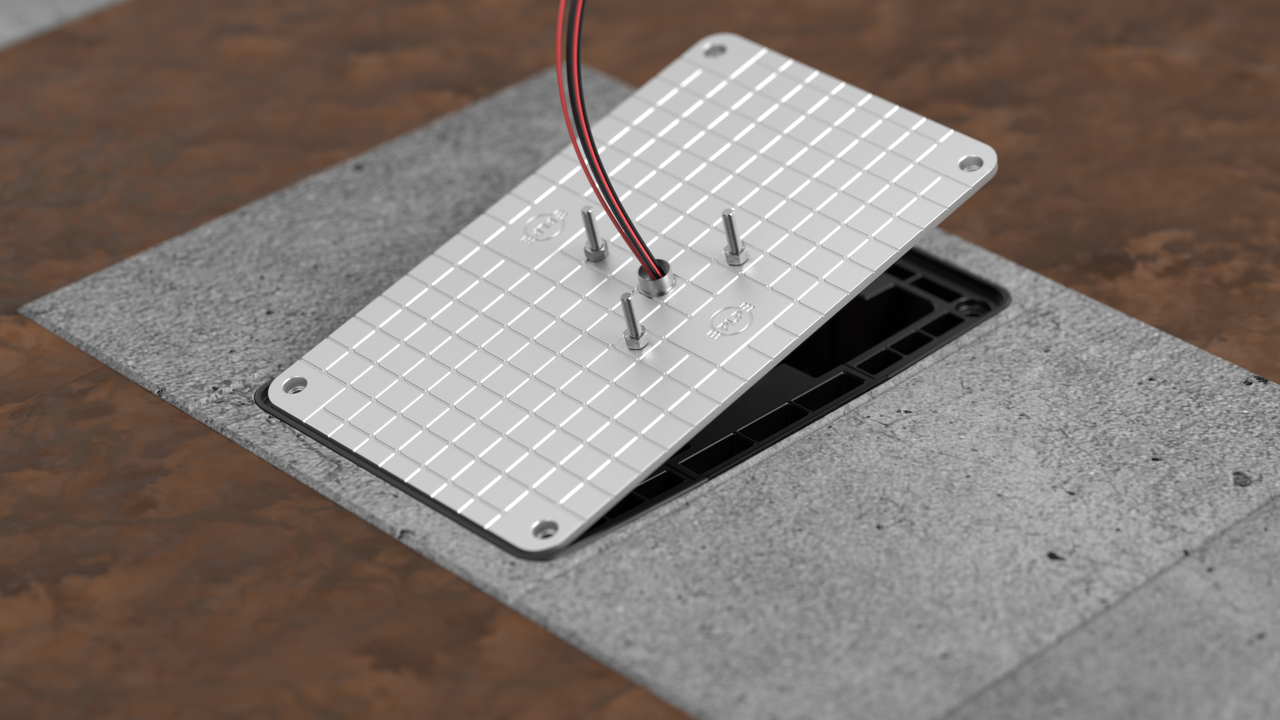

- Easy Access Design: An easy‑to‑drill top plate access point simplifies maintenance, reducing time and effort for repairs and replacements.
- Pedestal Compatibility: Designed to fit all existing EV Pedestals, XEVPEDCM1, XEVPED1, XEVPED2
WARNING: www.P65Warnings.ca.gov
Specifications
General Info
| Color | Black | ||
| Product Type | Foundation Box | ||
| Material | Aluminum, Polypropylene | ||
| Application Sector | Commercial | ||
| Product Line | Wiremold | ||
| Country Of Origin | United States | ||
| Conduit Size | 4 in | ||
| Installation Location | Outdoor | ||
| UPC Number | 786776201031 |
Dimensions
| Product Depth US | 18.0 in | ||
| Product Height US | 24.1875 in | ||
| Product Length US | 27.0312 in | ||
| Product Width US | 18.0 in |
Additional Information
| Energy Savings | No |
Technical Information
| Enclosure Type | Polypropylene | ||
| Is Pre-Wired | No | ||
| Load Capacity | 2204 lb | ||
| Number of Channels | 4 |
Resources
Installation Instructions
Brochure
Supporting Document
Catalog
Sell Sheet
Guide Form Specifications
