AC SeriesTM AC8105 Six Gang Raised Floor Box with Gray Carpet Style Lid

AC8105 Wiremold
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

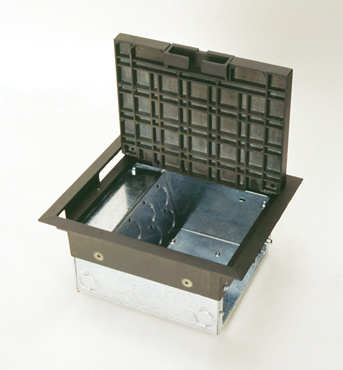

The AC Series™ AC8105 Raised Floor Box has a 5 inch (127mm) depth design with an extra 2 inch (51mm) of width for additional wiring capacity and can accommodate four duplex power receptacles on one side. Power plate with duplex knockouts included with box. The communication plate will accept at least three communication adapters for up to 18 ports of activation. Lids rotate 180° for easy orientation. Gray lids are diecast zinc construction and allow for a carpet or tile insert. NOTE: For custom options, consult factory. All boxes are sold with one power plate: 4 inch (102mm) deep boxes have plate with two power duplex receptacle KOs, 5 inch (127mm) deep boxes have plate with four power duplex receptacle KOs. All communication plates sold separately.
Color Gray
Depth 9.25 in
  • 9.25 in
Length 9.25 in
  • 9.25 in
Width 9.25 in
  • 9.25 in
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • This product meets the material restrictions of RoHS
Specifications

Specifications

General Info
Color Gray
Type Floor Box
Material Steel
Application Sector Commercial
Product Line Wiremold
Country Of Origin United States
Construction Assembled
Number of Knockouts 2
Warranty Type 1-Year from Installation or 2-Years from Day of Sale
Standard cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT Meets Article 314.27(C) of NEC.
Cover Material Die-Cast Zinc
UPC Number 786564521181
Dimensions
Product Depth US 11.25 in
Product Height US 5.13 in
Product Volume US 533.32 cu in
Product Width US 9.25 in
Product Weight US 12.0 lb
Cubic Capacity 111 in³
Knockout Size 1/2 in, 3/4 in
Listing Agencies / 3rd Party Agencies
cULus ListingNumber  E2961
cULus Listed  Yes
Additional Information
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Box Type Recessed
Cable Entry Knockout
Box Capacity 6 Gangs
Service Capacity Triple
Floor Type Raised
Depth Behind Device Plates 2 in
Minimum Floor Depth 5 in
Number of Outlets 0
