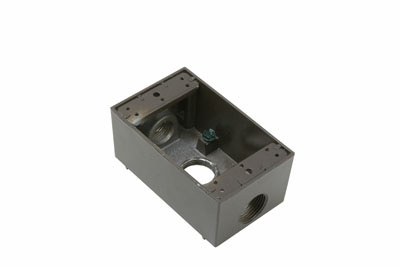

Weatherproof Single Gang Box, Bronze

WPB33BR Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 15ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Weatherproof 1 Gang Box, 3 Hole 3/4, 18.5 Cu.In.,Bronze (1 Hole Each End, 1 Hole in Back)
Color Bronze
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Wide range of sizes, depths, and gangs.
  • Baked-on electrostatic, polyester, powder paint for superior scratch and corrosion resistance.
  • 2 closure plugs and mounting lugs furnished with all boxes.
  • UL Listed for wet and/or damp locations with appropriate cover.
  • Designed for both interior and exterior applications.
  • Will accept standard 4 screw mounting covers and single gang weatherproof covers.
  • Simply strike desired knockout studs with a sharp hammer blow for clean mounting holes.
  • Heavy die-cast aluminum.
  • For covering patents, see www.legrand.us/patents.
Specifications

Specifications

General Info
Color Bronze
Type Weatherproof
Material Die-Cast Aluminum
Application Sector Commercial, Residential
Product Line Pass & Seymour
Country Of Origin India
Features Corrosion Resistant, Weatherproof
Number of Knockouts 3
Warranty Type 1-Year Limited Warranty
Standard UL Listed
UPC Number 785007261189
Dimensions
Product Depth US 2.09 in
Product Height US 4.63 in
Product Width US 2.86 in
Cubic Capacity 18.5 in³
Box Depth Shallow
Technical Information
Box Shape Rectangular
Size of Threaded Openings 3/4 in
Cable Entry Back, Bottom, Top
Indoor/Outdoor Both
Mounting Type Screw Mount
Number of Gangs 1
Resources
Reviews

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Questions & Answers

Questions & Answers

Can I get the CAD file for this box?

Asked by: Anonymous
Thank you for your inquiry. To provide further assistance with your request, please contact Legrand Pass & Seymour Technical Support at (800) 223-4185 between 8:00 a.m. and 6:00 p.m. EST or via email at Tech.Support@legrand.us.
Answered by: Pass & Seymour Technical Support
Date published: 2024-07-22

Would this box be rated to hold a 5 lb. light fixture if I were to use it inline with a pendant mount?

Asked by: Rob
Hi Rob, This box doesn't have a weight rating for fixtures. I apologize for the inconvenience. Thank you!
Answered by: Wiremold Tech Support
Date published: 2023-11-10

Hello Could You give us country of smelt and cast + the breakdown (composition) of item WPB33? Thank You!

Asked by: Jim gade
