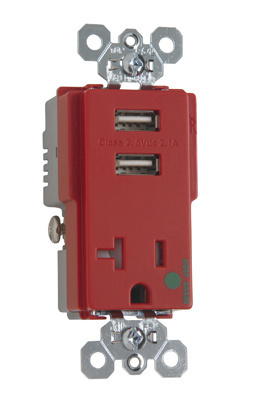

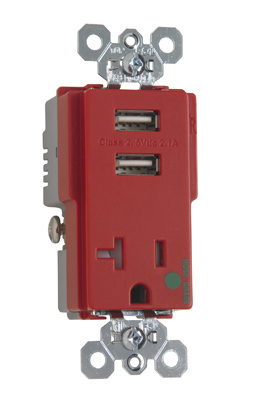

Discontinued - USB Charger with Hospital Grade Tamper-Resistant Single Receptacle, Red

TR8301USBRED Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 28ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Replaced by  TR8300HUSBRED

Standard type A USB's, 2.1 A or 2100mA, 10.5 watts. Combination with Hospital Grade Tamper-Resistant 20 A AC Single Receptacle, White. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Color Red
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • 2.1 A USB type A receptacle charges faster than other USB receptacles eliminates the need for bulky AC adapters.
  • Compact Design Tamper-Resistant receptacle and two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
  • Back and side wire terminals accommodates #14 AWG - #10 AWG stranded and solid wire.
  • Tamper-Resistant, patented shutter system prevents improper insertion of foreign objects. Meets 2011 National Electrical Code: Tamper-Resistant requirements.
  • Stainless steel auto-ground clip assures positive ground.
  • Zink-plated ground terminal screw
  • For covering patents, see www.legrand.us/patents.
Specifications

Specifications

General Info
Color Red
Product Line Pass & Seymour
Country Of Origin China
Replaced by Part Number  TR8300HUSBRED
UPC Number 785007030341
Additional Information
Product Environmental Profile Yes
Technical Information
Amperage 20 A
USB Amperage 2.1 A
USB Power Output 11 W
Is Tamper-Resistant Yes
