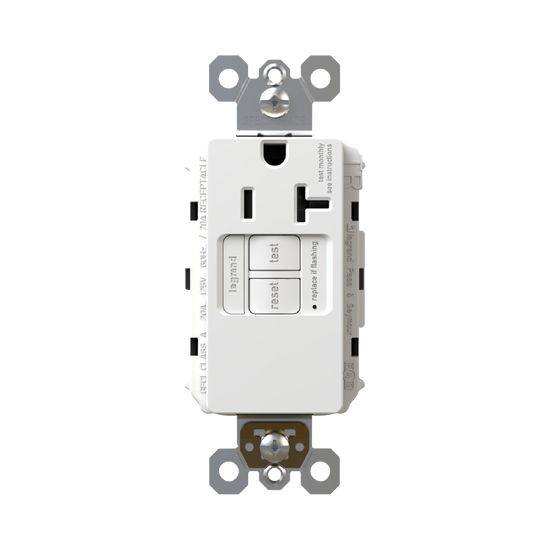

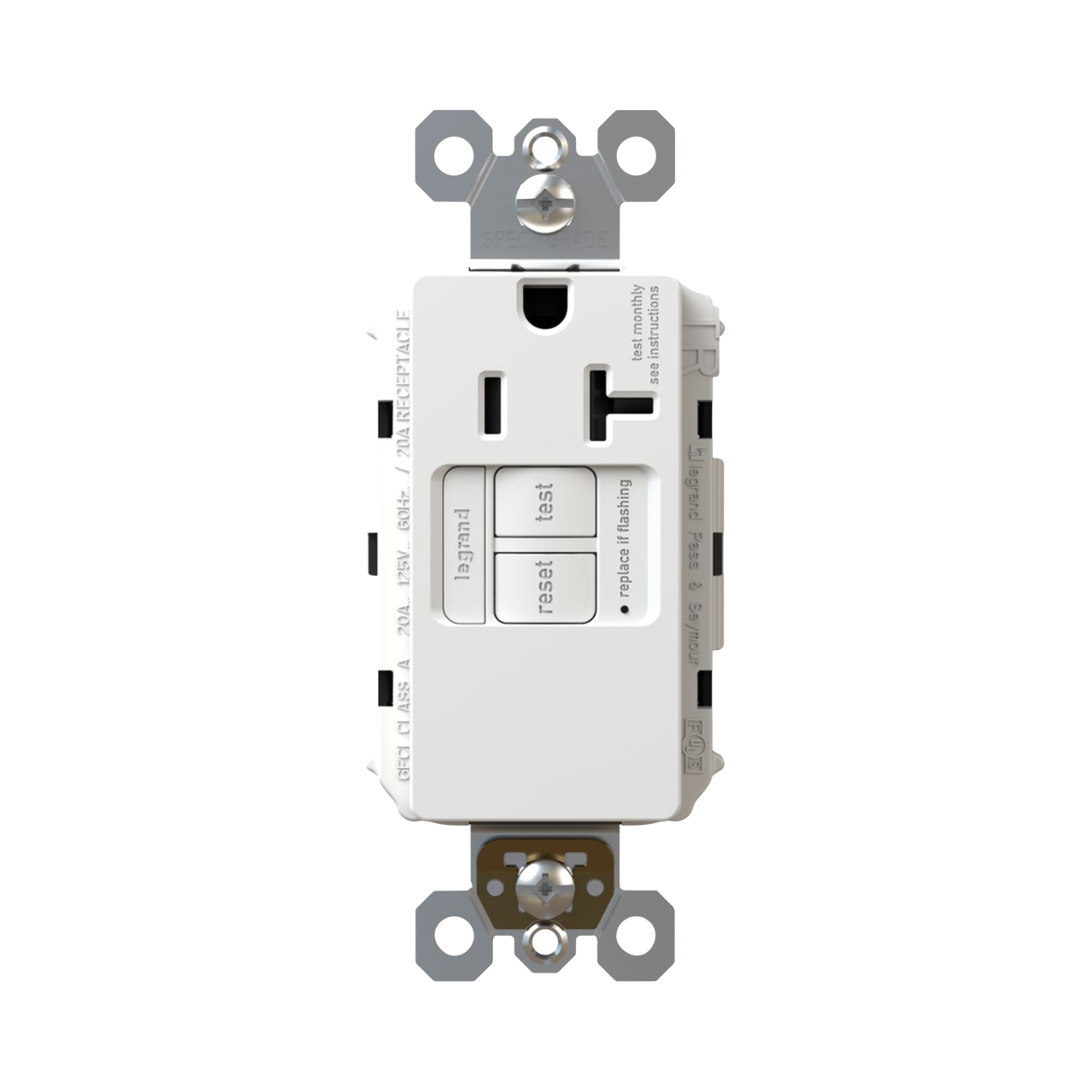

radiant® 20A Simplex Sensitive Appliance GFCI Receptacle, White
Bazaarvoice SAP Hybris Integration Version 2.8.1
Simplex GFCIs when access to just one receptacle outlet is desired are perfect for providing a dedicated power source with reliable ground-fault protection. In addition, as sensitive appliances that are increasingly including variable speed drives to deliver energy-saving operation lead to more cases of unwanted tripping of connected GFCIs, the 20A Simplex Sensitive Appliance GFCI can reduce the incidence of nuisance tripping, saving installers unpaid callbacks.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
Simplex GFCIs when access to just one receptacle outlet is desired are perfect for providing a dedicated power source with reliable ground-fault protection. In addition, as sensitive appliances that are increasingly including variable speed drives to deliver energy-saving operation lead to more cases of unwanted tripping of connected GFCIs, the 20A Simplex Sensitive Appliance GFCI can reduce the incidence of nuisance tripping, saving installers unpaid callbacks.
- Sensitive Appliance GFCI receptacles can reduce installer’s unpaid callbacks by reducing incidence of nuisance tripping that can be caused by variable speed drives in newer appliances.
- Simplex GFCI receptacles are perfect for providing dedicated power by ensuring no other device can be plugged in at a specific location.
- Protects against electrical shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles allow one to easily conduct test and reset to ensure safety right on the face of the device.
Specifications
| Color | White | ||
| Product Type | Receptacle | ||
| Finish | Satin | ||
| Application Sector | Commercial, Multi-Dwelling Unit, Residential | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | China | ||
| Features | Self-Test | ||
| Wall Plate Included | Yes | ||
| Number of Receptacles | 1 | ||
| Outlet Type | GFCI, Self-Test, Tamper-Resistant | ||
| Warranty Type | 1-Year Limited Warranty | ||
| Standard | FEDSPEC | ||
| UPC Number | 785007449631 |
| Product Depth US | 1.03 in | ||
| Product Height US | 4.2 in | ||
| Product Width US | 1.73 in |
| cULus Listed | Yes |
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
| Amperage | 20 A | ||
| Connection Location | Back and Side | ||
| Seismic Tested | No | ||
| Wire Connection Type | Internal Pressure Plates, Screw Terminals | ||
| Indoor/Outdoor | Indoor | ||
| Is Tamper-Resistant | Yes | ||
| Is Weather Resistant | No | ||
| Mounting Type | Box | ||
| NEMA Configuration Code | 5-20R | ||
| Number of Gangs | 1 | ||
| Number of Poles | Double Pole | ||
| Number of Wires | 3 | ||
| Voltage | 125.0 V | ||
| Wattage | 2500 W |
