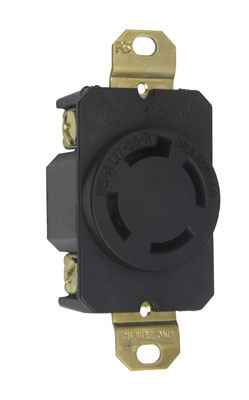

30A NEMA L1730 Single Receptacle

Receptacle Single 4-Wire 30A 600V Turnlok®

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
Face color coding by voltage facilitates locating and mating of proper devices.
One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
Side and external screw-pressure-plate back wire capability.
Accepts #14 - #10 AWG.

General Info

Color	Black
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Brass Mounting Strap, Impact Resistant
Wall Plate Included	No
Number of Receptacles	1
Outlet Type	Locking
Warranty Type	1-Year Limited Warranty
Standard	UL 498
UPC Number	785007173055

Dimensions

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	140596
cULus Listed	Yes

Additional Information

Product Environmental Profile

Yes

Technical Information

Resources

For: Nema L17-30-R recepticle. Ground is colored Green), Screws are marked " X, Y, and Z". So, the question is where do I place the Red, Black and White wires? Of the X,Y, Z Which 2 are the Power and which is neutral?

Asked by: Domenico

The L1730R is 3phase 600V so the X, Y, and Z are HOT terminals, plus Ground.

Answered by: Legrand Technical Support

Date published: 2022-03-02
