9-in Dual-Purpose In-Wall Enclosure with 5-in Mounting Plate
ENP0905NAV1
On-Q
Bazaarvoice SAP Hybris Integration Version 2.8.1
$74.19 USD

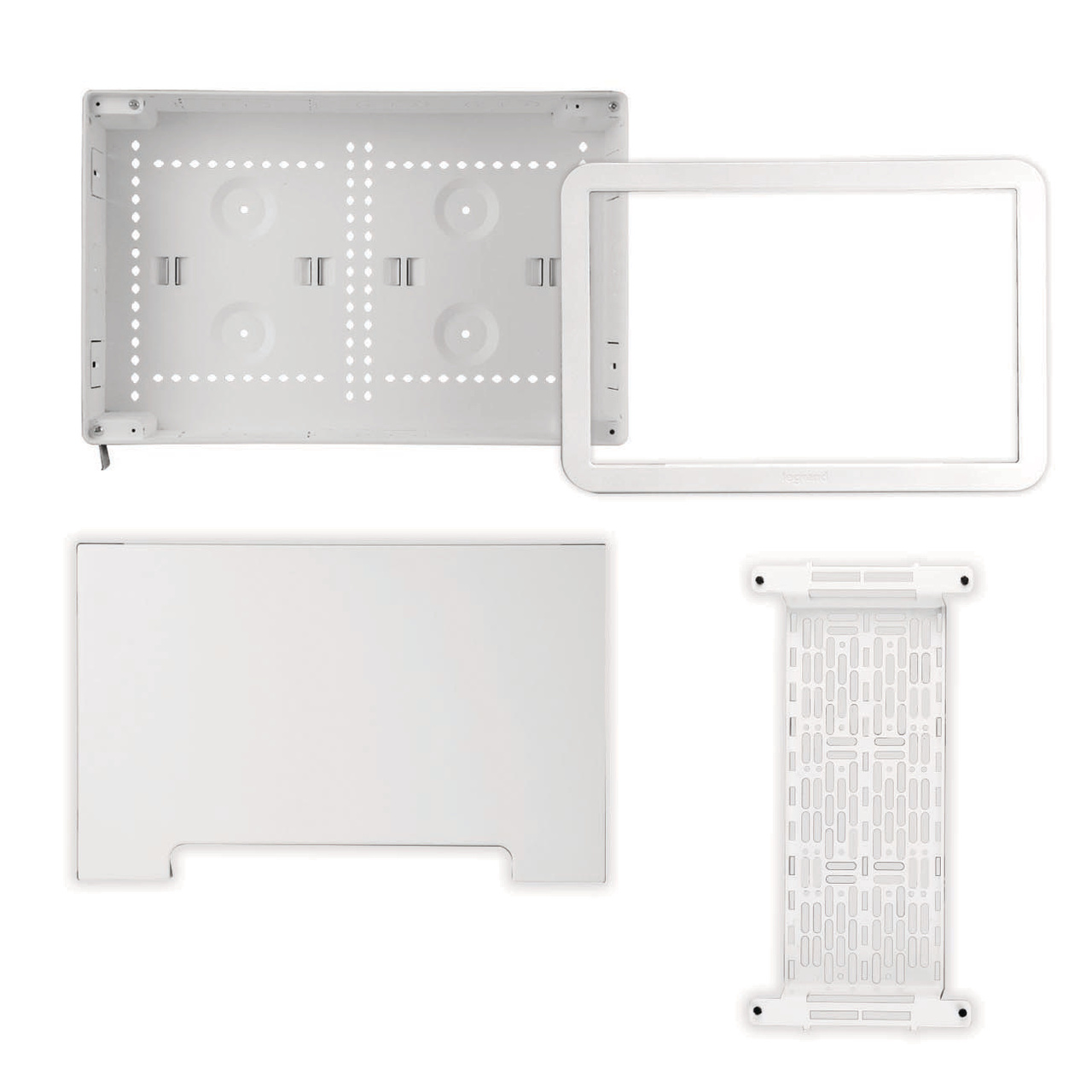

The 9-in Dual-Purpose In-Wall Enclosure is engineered to provide storage of structured wiring and AV components. The ENP0905NAV1 is constructed of Wi-Fi transparent material to manage wireless components and AV devices at point-of-use locations, like directly behind a TV or other media centers. It can also be used for structured wiring purposes, as smaller-sized options in the existing line of On-Q enhanced structured wiring enclosures. The ENP0905NAV1 is compatible with devices like Apple TV, Roku, Amazon Fire TV, network switches, 3rd party structured wiring components and more. Includes a 5-in elevated mounting plate, cover, trim ring and drywall clips, allowing for both new construction and retrofit installations.
Out of stock on Legrand.us
- Send
- Save as PDF
-
FavoriteAdded to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Replacement trim ring and cover

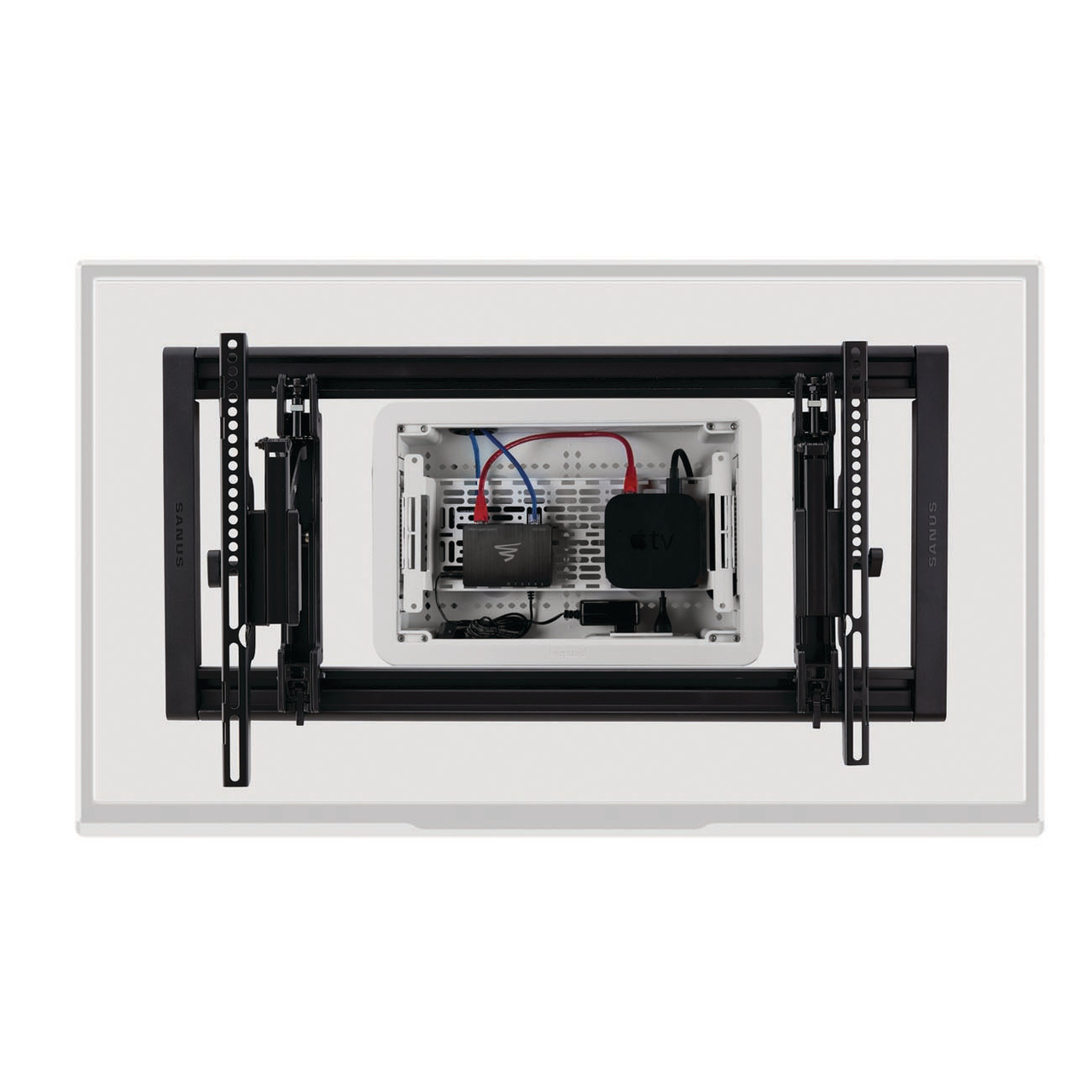

- Can be placed behind most TV wall-mounts including SANUS premium TV mounts
- Compatible with devices like Apple TV, Roku, Amazon Fire TV, network switches, 3rd party structured wiring components and more
- Comes with removable mounting plate that features 1.5-in of elevation to accommodate larger devices and frees up space in the enclosure
- Tool-free cover is low profile and designed to snap into place providing a ''flush'' appearance to wall surface

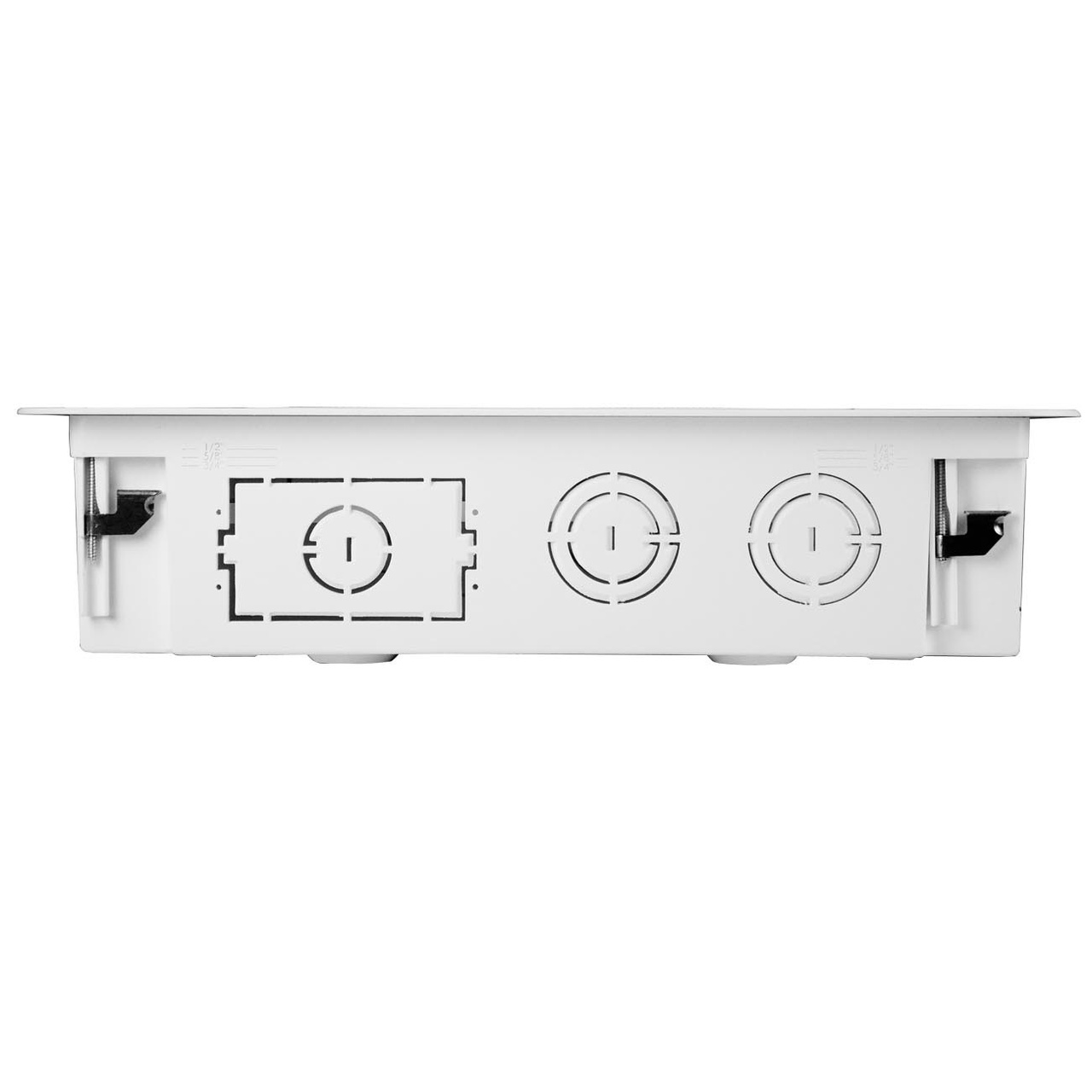

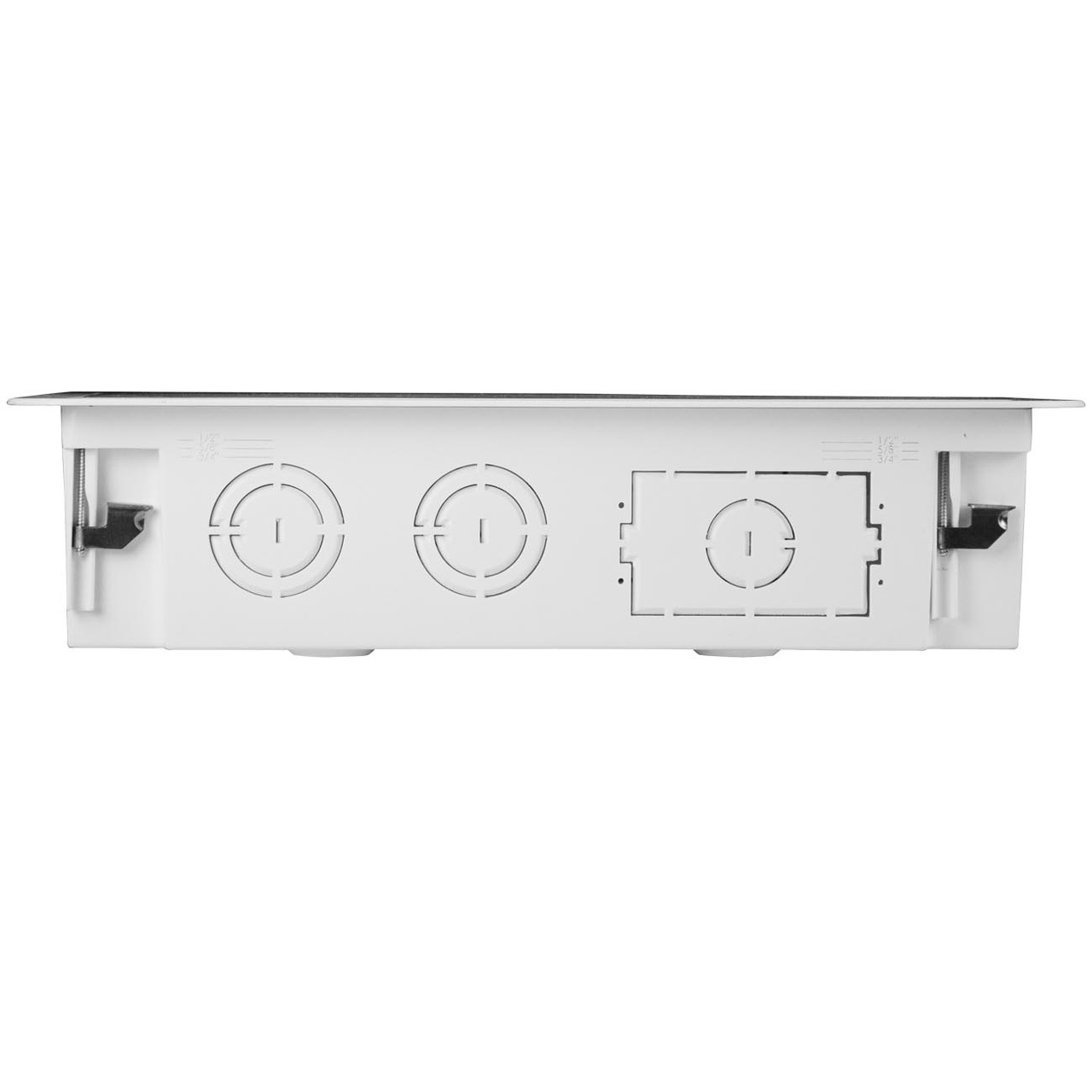

- Knockout configurations support conduit and in-wall wired connections, while a cable pass through on cover allows for outside cable connections
- Features (2) AC knockouts to accommodate a single gang junction box to power devices in enclosure
- Universal mounting grid maximizes compatibility with 3rd party devices without additional mounting brackets
- Features drywall clips to allow both retrofit and new construction installations
- UL Listed and constructed of Wi-Fi transparent ABS plastic to ensure uninterrupted performance of wireless devices
- Proudly made in the USA
Specifications
General Info
| Product Line | On-Q | ||
| Color | White | ||
| UPC Number | 804428434139 | ||
| Country Of Origin | United States | ||
| Package Quantity | 5 | ||
| Application Sector | Residential/Commercial | ||
| Standard | RoHS, UL, cULus | ||
| Type | Enclosure |
Additional Information
| RoHS Conformant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. | |
| Prop 65 Warning Required | Yes | ||
| Prop 65 Warning Language | ⚠ WARNING: This product can expose you to Tetrabromobisphenol A, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
Technical Information
| Compatibility | Paintable with Rust-Oleum paint for plastic or equivalent | ||
| Thickness | 0.1 in | ||
| Frame | Injection-molded plastic | ||
| Operating Temperature | 32 to 122 F | ||
| Mounting | Consult the Factory for Mounting Recommendations | ||
| Environmental Conditions | 0 to 93 (relative humidity, non-condensing) pct |
Resources
Cutsheet
Sell Sheet
Installation Instructions
Supporting Document
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Can this be mounted on a ceiling to hide cables and streaming boxes for a projector?
It can physically be done. Keep in mind that this enclosure has holes in the back to allow for mounting things. This may allow for insulation to fall through if this unit is in a ceiling facing a blown-in insulated space.
Date published: 2021-12-14
Hi, can this be mounted vertically in a retrofit application?
Jeffrey is incorrect. In the included instructions it shows that it can be mounted vertically to the adjacent stud by simply drilling through the side of the enclosure. The only downside to this method is that you are only mounted on one stud and the box has a little more wiggle to it (assuming a normal 16" on center stud pattern).
Date published: 2021-12-02
