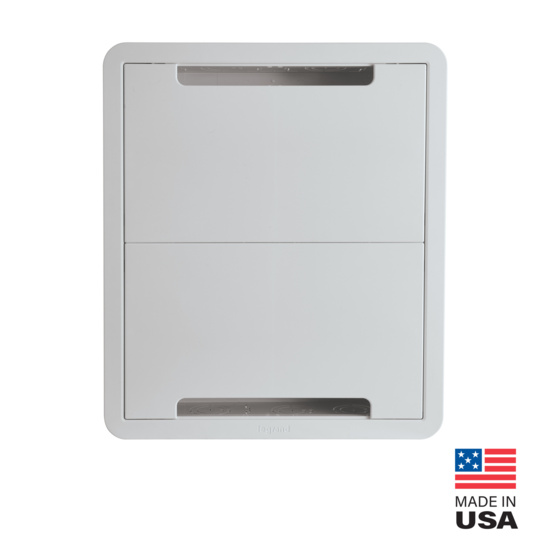

Cover for the 9" Dual-Purpose In-Wall Enclosure
9" Dual-Purpose In-Wall Enclosure with Elevated Mounting Plate
9" Dual-Purpose In-Wall Enclosure with Wireless Devices Installed
Image of an On-Q 9-inch Dual-Purpose In-Wall Enclosure with 5-inch Mounting Plate with product description sheet behind the enclosure.
Image of a disassembled On-Q 9-inch Dual-Purpose In-Wall Enclosure with 5-inch Mounting Plate. The text lists what is included with the enclosure.
Image showing the various features of the On-Q 9-inch Dual-Purpose In-Wall Enclosure. the features shown include: Outlet Knockouts (top & bottom), Cable Knockouts, and Retrofit Drywall Clips. The image also shows the outlets this enclosure supports.
Image of an electrical outlet that is pointing to the 9-inch Dual-Purpose In-Wall Enclosure outlet knockout feature. The text in black reads " WORKS WITH METAL OLD WORK STANDARD SWITCH/OUTLET BOX".
Image showing the installation of an On-Q 9-Inch Dual-Purpose In-Wall Enclosure. The enclosure is fitted with electronic modules and surrounded by a TV mounting bracket. There is a transparent image of a TV superimposed on top of the enclosure and mountin
Image showing an installed 9-inch Dual-Purpose In-Wall Enclosure. The enclosure is connected to a TV mounting bracket. The text in black reads " STORE DEVICES IN_WALL FOR A FLUSH, SLEEK INSTALL".
Image showing an installed 9-inch Dual-Purpose In-Wall Enclosure. The enclosure is connected to a TV mounting bracket. The text in black reads " WORKS WITH ANY TV MOUNT INCLUDING SANUS PREMIUM MOUNTS".
Image showing the installation of an On-Q 9-inch Dual-Purpose In-Wall Enclosure. The image is broken down into 4 different photos that show different installation methods. The text in black reads " New Construction OR Retrofit Installation".
Four grid image showing the the built in cable management and device loops feature. The first image shows a screw driver pointing towards the loops. The second image shows a hook and loop fastener. The third image shows a hook and loop fastener being thre

9-inch Dual-Purpose In-Wall Enclosure with 5-inch Mounting Plate

ENP0905NAV1 On-Q
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 24ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

$74.19 USD

The 9-inch Dual-Purpose In-Wall Enclosure is engineered to provide storage of structured wiring and AV components. The ENP0905NAV1 is constructed of Wi-Fi transparent material to manage wireless components and AV devices at point-of-use locations, like directly behind a TV or other media centers. It can also be used for structured wiring purposes, as smaller-sized options in the existing line of On-Q enhanced structured wiring enclosures. The ENP0905NAV1 is compatible with devices like Apple TV, Roku, Amazon Fire TV, network switches, 3rd party structured wiring components and more. Includes a 5-inch elevated mounting plate, cover, trim ring and drywall clips, allowing for both new construction and retrofit installations.
Color White

Quantity

In Stock

Free Shipping on Orders Over $49

Add To Cart - Ready

Where To Buy
Features

Features

  • Replacement trim ring and cover
  • Can be placed behind most TV wall-mounts including SANUS premium TV mounts
  • Compatible with devices like Apple TV, Roku, Amazon Fire TV, network switches, 3rd party structured wiring components and more
  • Comes with removable mounting plate that features 1.5-in of elevation to accommodate larger devices and frees up space in the enclosure
  • Tool-free cover is low profile and designed to snap into place providing a ''flush'' appearance to wall surface
  • Knockout configurations support conduit and in-wall wired connections, while a cable pass through on cover allows for outside cable connections
  • Features (2) AC knockouts to accommodate a single gang junction box to power devices in enclosure
  • Universal mounting grid maximizes compatibility with 3rd party devices without additional mounting brackets
  • Features drywall clips to allow both retrofit and new construction installations
  • UL Listed and constructed of Wi-Fi transparent ABS plastic to ensure uninterrupted performance of wireless devices
  • Proudly made in the USA
Specifications

Specifications

General Info
Product Line On-Q
Color White
UPC Number 804428434139
Country Of Origin United States
Package Quantity 5
Application Sector Residential/Commercial
Standard RoHS, UL, cULus
Type Enclosure
Additional Information
RoHS Conformant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Prop 65 Warning Required Yes
Prop 65 Warning Language ⚠ WARNING: This product can expose you to Tetrabromobisphenol A, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Compatibility Paintable with Rust-Oleum paint for plastic or equivalent
Thickness 0.1 in
Enclosure Type Dual Purpose
Frame Injection-molded plastic
Operating Temperature 32 to 122 F
Mounting Consult the Factory for Mounting Recommendations
Environmental Conditions 0 to 93 (relative humidity, non-condensing) pct
Resources

Resources

Cutsheet
ENP0905NAV1 Cutsheet
pdf
Sell Sheet
Dual-Purpose Enclosures Sell Sheet
pdf
Installation Instructions
In-Wall Enclosure for Recessed AV Component Storage and Media Distribution
pdf
Supporting Document
ENP09xxNA/ENP17xxNA Cutout Dimension Reference Sheet
pdf
CAD Drawings
ENP0900-NA Dimensional Drawing
pdf
ENP0900-NA Dimensional Drawing
dwg
Reviews

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Questions & Answers

Questions & Answers

Can this be mounted on a ceiling to hide cables and streaming boxes for a projector?

Asked by: Bryan
It can physically be done. Keep in mind that this enclosure has holes in the back to allow for mounting things. This may allow for insulation to fall through if this unit is in a ceiling facing a blown-in insulated space.
Answered by: Wiremold Tech Support
Date published: 2021-12-14

Hi, can this be mounted vertically in a retrofit application?

Asked by: biglou
Jeffrey is incorrect. In the included instructions it shows that it can be mounted vertically to the adjacent stud by simply drilling through the side of the enclosure. The only downside to this method is that you are only mounted on one stud and the box has a little more wiggle to it (assuming a normal 16" on center stud pattern).
Answered by: telecomguy
Date published: 2021-12-02

Can your product install right above fireplace?  Is this ok for electrical inspection?  I see that it is rated 49 degree c.   What is the temperature outside of gas driven fireplace metal frame?   I like to know

Asked by: Han

I received my ENP0905-NA-V1. There's silver tape covering all the knockouts on one of the inner sides of the enclosure. What is the purpose of the tape?

Asked by: Jim Mac Master
