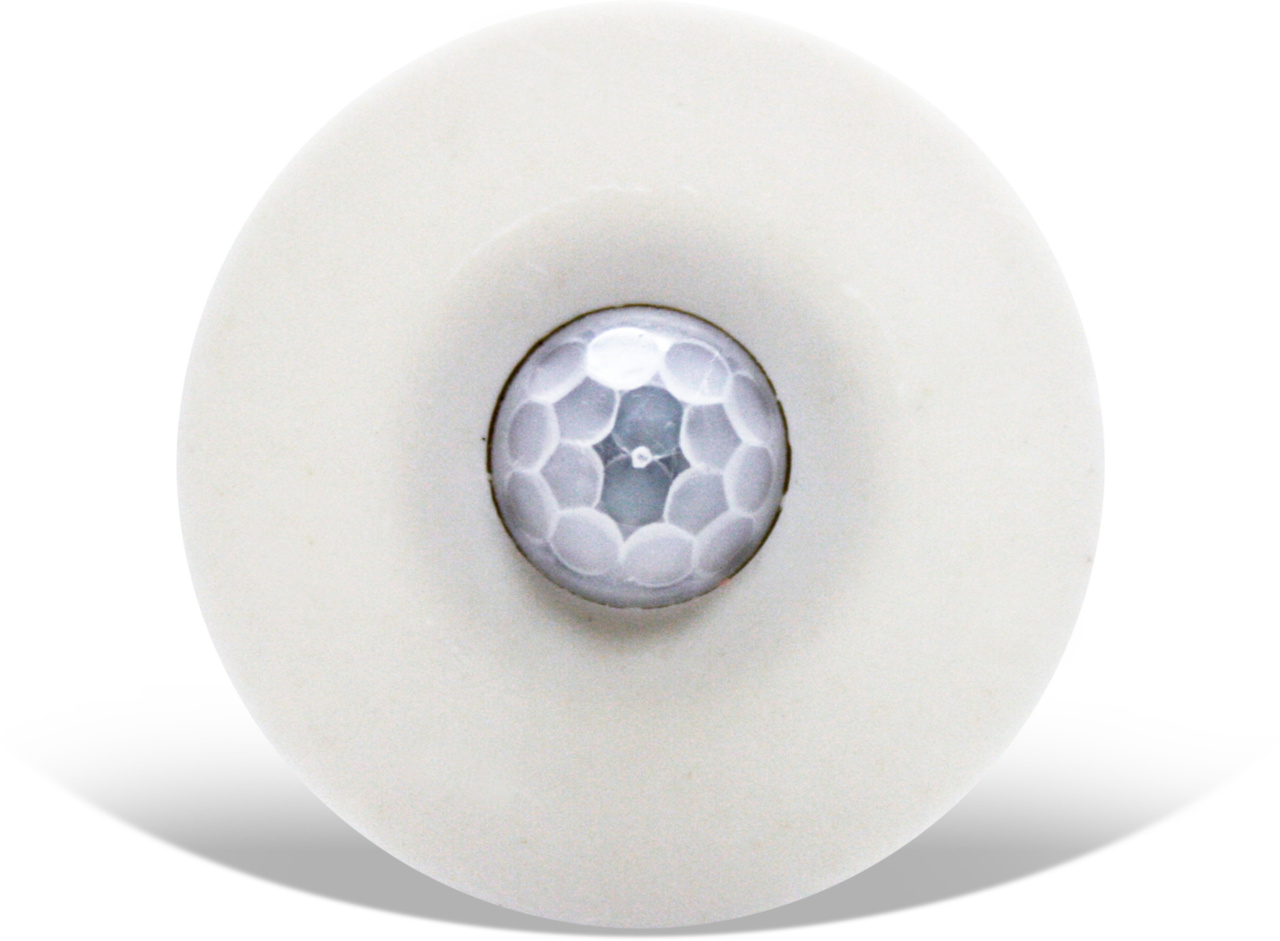

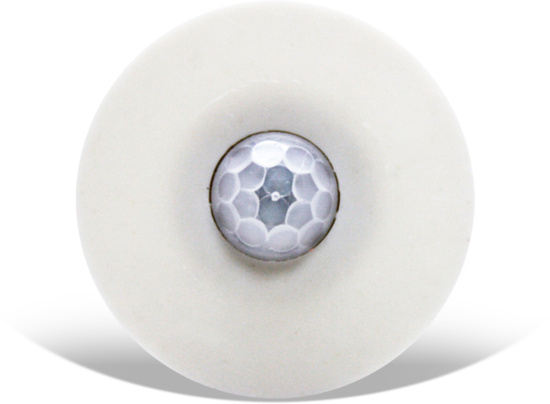

Mini Motion Sensor 360°-16

FL-MS-MINI-360-16 Vantage

The Vantage Mini Motion Sensor has 360° detection and a 16' or 33' radius, enhancing Vantage Systems by using motion to trigger tasks. Tasks are triggered simply by entering a room or through changes in ambient daylight.

Footprint 16 ft

16 ft
33 ft

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Low profile PIR sensor with compact dome lens
Excellent small motion detection capability
16 or 33 foot radius and 360 degree detection
Low operational power consumption
Mounts without screws
Can be wired to the auxiliary input on the back of any Vantage keypad station
Can be wired as a dry contact to different Vantage stations with inputs available
Installs up to 30m from the host station

Specifications

General Info

Color	White
Type	Sensor
Material	Plastic
Finish	Gloss
Application Sector	Commercial, Residential
Product Line	Vantage
Country Of Origin	Belgium
Features	Low Profile
Installation Location	Ceiling
Warranty Type	5-Year
UPC Number	804428057734

Dimensions

Product Depth US	0.86 in
Product Height US	1.18 in
Product Width US	1.18 in

Additional Information

Energy Savings

Technical Information

Current Draw	4 mA
On Function	Auto On
Wire Connection Type	Pigtail
Compatibility	InFusion, Qlink
Indoor/Outdoor	Indoor
Input Voltage	12 V
Location Rating	Dry
Mounting Type	Flush
Operating Temperature	-4° - 140°F (-20° - 60°C)
Operating Temperature Max	140 °F
Operating Temperature Min	-4 °F
Operating Humidity	5-95% RH (Non-Condensing)
Sensing Range	16.4 x 8.2 ft
Sensor Type	Occupancy
Sensor Technology	Passive Infrared (PIR)
Sensor Coverage	16 ft
Sensor Coverage Pattern	360 °
Sensor Mounting Height	6-10 ft
Storage Temperature	-4° - 140° F
