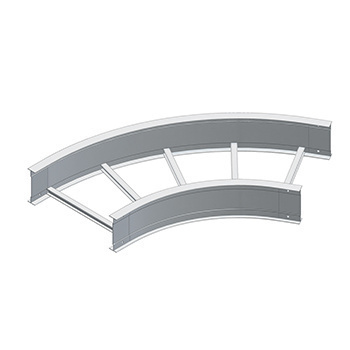

Stainless Steel Ladder Tray Horizontal Fittings
Stainless-Horiz-Fittings
Cablofil
Series
A series reflects connected component products for individual purchase.
PW Stainless Steel Ladder Tray can be used in corrosive and some highly corrosive environments. It has a C-channel side rail that is available in flange-in and flange-out configurations. Stainless steel ladder tray is available in type 304 and type 316 stainless. A wide-range of fittings, connectors and accessories are available.
filter series:
Please select to continue
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
PW Stainless Steel Ladder Tray can be used in corrosive and some highly corrosive environments. It has a C-channel side rail that is available in flange-in and flange-out configurations. Stainless steel ladder tray is available in type 304 and type 316 stainless. A wide-range of fittings, connectors and accessories are available.
- PW Stainless Steel cable tray provides the heavy duty support required for large power cables.
- Tray construction and markings are per the latest edition of NEMA Standards Publication BI 50015 (Previously VE1), CSA C22.2 No. 126
- Tray heights are available in 4'', 5'', 6'' and 7''.
Specifications
General Info
| Product Type | Horizontal Fitting | ||
| Material | Stainless Steel 304, Stainless Steel 316 | ||
| Application Sector | Industrial | ||
| Product Family / Series / Group | Stainless Steel Ladder Tray | ||
| Product Line | Cablofil |
Resources (16)
Cutsheet
Steel Ladder Cable Tray Horizontal Fitting - 30HB Horizontal Elbow
pdf
Steel Ladder Cable Tray Horizontal Fitting - 45HB Horizontal Elbow
pdf
Steel Ladder Cable Tray Horizontal Fitting - 60HB Horizontal Elbow
pdf
Steel Ladder Cable Tray Horizontal Fitting - 90HB Horizontal Elbow
pdf

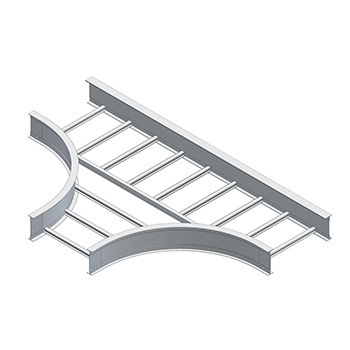

Steel Ladder Cable Tray Horizontal Fitting - Horizontal Tee
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Reducing Tee
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Expanding Tee
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Cross
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Reducing Cross
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Straight Reducer
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Left Hand Reducer
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Right Hand Reducer
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Wye Left Hand
pdf
Steel Ladder Cable Tray Horizontal Fitting - Horizontal Wye Right Hand
pdf
Show More
Brochure
Catalog
