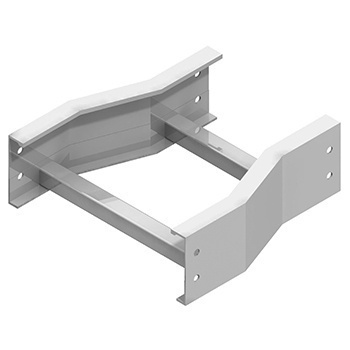

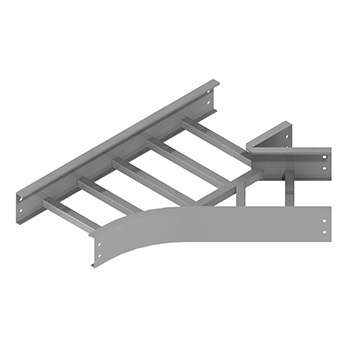

Steel Ladder Tray Horizontal Fittings

Steel-Horiz-Fittings Cablofil

PW Steel Ladder Tray is engineered for performance in industrial installations, particularly those involving large diameter cables and long span situations. PW Steel Ladder Tray can be used in outdoor and some corrosive environments. It has a C-channel side rail that is available in flange-in and flange-out configurations.

filter series: Please select to continue

View All Steel-Ladder

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

PW Steel cable tray provides the heavy duty support required for large power cables.
Tray construction and markings are per the latest edition of NEMA Standards Publication BI 50015 (Previously VE1), CSA C22.2 No. 126
Steel ladder tray is classified as an equipment grounding conductor per NEC 392.60.
Tray heights are available in 4'', 5'', 6'' and 7''.

Specifications

General Info

Type	Horizontal Fittings
Material	Carbon Steel
Finish	Hot Dipped Galvanized after Fabrication
Application Sector	Industrial
Product Line	Cablofil

Resources

Cutsheet

Steel Ladder Cable Tray Horizontal Fitting - 30HB Horizontal Elbow
